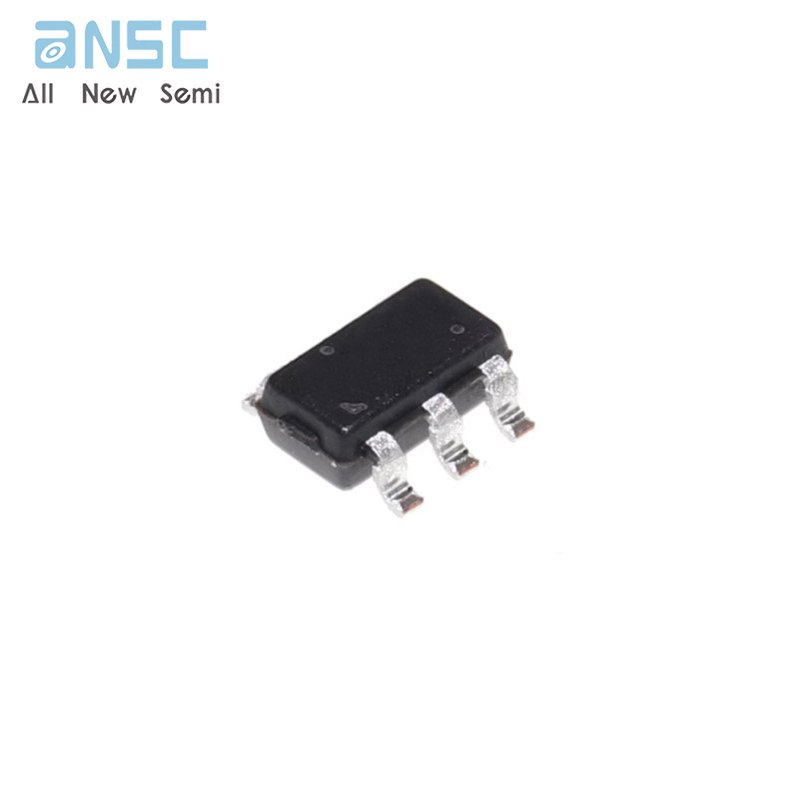

Hot-selling and scarce RT9013-12GB Ultra-Fast Without Bypass Capacitor CMOS LDO Regulator SOT23 spot stock

Product Descriptions

The RT9013 is a high-performance,500mA LDO regulator,offering extremely high PSRR and ultra-low dropout .Idealfor portable RF and wireless applications with demandingperformance and space requirements .

The RT9013 quiescent current as low as 25μA,furtherprolonging the battery life .The RT9013 also works withlow-ESR ceramic capacitors,reducing the amount of boardspace necessary for power applications,critical in handheld wireless devices .

The RT9013 consumes typical 0.7μA in shutdown modeand has fast turn-on time less than 40μs.The other featuresinclude ultra-low dropout voltage,high output accuracy,current limiting protection,and high ripple rejection ratio .Available in the SOT-23-5,SC-70-5 and WDFN-6L 2x2package .

Product Features

Wide Operating Voltage Ranges : 2.2V to 5.5V

Low Dropout :250mV at 500mA

Ultra-Low-Noise for RF Application

Ultra-Fast Response in Line/Load Transient

Current Limiting Protection

Thermal Shutdown Protection

High Power Supply Rejection Ratio

Output Only 1μF Capacitor Required for Stability

TTL-Logic-Controlled Shutdown Input

RoHS Compliant and 100% Lead (Pb)-Free

Product Applications

CDMA/GSM Cellular Handsets

Portable Information Appliances

Laptop,Palmtops,Notebook Computers

Hand-Held Instruments

Mini PCI &PCI-Express Cards

PCMCIA &New Cards

Product Specification

Product Photos

For more product information, please download the PDF
