Product Descriptions

The MCP23017-E/SO is a 16-bit I/O expander from Microchip Technology, designed to provide a simple and cost-effective way to expand the number of inputs and outputs in a microcontroller-based system. This I2C-based I/O expander is suitable for a wide range of applications, including industrial control systems, automotive electronics, and consumer electronics.

Product Features

· 16-bit I/O expander with 16 inputs and 16 outputs

· I2C interface with a clock frequency of 1.7MHz

· Power-on reset (POR) feature ensures a safe reset of the device

· Interrupt output for notification of changes in the I/O state

· Push-pull output type with a maximum output current of 25mA

· Operating temperature range of -40°C to 125°C

· Lead-free and RoHS3 compliant

· Available in a 28-pin SOIC package with a height of 2.65mm and a width of 7.5mm

Product Applications

· Industrial control systems: The MCP23017-E/SO can be used to expand the number of inputs and outputs in industrial control systems, such as programmable logic controllers (PLCs) and remote input/output (I/O) modules.

· Automotive electronics: The device can be used in automotive applications, such as dashboard displays and infotainment systems, to provide additional I/O functionality.

· Consumer electronics: The MCP23017-E/SO can be used in consumer electronics, such as set-top boxes and gaming consoles, to provide additional I/O functionality and expand the capabilities of the microcontroller.

Embedded Modules

· The MCP23017-E/SO is used in various embedded modules, including:

· Microcontroller-based development boards

· Industrial control systems

· Automotive electronics modules

· Consumer electronics modules

Specifications

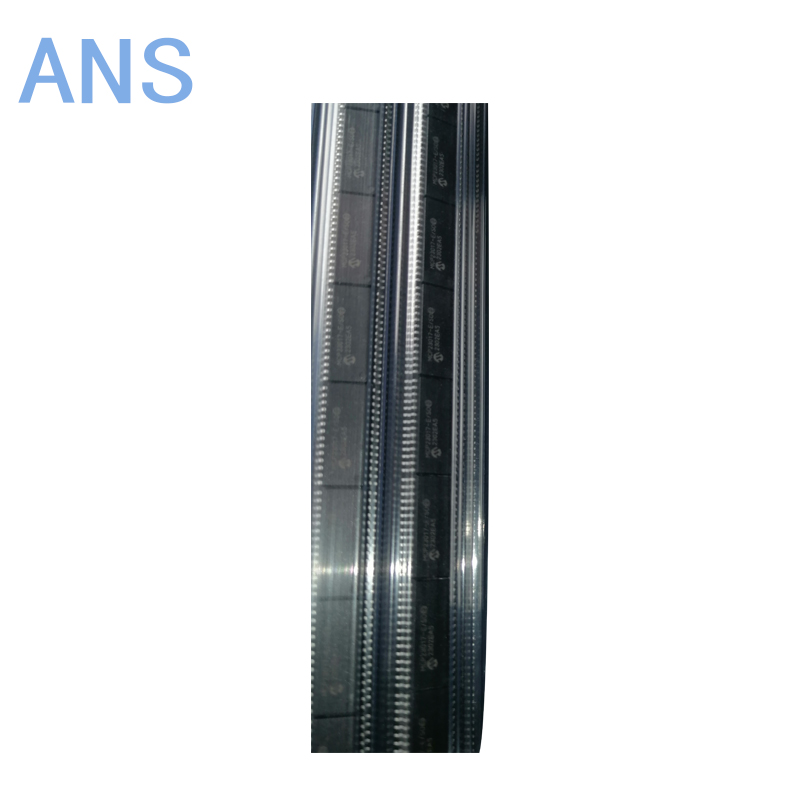

Actual product photos
