Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale original REF02EZ IC Series Voltage Reference IC Fixed 5V V ±0.3% 10 mA 8-CERDIP
Manufacturer Product Number
REF02EZ
Description
REF02EZ IC VREF SERIES 0.3% 8CERDIP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

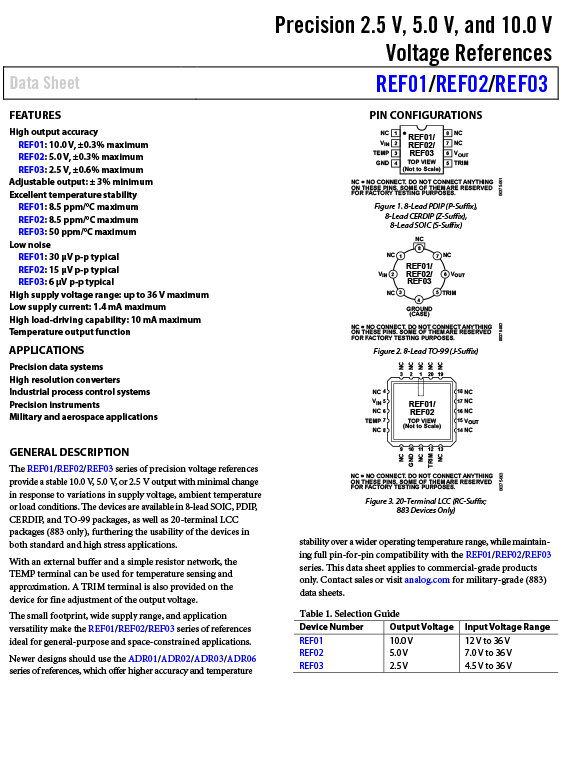

| GENERAL DESCRIPTION The REF02 precision voltage reference providesa stable5 V output that can be adjustedover a ±6% range with minimal effect on temperature stability. Single-supply operation over an input voltage range of7 V to40 V,low current drain of1 mA, and excellent temperature stability are achieved with an improved band gap design. Low cost, low noise,and low power make the REF02 anexcellent choice when ever a stable voltage reference is required. Applications include DACs and ADCs, portable instrumentation, and digital volt meters. The versatility ofthe REF02 is enhanced byits use as a monolithic temperature transducer. For new designs, refer to the ADR02. FEATURES 5 V output: ±0.3% maximum Temperature voltage output: 1.96 mV/°C Adjustmentrange: ±3%minimum Excellent temperature stability: 8.5 ppm/°C maximum Low noise: 15µV p-p maximum Low supply current: 1.4 mA maximum Wide input voltage range: 7 V to 40 V Highload-drivingcapability: 10 mA No external components Short-circuit proof |
Product Description
| Type | Description |
| ANSC PART# | ANSC - REF02EZ |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Manufacturer | Original |
| Series | REF02 |
| Packaging | Tube |
| Part Status | Discontinued at Digi-Key |
| Reference Type | Series |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 5V |
| Current - Output | 10 mA |
| Tolerance | ±0.3% |
| Temperature Coefficient | 8.5ppm/°C |
| Noise - 0.1Hz to 10Hz | 15µVp-p |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | 8V ~ 36V |
| Current - Supply | 1.4mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP |
| Base Product Number | REF02 |

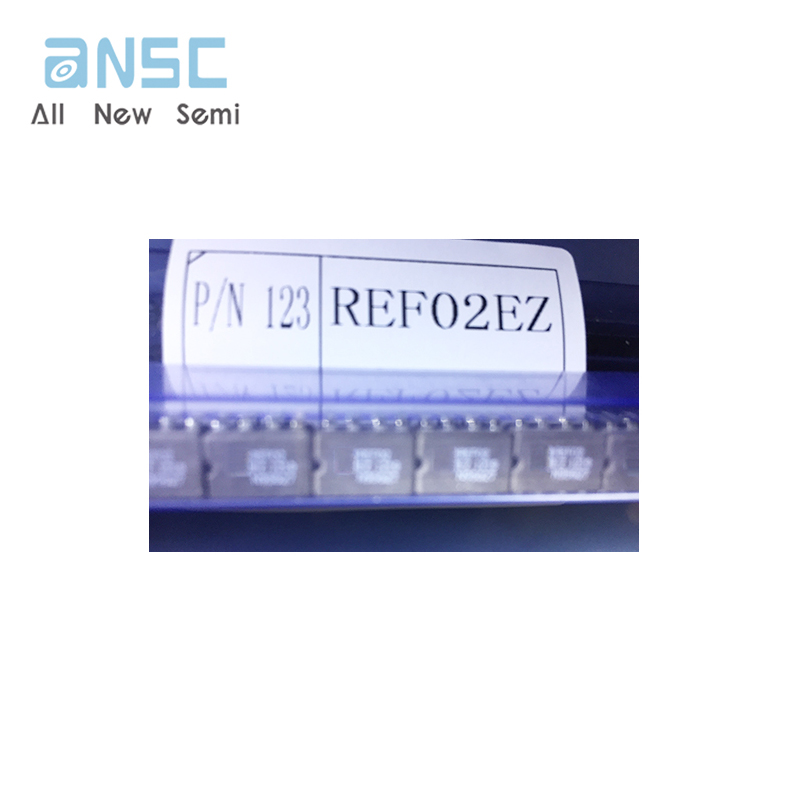

Product Photos

Product datasheet
For more information, please download
