Hot-selling and scarce LP2980IM5-5-0 Micropower 50 mA Ultra Low-Dropout Regulator In SOT-23 Package spot stock
Manufacturer Product Number
LP2980IM5-5-0
Description
LP2980IM5-5-0 Micropower 50 mA Ultra Low-Dropout Regulator In SOT-23 Package spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
■ Ultra low dropout voltage
■ Output voltage accuracy 0.5% (A Grade)
■ Guaranteed 50 mA output current
■ Requires only 1 μF external capacitance
■ < 1 μA quiescent current when shutdown
■ Low ground pin current at all load currents
■ High peak current capability (150 mA typical)
■ Wide supply voltage range (16V max)
■ Fast dynamic response to line and load
■ Low ZOUT over wide frequency range
■ Over-Temperature and Over-Current protection
■ −40°C to +125°C junction temperature range
Product Applications
■ Cellular Phone
■ Palmtop/Laptop Computer
■ Personal Digital Assistant (PDA)
■ Camcorder, Personal Stereo, Camera
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LP2980IM5-5.0 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 0.22V @ 50mA |
| Current - Output | 50mA |
| Current - Quiescent (Iq) | 95 µA |
| Current - Supply (Max) | 1.2 mA |
| PSRR | 63dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LP2980 |

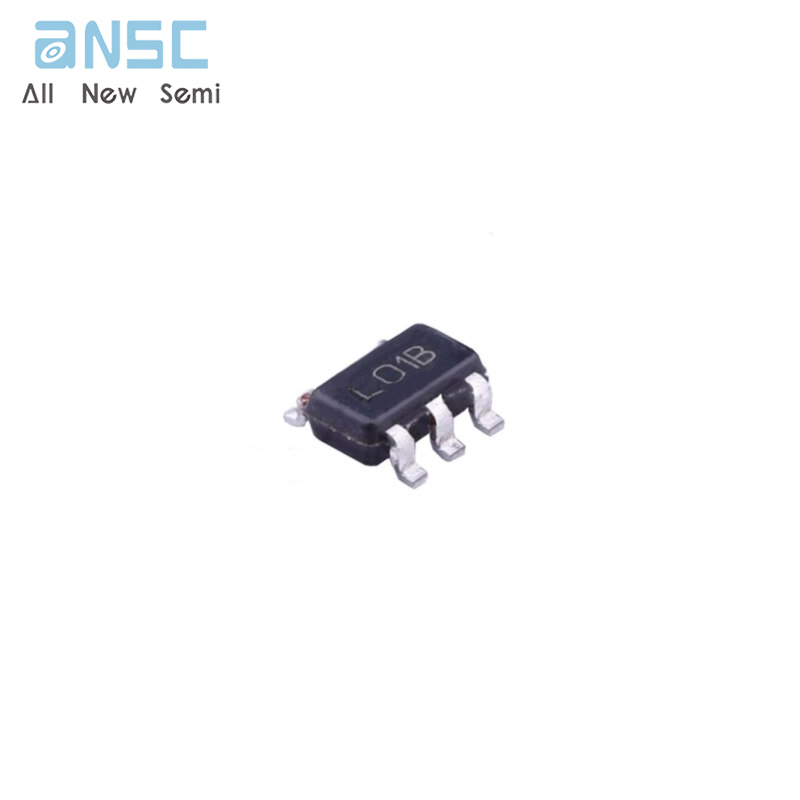

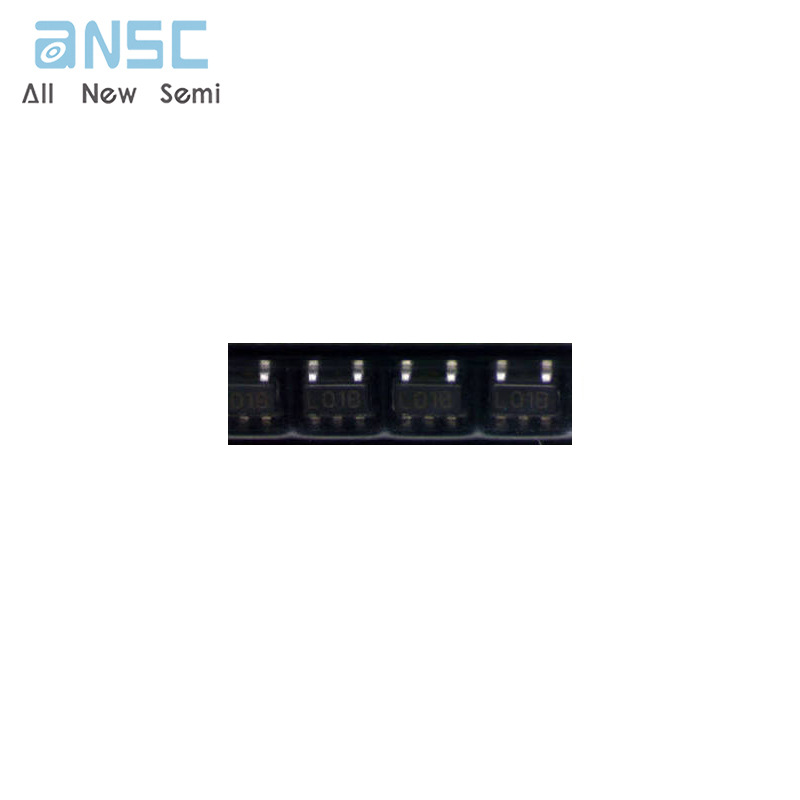

Product Photos
For more product information, please download the PDF
