Hot-selling and scarce FAN7382MX High-Side and Low-Side Gate Driver SOP8 spot stock

Product Descriptions

The FAN7382, a monolithic high and low side gate−drive IC, can drive MOSFETs and IGBTs that operate up to +600 V. onsemi’s high−voltage process and commonmode noise canceling technique provides stable operation of the high−side driver under high−dv/dt noise circumstances.An advanced level−shift circuit allows high−side gate driver operation up to _VS = −9.8 V (typical) for _VBS = 15 V. The input logic level is compatible with standard TTL−series logic gates. UVLO circuits for both channels prevent malfunction when VCC or VBS is lower than the specified threshold voltage. Output drivers typically source/sink 350 mA/650 mA, respectively,which is suitable  for  fluorescent  lamp  ballasts,  PDP  scan  drivers,  motor controls,etc.

Product Features

• Floating Channels Designed for Bootstrap Operation to +600 V

• Typically 350 mA/650 mA Sourcing/Sinking Current Driving Capability for Both Channels

• Common−Mode dv/dt Noise Canceling Circuit

• Extended Allowable Negative VS Swing to −9.8 V for Signal Propagation at V CC =VBS = 15 V

• V CC &VBS Supply Range from 10 V to 20 V

• UVLO Functions for Both Channels

• TTL Compatible Input Logic Threshold Levels

• Matched Propagation Delay Below 50 ns

• Output In−phase with Input Signal

• These are Pb−Free Devices

Product Specification

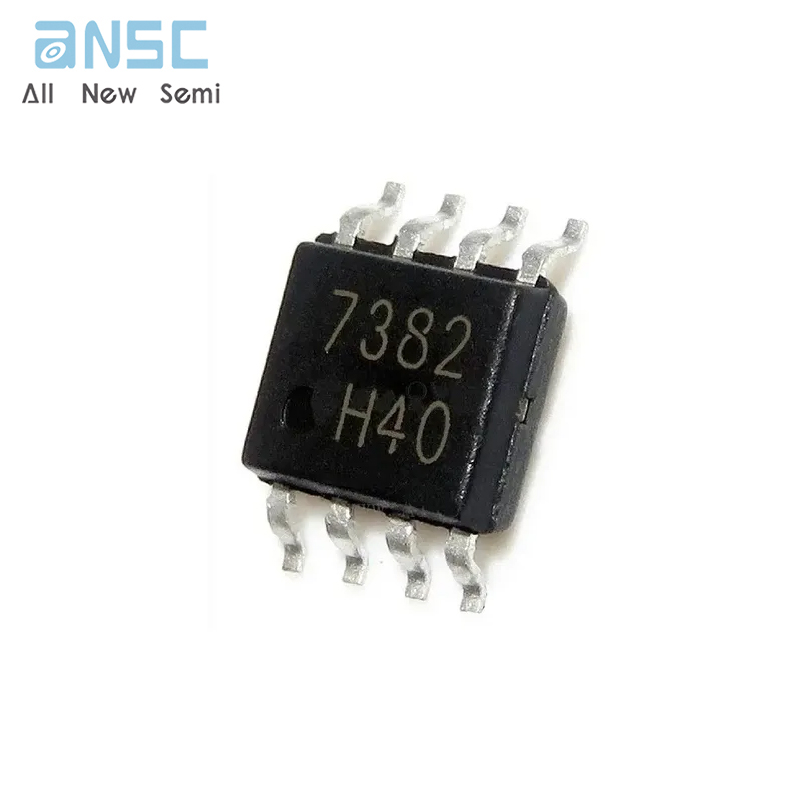

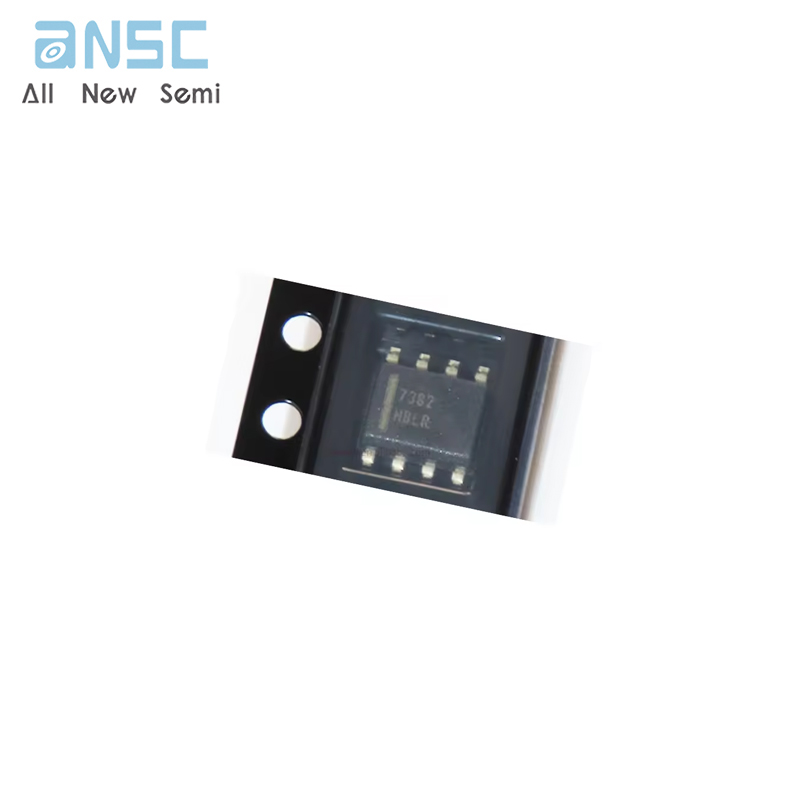

Product Photos

For more product information, please download the PDF
