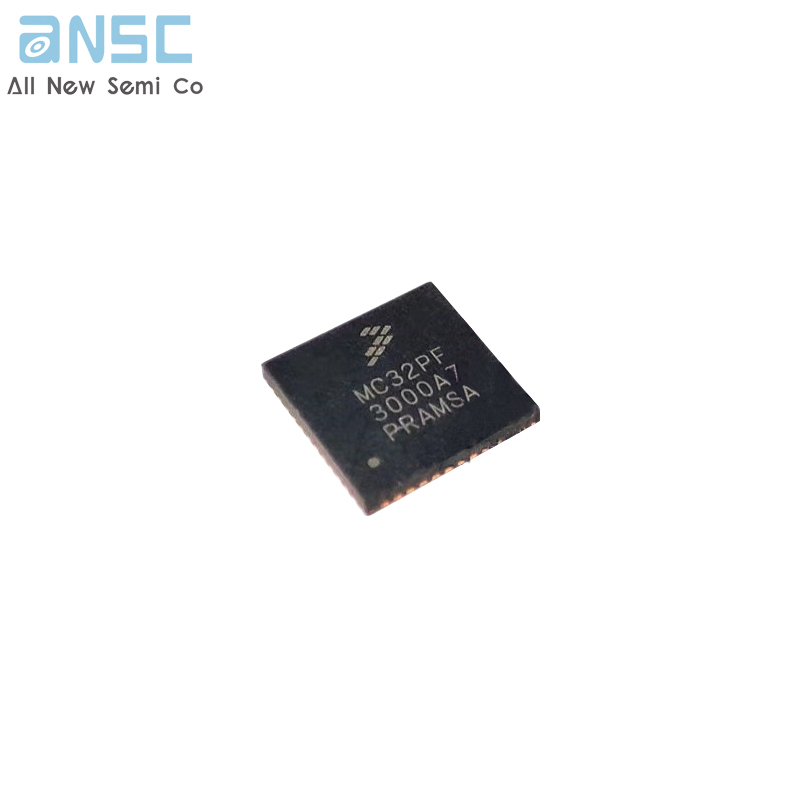

PMIC Solution 2.8V/3.7V to 4.5V/5.5V 48-Pin QFN EP Tray Integrated circuit IC MC32PF3000A7EP

Product Descriptions

The PF3000 is a power management integrated circuit (PMIC) designed specifically for use with the NXP i.MX 7 and i.MX 6SL/SX/UL application processors. With up to four buck converters, six linear regulators, RTC supply, and coin-cell charger, the PF3000 can provide power for a complete system, including applications processors, memory, and system peripherals. This device is powered by SMARTMOS technology.

Product Features

• Four adjustable high efficiency buck regulators: 1.75 A, 1.5 A, 1.25 A, 1.0 A

• Selectable modes: PWM, PFM, APS

• 5.0 V, 600 mA boost regulator with PFM or auto mode

• Six adjustable general purpose linear regulators

• Input voltage range: 2.8 V to 4.5 V or 3.7 V to 5.5 V

• OTP (One Time Programmable) memory for device configuration

• Programmable start-up sequence and timing

• Selectable output voltage, frequency, soft start

• I2C control

• Coin cell charger and always ON RTC supply

• DDR reference voltage

• -40 °C to +125 °C operating junction temperature

Product Applications

• Tablets

• eReaders

• Wearables

• POS terminals

• Industrial control

• Medical monitoring

• Home automation

• Home security/energy management
