Hot-selling and scarce L6598D013TR High voltage resonant controller IC SOP16 spot stock

Product Descriptions

The L6598 device is manufactured with the BCD™offline technology,able to ensure voltage ratings up to 600 V,making it perfectly suited for AC/DC adapters and wherever a resonant topology can be beneficial.The device is intended to drive two power MOSFETs,in the classical half bridge topology.A dedicated timing section allows the designer to set soft-start time,soft-start and minimum frequency.An error amplifier,together with the two enable inputs,are made available.In addition,the integrated bootstrap diode and the Zener clamping on low voltage supply,reduces to a minimum the external parts needed in the applications.

Product Features

 High voltage rail up to 600 V

 dV/dt immunity ±50 V/ns in full temperature range

 Driver current capability:250 mA source 450 mA sink

 Switching times 80/40 ns rise/fall with 1 nF load

 CMOS shutdown input

 Undervoltage lockout

 Soft-start frequency shifting timing

 Sense op amp for closed loop control or protection features

 High accuracy current controlled oscillator

 Integrated bootstrap diode

 Clamping on Vs

 Available in DIP16 and SO16 packages

​

Product Specification

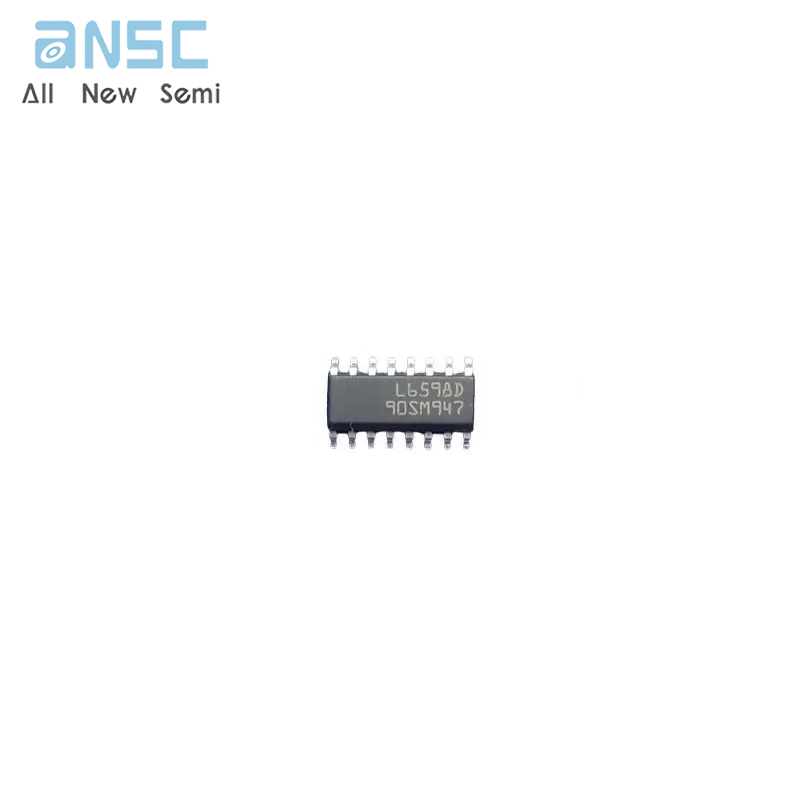

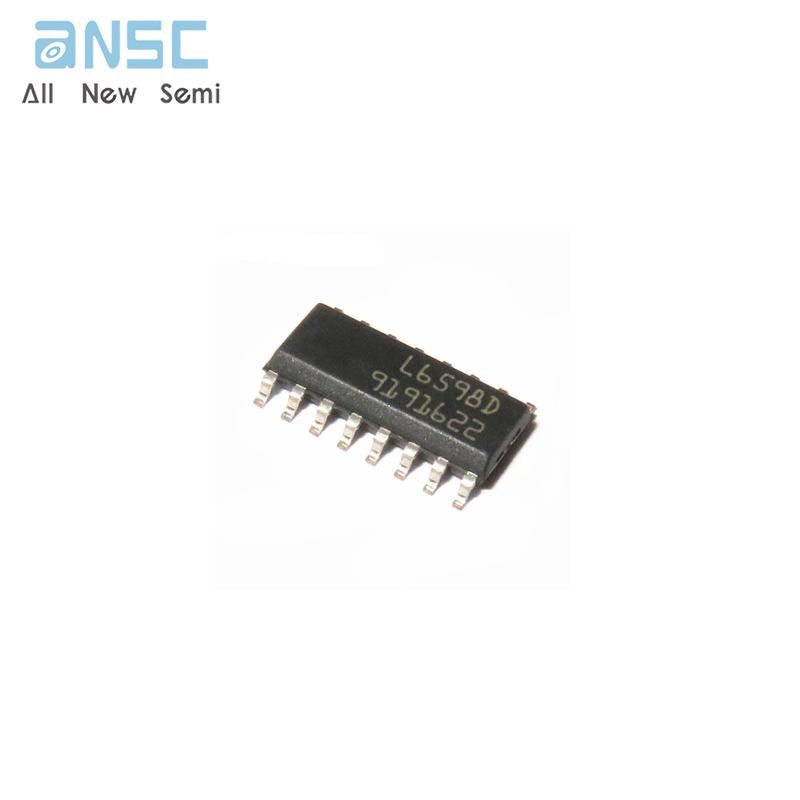

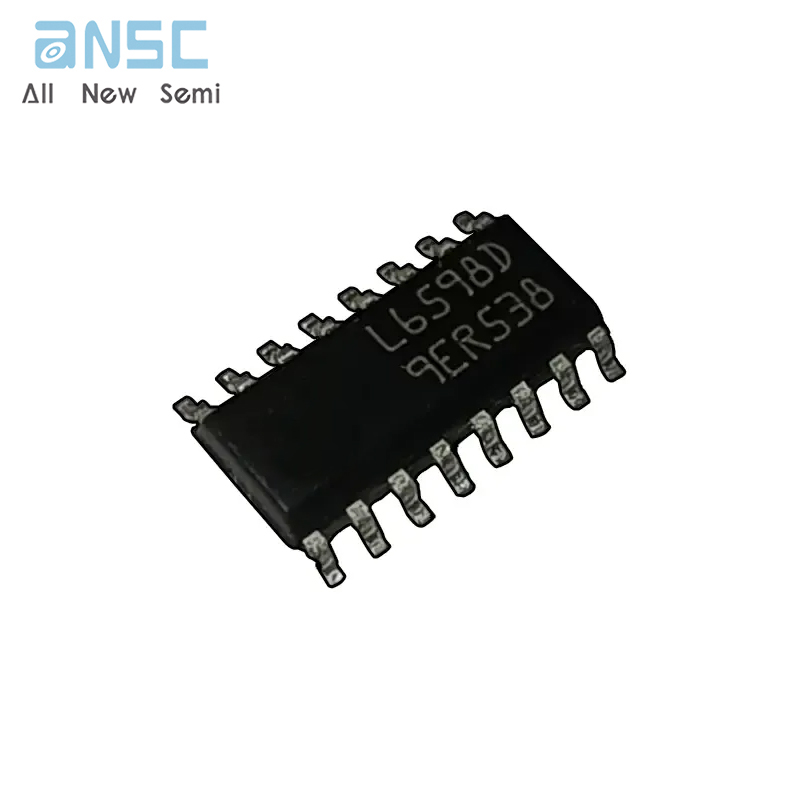

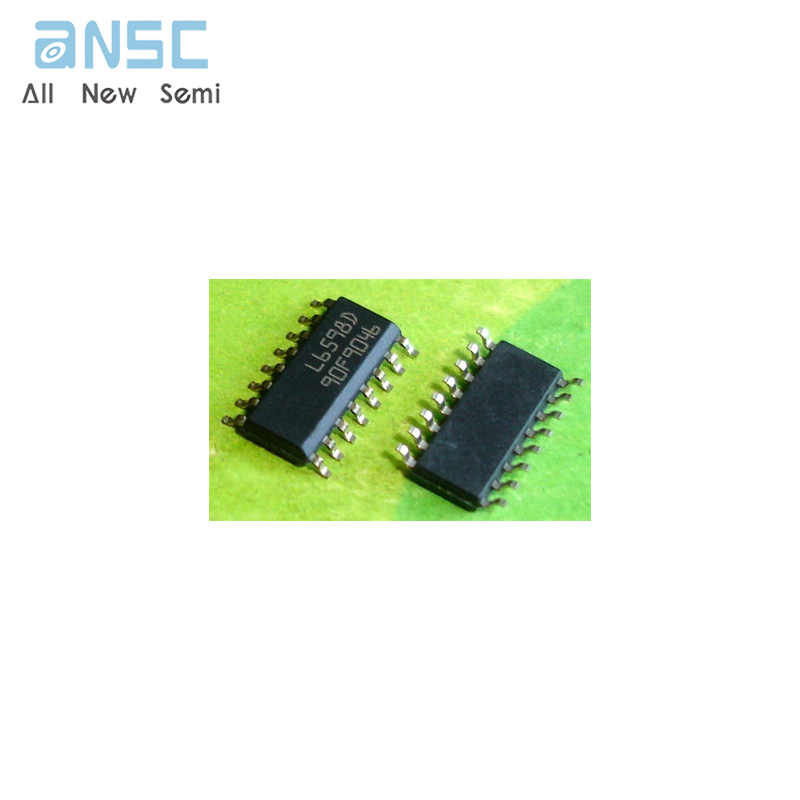

Product Photo

For more product information, please download the PDF
