Hot-selling and scarce LP2986AIMM-5.0 200-mA Ultra-Low-Dropout Fixed or Adjustable Voltage Regulator MSOP8 spot stock
Manufacturer Product Number
LP2986AIMM-5.0
Description
LP2986AIMM-5.0 200-mA Ultra-Low-Dropout Fixed or Adjustable Voltage Regulator MSOP8 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Wide Supply Voltage Range (16 V Maximum)
• Ultra-Low-Dropout Voltage
• 0.5% Output Voltage Accuracy (A Grade)
• Ensured 200-mA Output Current
• < 1-μA Quiescent Current when Shutdown
• Low GROUND Pin Current at All Loads
• High Peak Current Capability (400 mA Typical)
• Overtemperature/Overcurrent Protection
• −40°C to +125°C Junction Temperature Range
Product Applications
• Cellular Phones
• Palmtop/Laptop Computers
• Camcorders, Personal Stereos, Cameras
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LP2986AIMM-5.0 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 0.35V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 3.7 mA |
| PSRR | 65dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | LP2986 |

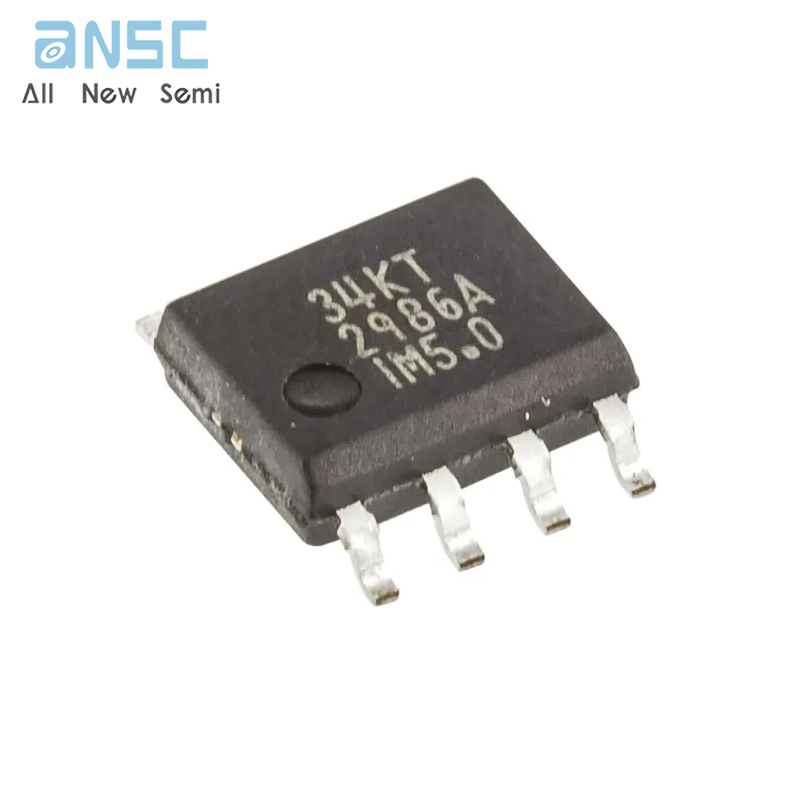

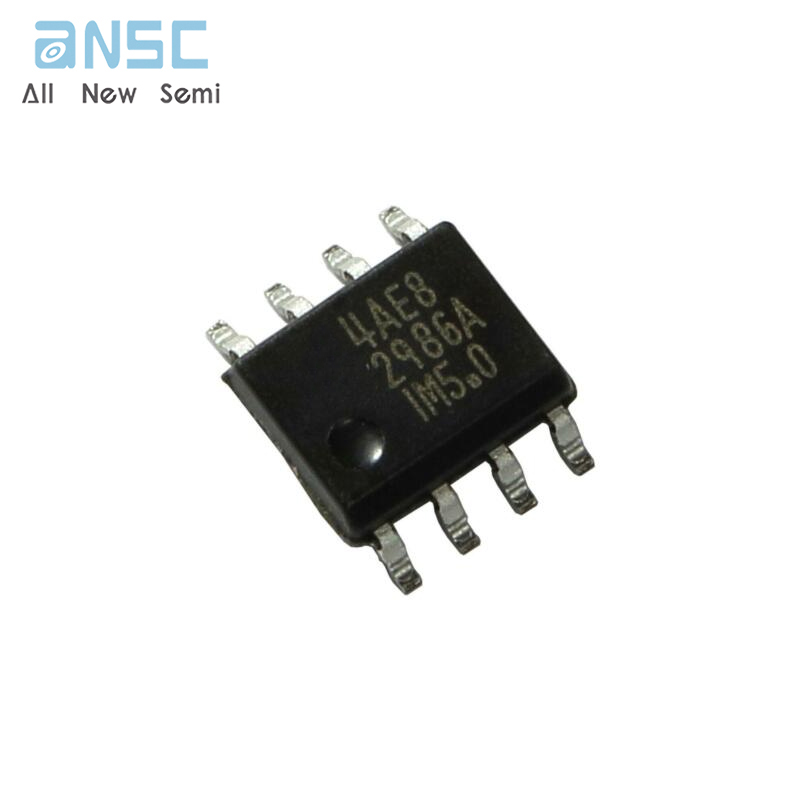

Product Photos
For more product information, please download the PDF
