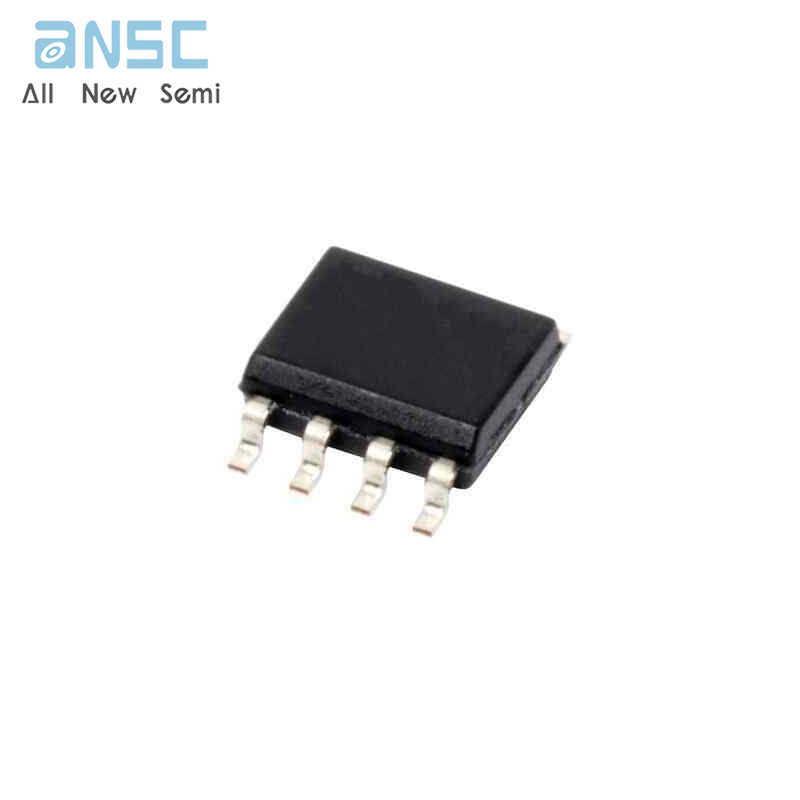

ADR443BRZ Ultralow Noise, LDO XFET Voltage References with Current Sink and Source SOP8 spot stock

Product Descriptions

The ADR440/ADR441/ADR443/ADR444/ADR445¹ series is a family of XFET® voltage references featuring ultralow noise, high accuracy, and low temperature drift performance. Using Analog Devices, Inc., temperature drift curvature correction and extra implanted junction FET (XFET) technology,voltage change vs. temperature nonlinearity in the ADR440/ADR441/ ADR443/ADR444/ADR445 is greatly minimized.

The XFET references offer better noise performance than buried Zener references, and XFET references operate offlow supply voltage headroom (500 mV). This combination of features makes the ADR440/ADR441/ADR443/ADR444/ ADR445 family ideally suited for precision signal conversion applications in high end data acquisition systems, optical networks, and medical applications.

The ADR440/ADR441/ADR443/ADR444/ADR445 family has the capability to source up to 10 mA of output current and sink up to −5 mA. It also comes with a trim terminal to adjust the output voltage over a 0.5% range without compromising performance.

Product Features

Ultralow noise (0.1 Hz to 10 Hz)

ADR440: 1 µV p-p

ADR441: 1.2 µV p-p

ADR443: 1.4 µV p-p

ADR444: 1.8 µV p-p

ADR445: 2.25 µV p-p

Superb temperature coefficient

A grade: 10 ppm/°C

B grade: 3 ppm/°C

Low dropout operation (supply voltage headroom): 500 mV

Input range: (VOUT + 500 mV) to 18 V

High output source and sink current

+10 mA and −5 mA, respectively

Wide temperature range: −40°C to +125°C

Product Applications

Precision data acquisition systems

High resolution data converters

Battery-powered instrumentation

Portable medical instruments

Industrial process control systems

Precision instruments

Optical control circuits

Product Specification

Product Photos

For more product information, please download the PDF
