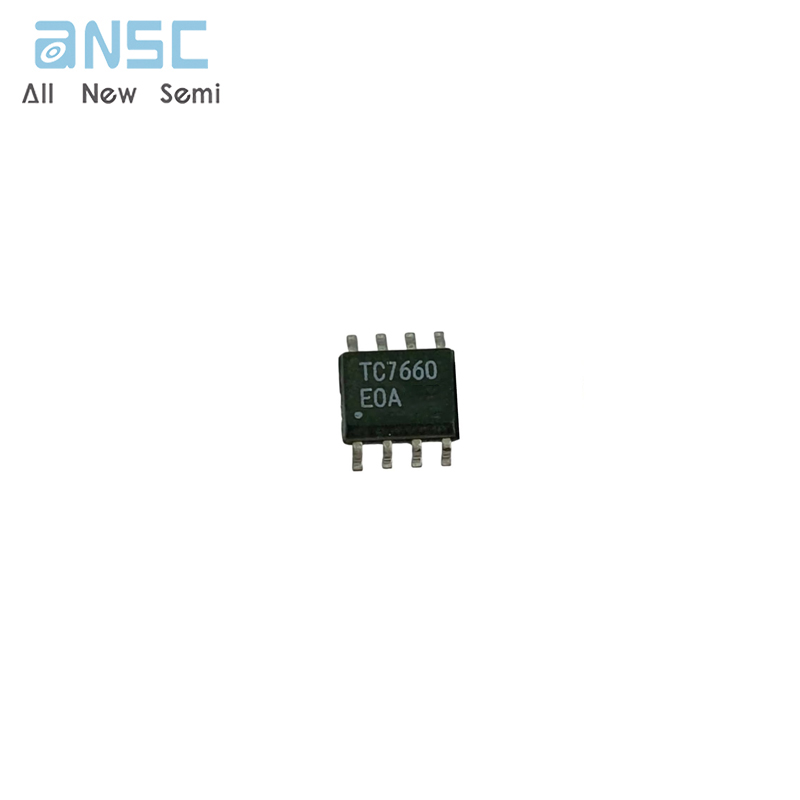

Hot-selling and scarce TC7660EOA Charge Pump DC-to-DC Voltage Converter SOP8 spot stock

Product Descriptions

The TC7660 device is a pin-compatible replacement for the industry standard 7660 charge pump voltage converter.It converts a +1 .5V to +10V input to a corresponding -1.5V to -10V output using only two low-cost capacitors,eliminating inductors and their associated cost,size and electromagnetic interference (EMI).

The on-board oscillator operates at a nominal frequency of 10 kHz.Operation below 10 kHz (for lower supply current applications)is possible by connecting an external capacitor from OSC to ground.

The TC7660 is available in 8-Pin PDIP,8-Pin Small Outline (SOIC) and 8-Pin CERDIP packages in commercial and extended temperature ranges.

Product Features

•Wide Input Voltage Range:+1 .5V to +10V

• Efficient Voltage Conversion (99 .9%,typ)

• Excellent Power Efficiency (98%,typ)

• Low Power Consumption:80 µA (typ)@VIN =5V

• Low Cost and Easy to Use

- Only Two External Capacitors Required

•Available in 8-Pin Small Outline (SOIC),8-Pin PDIP and 8-Pin CERDIP Packages

• Improved ESD Protection (3 kV HBM)

• No External Diode Required for High-Voltage Operation

Product Applications

• RS-232 Negative Power Supply

• Simple Conversion of +5V to ±5V Supplies

•Voltage Multiplication V OUT =±n V+

• Negative Supplies for Data Acquisition Systems and Instrumentation

Product Specification

Product Photos

For more product information, please download the PDF
