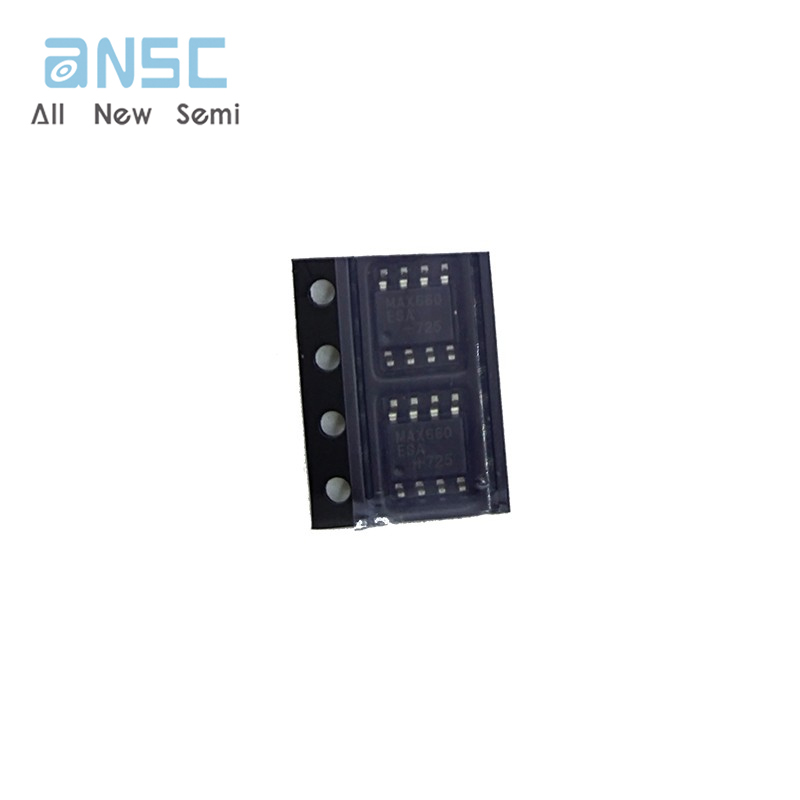

Hot sale Original MAX660ESA IC REG CHRG PUMP INV 100MA 8SOIC Charge Pump Switching Regulator IC Positive
Manufacturer Product Number
MAX660ESA
Description
MAX660ESA IC REG CHRG PUMP INV 100MA 8SOIC Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin 1 Output 100mA 8-SOIC (0.154", 3.90mm Width)
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

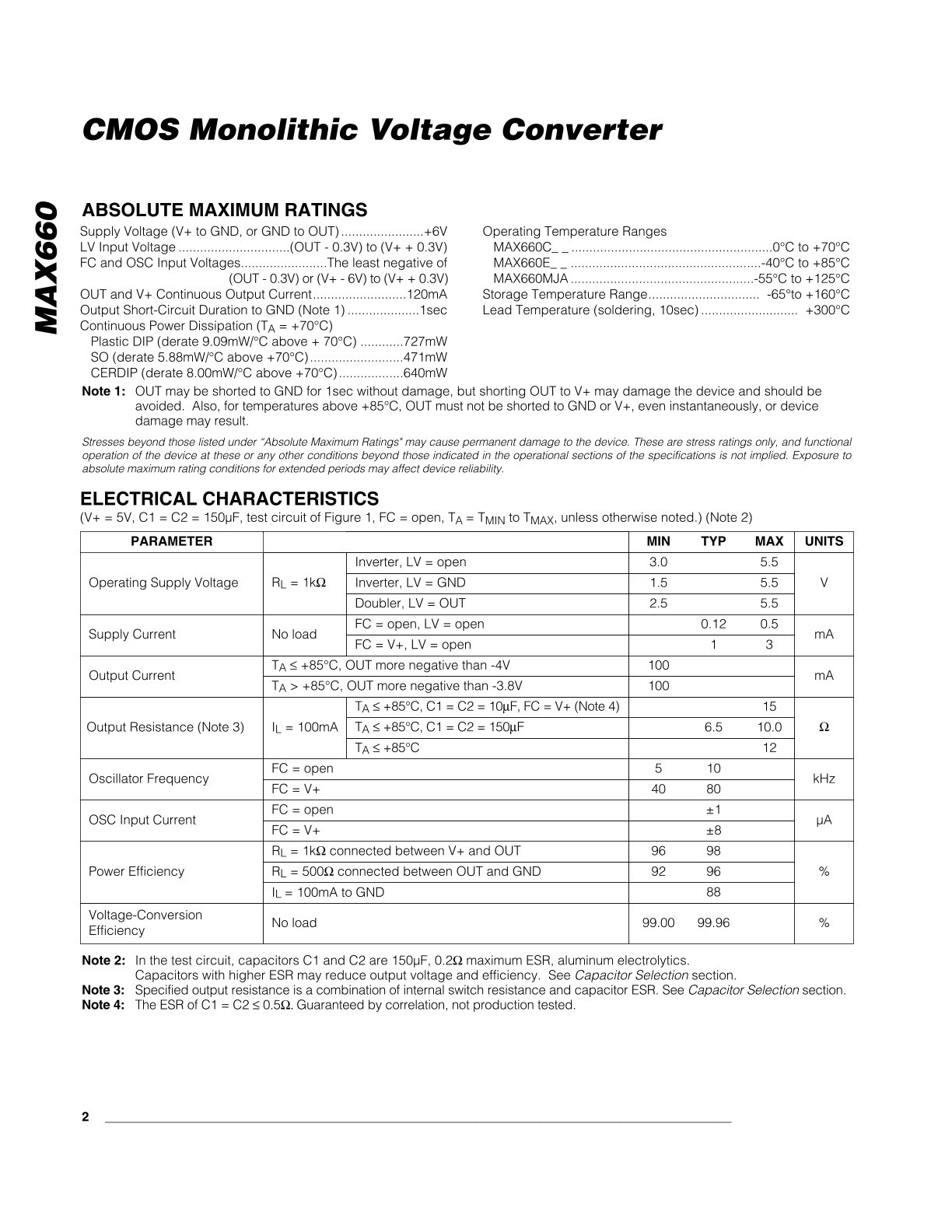

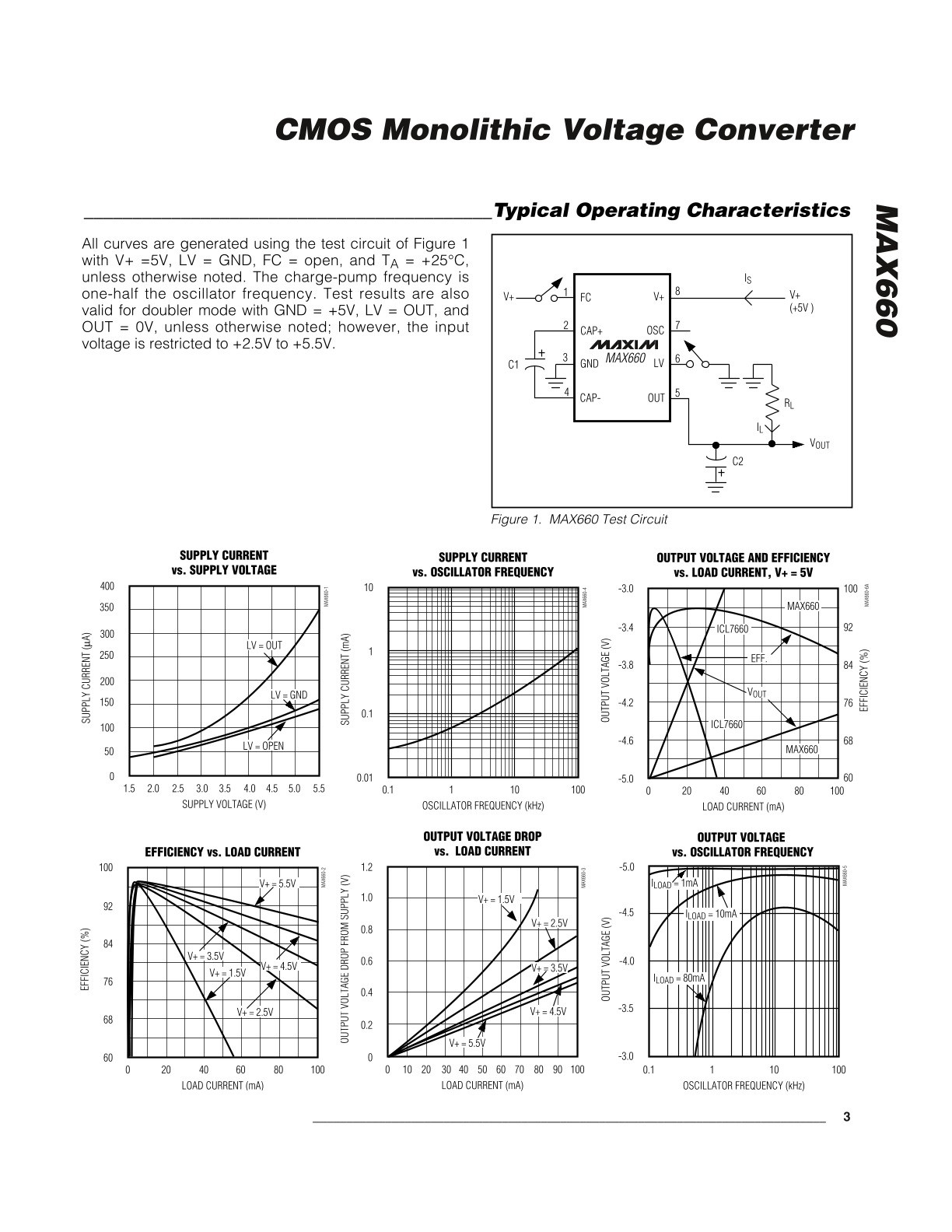

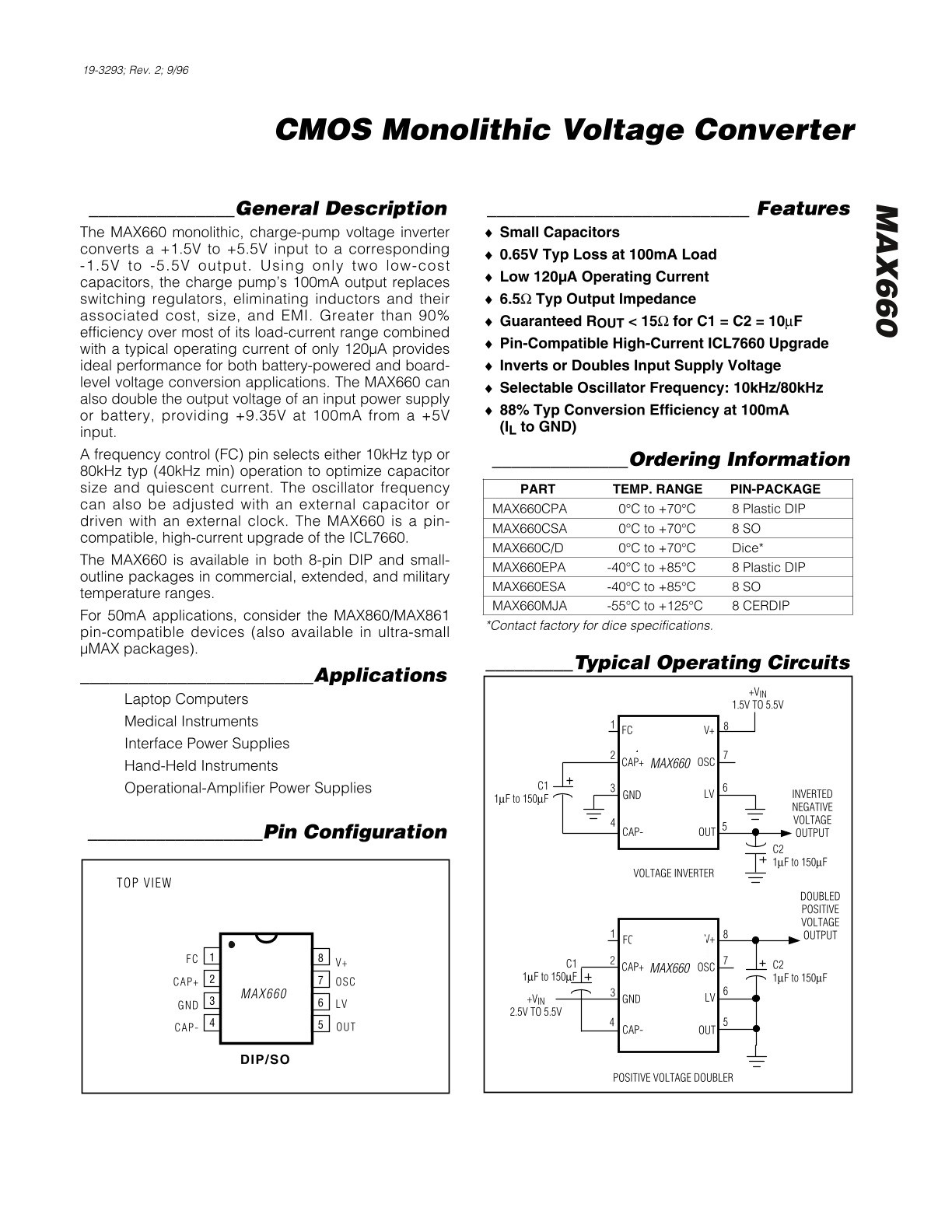

| General Description The MAX660 monolithic, charge-pump voltage inverter converts a +1.5V to +5.5V input to a corresponding -1.5V to -5.5V output. Using only two low-cost capacitors, the charge pump’s 100mA output replaces switching regulators, eliminating inductors and their associated cost, size, and EMI. Greater than 90% efficiency over most of its load-current range combined with a typical operating current of only 120µA provides ideal performance for both battery-powered and board level voltage conversion applications. The MAX660 can also double the output voltage of an input power supply or battery, providing +9.35V at 100mA from a +5V input. Features ● Small Capacitors ● 0.65V Typ Loss at 100mA Load ● Low 120µA Operating Current ● 6.5Ω Typ Output Impedance ● Guaranteed ROUT < 15W for C1 = C2 = 10mF ● Pin-Compatible High-Current ICL7660 Upgrade ● Inverts or Doubles Input Supply Voltage ● Selectable Oscillator Frequency: 10kHz/80kHz ● 88% Typ Conversion Efficiency at 100mA (IL to GND) |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - MAX660ESA |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Function | Ratiometric |
| Output Configuration | Positive or Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin |
| Voltage - Output (Max) | - |
| Current - Output | 100mA |
| Frequency - Switching | 10kHz, 80kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MAX660 |
