Hot-selling and scarce MIC69302WR Linear Voltage Regulator IC Positive Adjustable 1 Output 3A 5-SPAK spot stock

Product Descriptions

The  MIC69301,  MIC69302,  MIC69303  are  the  3A output current members of the MIC69xxx family of high current, low voltage regulators that support currents of1A,  1.5A, 3A,  and 5A. This family operates from  a single low voltage supply and offers high precision and ultra   low   dropout   of   500 mV   under  worst   case conditions.

The MIC69301/2/3 operate from an input voltage of1.65V to 5.5V. It is designed to drive digital circuits that require low voltage at high currents (i.e., PLDs, DSP, microcontroller, etc.). These regulators are available in adjustable and fixed output voltages. The adjustable version can support output voltages down to 0.5V.

The µCap design of the MIC69301/2/3 is optimized for stability  with  low  value,  low-ESR  ceramic  output capacitors.

Features   of   the   MIC69301/2/3   include   thermal shutdown and current limit protection.Logic enable and error flag pins are also available.

The MIC69301/2/3 are offered in TO-263, S-PAK, and the ePad SOIC-8  packages. The  MIC69303  is also available in a 12-lead 4 mm x 4 mm DFN package.All packages  have  an  operating  temperature  range  of–40°C to +125°C.

Product Features

•  Input Voltage Range VIN: +1.65V to +5.5V

•  Maximum Dropout (VIN –V OUT) of 500 mV over Temperature

•  Adjustable Output Voltage Down to 0.5V

•  Stable with 10 µF Ceramic Output Capacitor

•  Excellent Line and Load Regulation

•  Logic Controlled Shutdown

•  Thermal Shutdown and Current-Limit Protection

•  Error Flag Output

•  5-Lead TO-263 Package

•  5-Lead S-PAK Package

•  ePad SOIC-8 Package

•  12-Lead 4 mm x 4 mm DFN Package (MIC69303 Only)

•  –40°C to +125°C Junction Temperature Range

Product Applications

•  Point-of-Load Applications

•  Industrial Power

•  Sensitive RF Applications

Product Specification

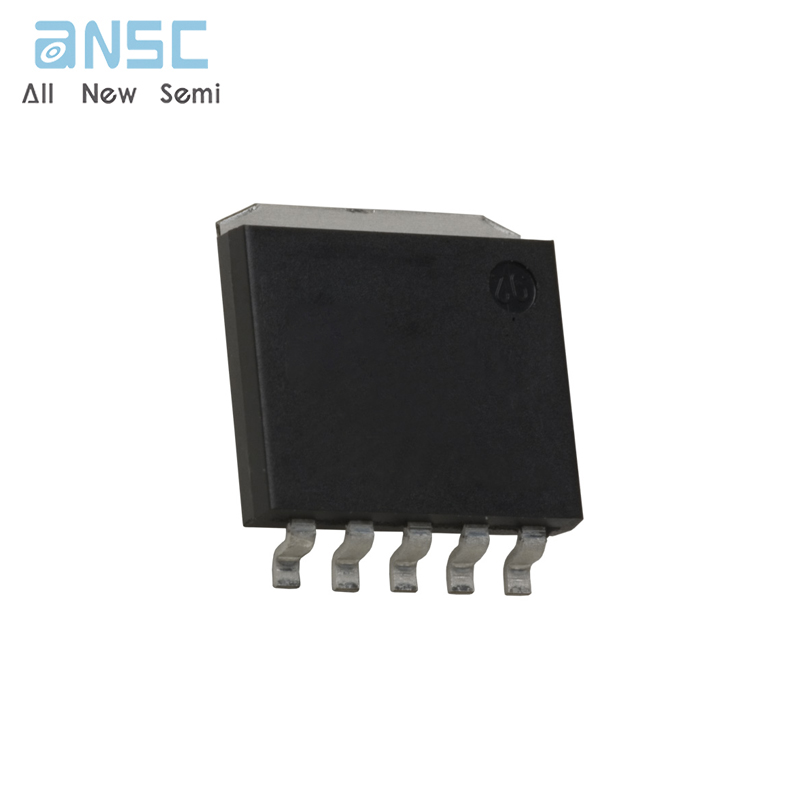

Product Photos

For more product information, please download the PDF
