Hot sale Original AZ1117EH-3.3TRG1 PMIC IC REG LINEAR 3.3V 1A Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3
Manufacturer Product Number
AZ1117EH-3.3TRG1
Description

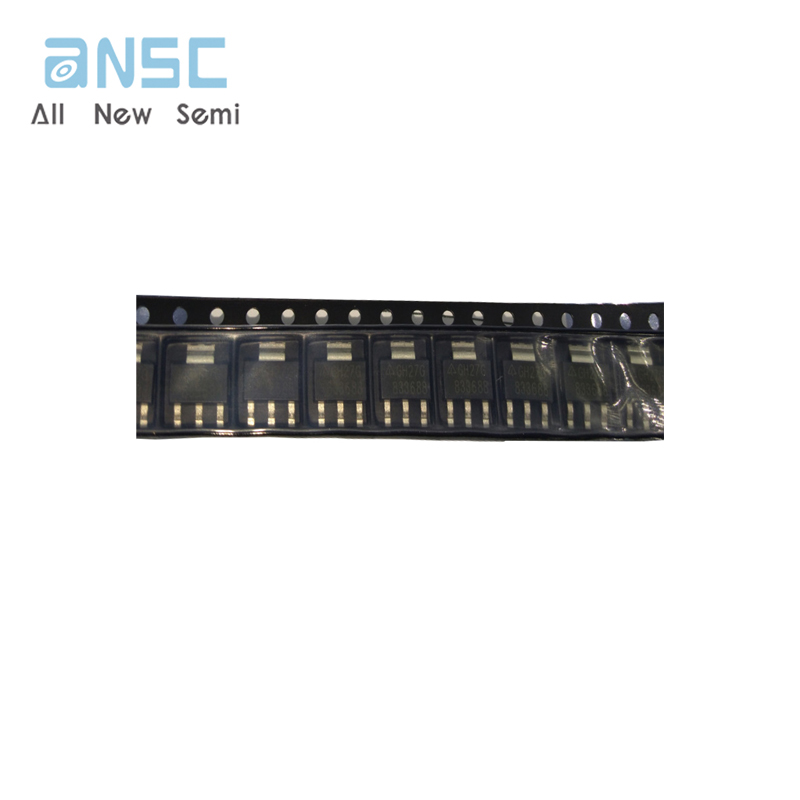

Original AZ1117EH-3.3TRG1 PMIC IC REG LINEAR 3.3V 1A Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223-3
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| General Description The AZ1117B is a low dropout three-terminal regulator with a dropout of 1.2V at 800mA output current. The AZ1117B has been optimized for low voltage where transient response and minimum input voltage are critical. It provides current limit and thermal shutdown. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to be within ±1%. On-chip thermal shutdown provides protection against a combination of high current and ambient temperature that would create excessivejunction temperature. Features Low Dropout Voltage: 1.2V at 800mA Output Current Output Noise from 10Hz to 10KHz: 0.003% PSRR at IOUT=300mA and f=120Hz: 70dB Output Voltage Accuracy: ±1% On-chip Thermal Shutdown Maximum Quiescent Current: IQMAX=6mA Operation Junction Temperature: -20 to 105°C Applications USB Device Add-on Card DVD Player PC Motherboard |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- AZ1117EH-3.3TRG1 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | AZ1117E |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 13V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 6 mA |
| PSRR | 70dB (120Hz ~ 1kHz) |
| Control Features | - |
| Protection Features | Thermal Shutdown |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Base Product Number | AZ1117 |
