Hot-selling and scarce MAX809LTRG Very Low Supply Current 3−Pin Microprocessor Reset Monitors SOT23 spot stock

Product Descriptions

The MAX809 and MAX810 are cost−effective system supervisorcircuits designed to monitor V_CC in digital systems and provide a resetsignal to the host processor when necessary.No external componentsare required .

The reset output is driven active within  10 sec of V_CC  fallingthrough the reset voltage threshold . Reset is maintained active for atimeout period which is trimmed by the factory after V_CC rises abovethe reset threshold . The MAX810 has an active−high RESET outputwhile the MAX809 has an active−low RESET output . Both devicesare available in SOT−23 and SC−70 packages .

The MAX809/810 are optimized to reject fast transient glitches onthe V_CC line. Low supply current of 0.5 A (V_CC = 3.2 V)makes thesedevices suitable for battery powered applications .

Product Features

• Precision VCC Monitor for 1.5 V, 1.8 V, 2.5 V, 3.0 V, 3.3 V, and 5.0 V Supplies

• Precision Monitoring Voltages from 1.2 V to 4.9 V Available in 100 mV Steps

• Four Guaranteed Minimum Power−On Reset Pulse Width Available (1 ms, 20 ms, 100 ms, and 140 ms)

• RESET Output Guaranteed to V CC = 1.0 V.

• Low Supply Current

• Compatible with Hot Plug Applications

• VCC Transient Immunity

• No External Components

• Wide Operating Temperature: −40°C to 105°C

• Pb−Free Packages are Available

Product Applications

• Computers

• Embedded Systems

• Battery Powered Equipment

• Critical Microprocessor Power Supply Monitoring

​

Product Specification

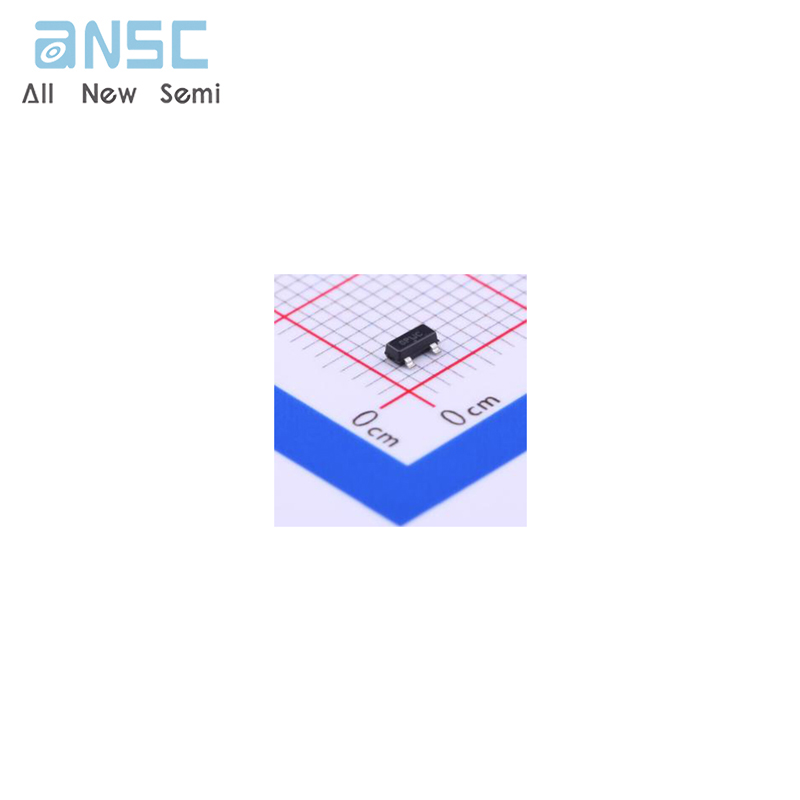

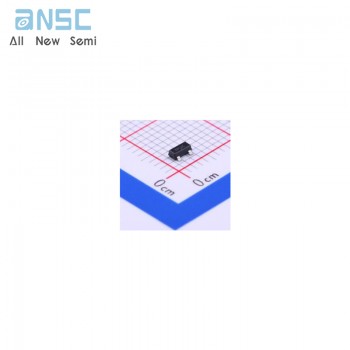

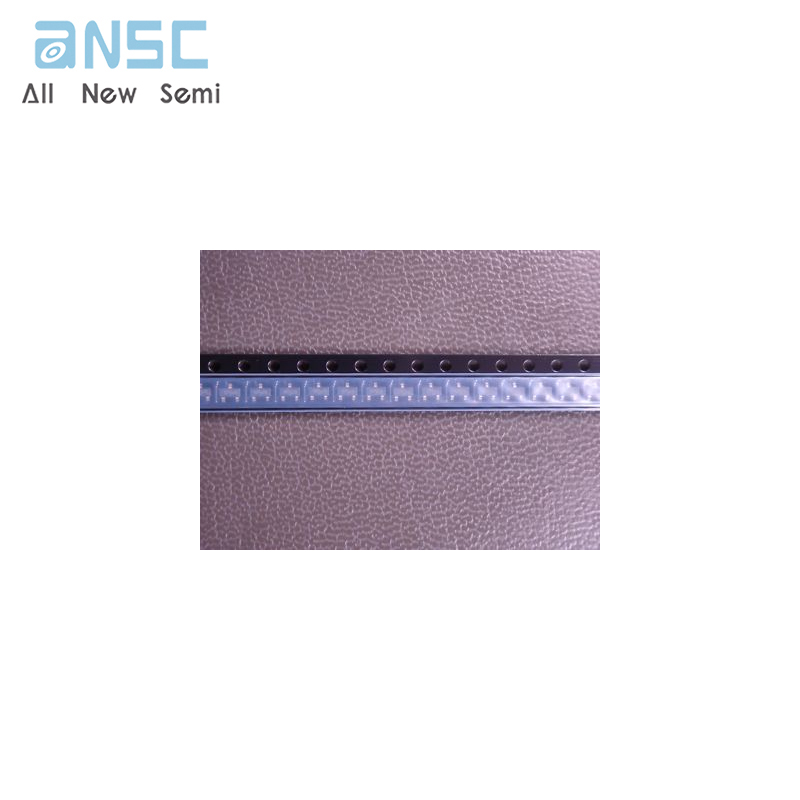

Product Photos

For more product information, please download the PDF
