Hot sale Original LM22670TJ-ADJ IC 5.5 A SWITCHING REGULATOR 600 kHz SWITCHING FREQ-MAX PSSO7 PLASTIC TO-263 7 PIN

Manufacturer Product Number

LM22670TJ-ADJ

Description

LM22670TJ-ADJ IC 5.5 A SWITCHING REGULATOR 600 kHz SWITCHING FREQ-MAX PSSO7 PLASTIC TO-263 7 PIN

Package Condition

Tape & Reel (TR)

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

LM22670/LM22670Q 42V, 3A SIMPLE SWITCHER, Step-Down Voltage Regulator with

Product Description

Type#	Description
ANSC PART#	ANSC- LM22670TJ-ADJ
Package Description	To-263, Smsip7h,.55,50tb
Additional Feature	Also Has Adjustable Outputs As Low As 1.285v
Analog IC - Other Type	Switching Regulator
Control Mode	Voltage-Mode
Control Technique	Pulse Width Modulation
Input Voltage-Max	42 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PSSO-G7
JESD-609 Code	e3
Length	10.16 Mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	7
Operating Temperature-Max	125 °C
Operating Temperature-Min	-40 °C
Output Current-Max	5.5 A
Package Body Material	Plastic/Epoxy
Package Code	TO-263
Package Equivalence Code	SMSIP7H,.55,50TB
Package Shape	Rectangular
Package Style	Small Outline
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	2.25 Mm
Surface Mount	Yes
Switcher Configuration	Buck
Switching Frequency-Max	600 Khz
Temperature Grade	Automotive
Terminal Finish	Matte Tin (Sn)
Terminal Form	Gull Wing
Terminal Pitch	1.27 Mm
Terminal Position	Single
Time@Peak Reflow Temperature-Max (s)	40
Width	9.85 Mm

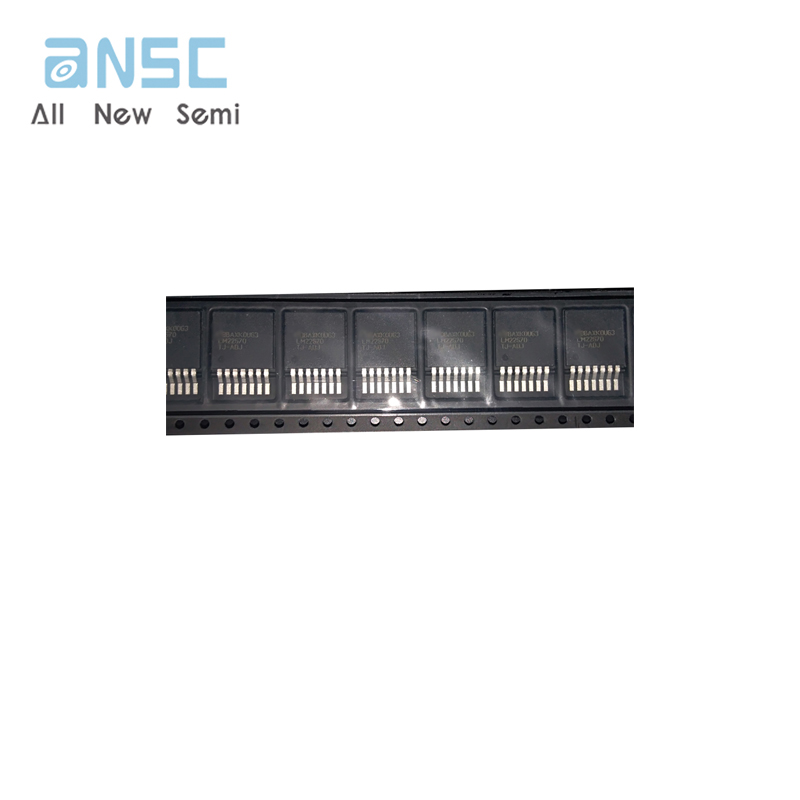

Actual image of the product

LM22670TJ-ADJ

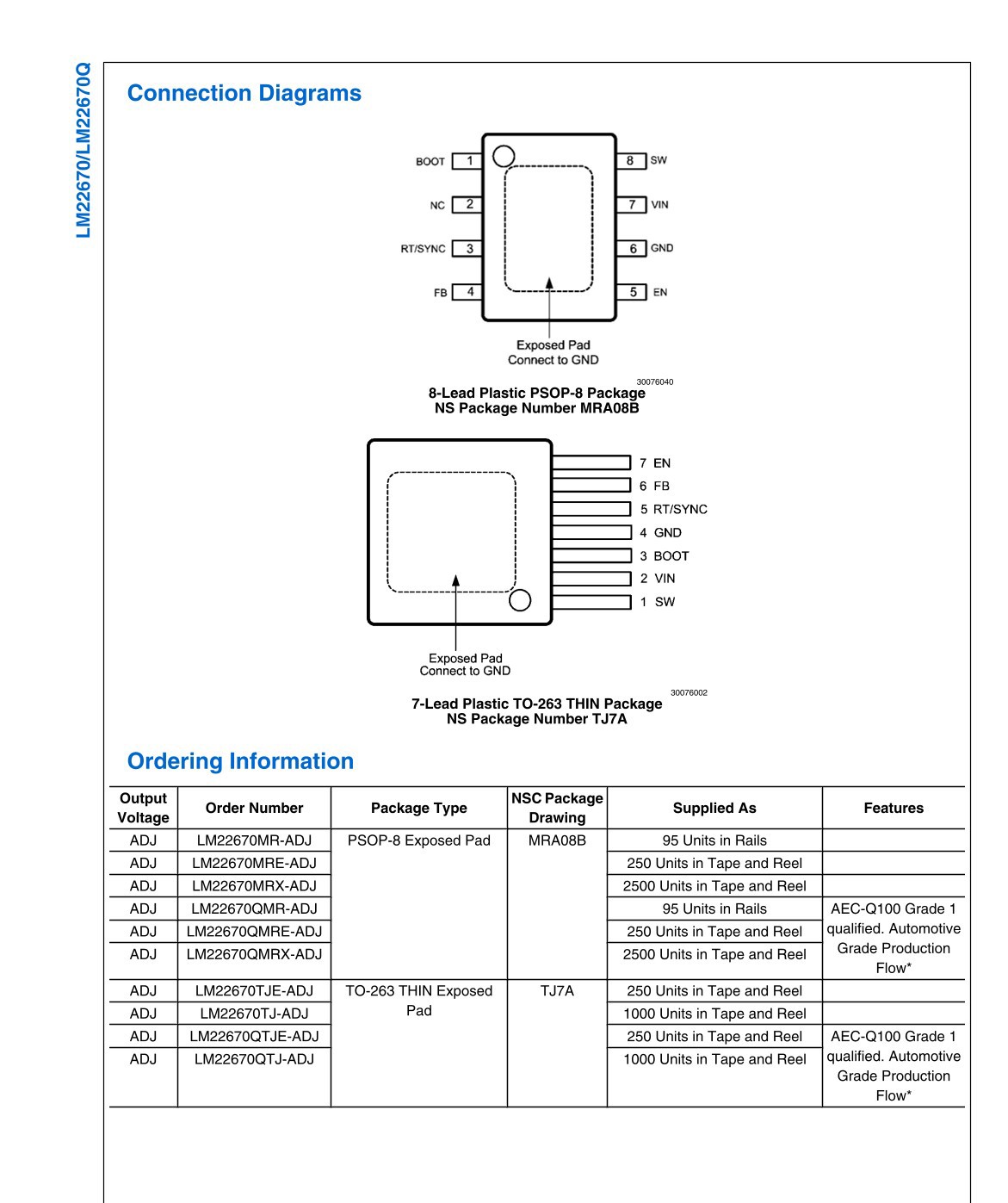

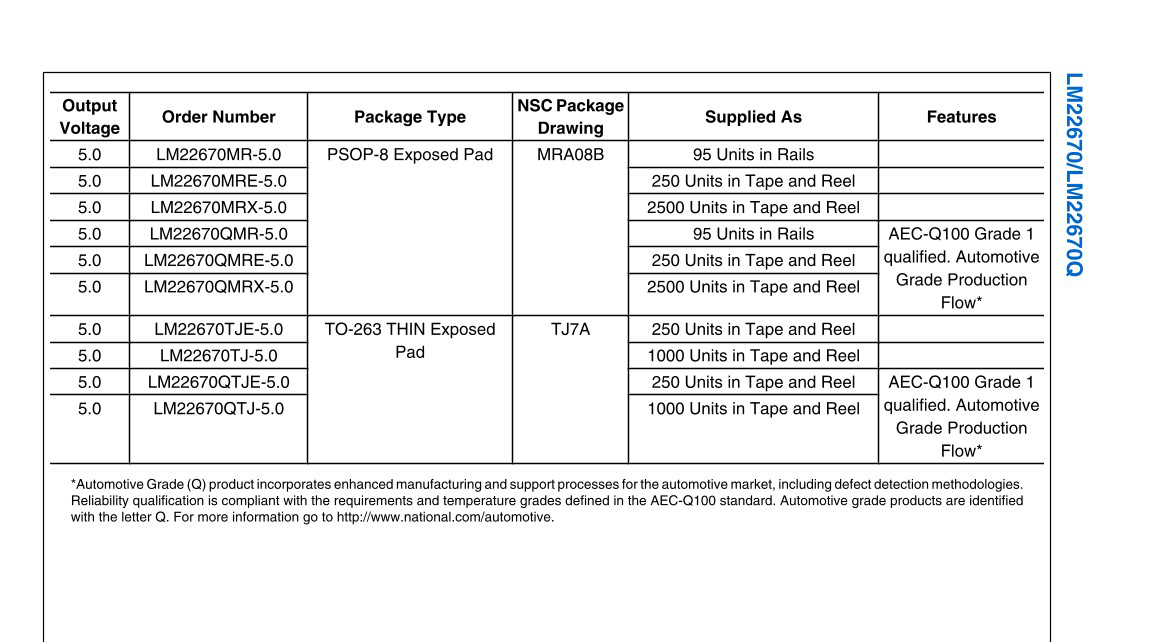

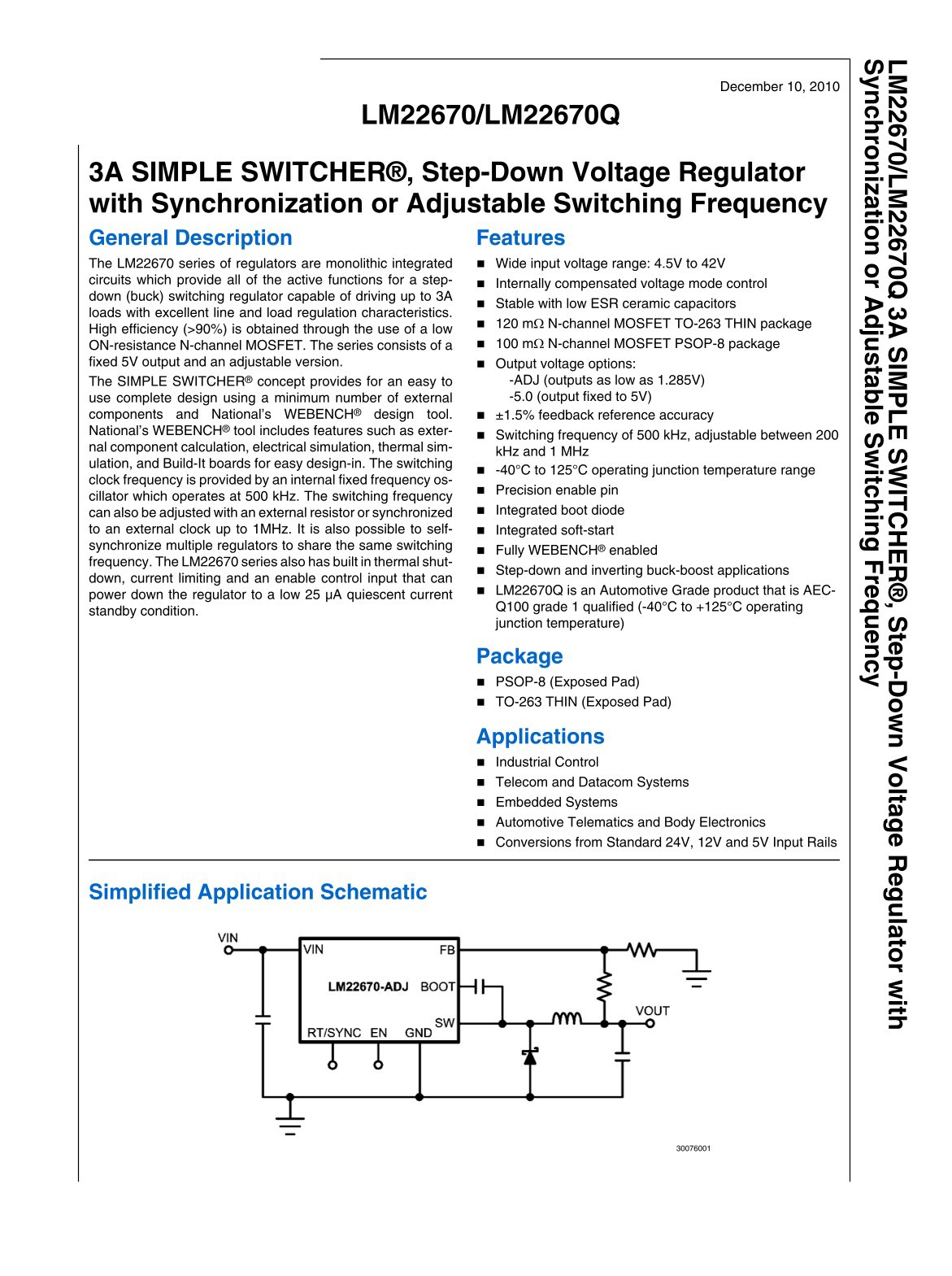

Product datasheet

For more information, please download
