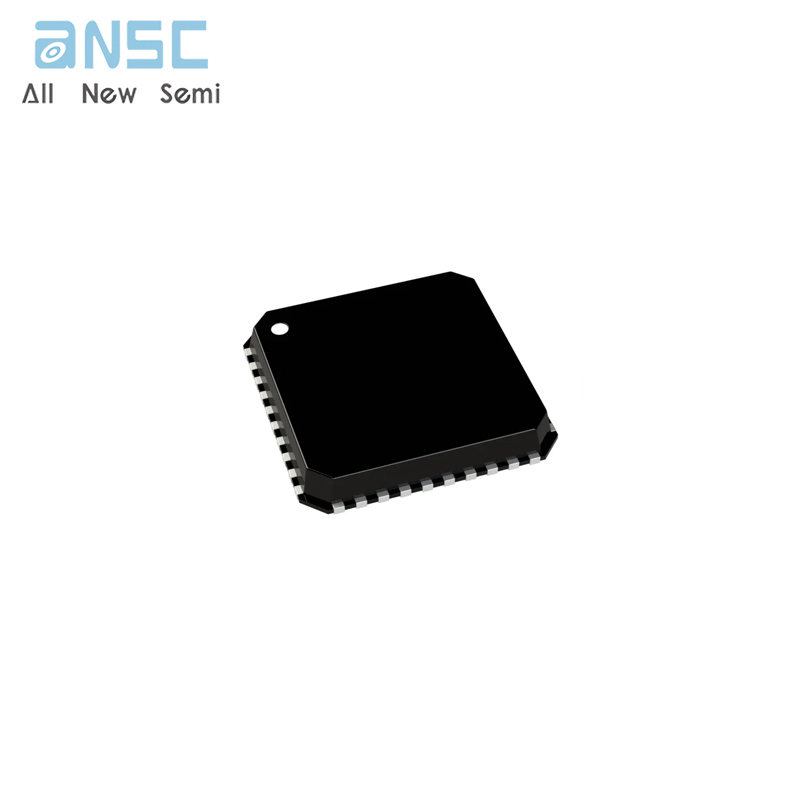

Hot-selling and scarce ADM1062ACPZ Super Sequencer with Margining Control and Temperature Monitoring QFN40 spot stock

Product Descriptions

The ADM1062 Super Sequencer® is a configurable supervisory/sequencing device that offers a single-chip solution for supplymonitoring and sequencing in multiple-supply systems .In additionto these functions,the ADM1062 integrates a 12-bit ADC and six8-bit voltage output DACs.These circuits can be used to implementa closed-loop margining system that enables supply adjustmentby altering either the feedback node or the reference of a dc-to-dcconverter using the DAC outputs .​

Product Features

Complete supervisory and sequencing solution for up to

10 supplies

10 supply fault detectors enable supervision of supplies to

<0.5% accuracy at all voltages at 25°C

<1.0% accuracy across all voltages and temperatures

5 selectable input attenuators allow supervision of supplies to

14.4 V on VH

6 V on VP1 to VP4 (VPx)

5 dual-function inputs,VX1 to VX5 (VXx)

High impedance input to supply fault detector with

thresholds between 0.573 V and 1.375 V

General-purpose logic input

10 programmable driver outputs, PDO1 to PDO10 (PDOx)

Open-collector with external pull-up

Push/pull output, driven to VDDCAP or VPx

Open collector with weak pull-up to VDDCAP or VPx

Internally charge-pumped high drive for use with external

N-FET (PDO1 to PDO6 only)

Sequencing engine (SE) implements state machine control of

PDO outputs

State changes conditional on input events

Enables complex control of boards

Power-up and power-down sequence control

Fault event handling

Interrupt generation on warnings

Watchdog function can be integrated in SE

Program software control of sequencing through SMBus

Complete voltage margining solution for 6 voltage rails

6 voltage output, 8-bit DACs (0.300 V to 1.551 V) allow voltage

adjustment via dc-to-dc converter trim/feedback node

12-bit ADC for readback of all supervised voltages

Internal and external temperature sensors

Reference input (REFIN) has 2 input options

Driven directly from 2.048 V (±0.25%) REFOUT pin

More accurate external reference for improved

ADC performance

Device powered by the highest of VPx,VH for improved

redundancy

User EEPROM: 256 bytes

Industry-standard 2-wire bus interface (SMBus)

Guaranteed PDO low with VH,VPx = 1.2 V

Available in 40-lead,6 mm ×6 mm LFCSP and

48-lead, 7 mm ×7 mm TQFP packages

Product Applications

Central office systems

Servers/routers

Multivoltage system line cards

DSP/FPGA supply sequencing

In-circuit testing of margined supplies

Product Specification

Product Photos

For more product information, please download the PDF
