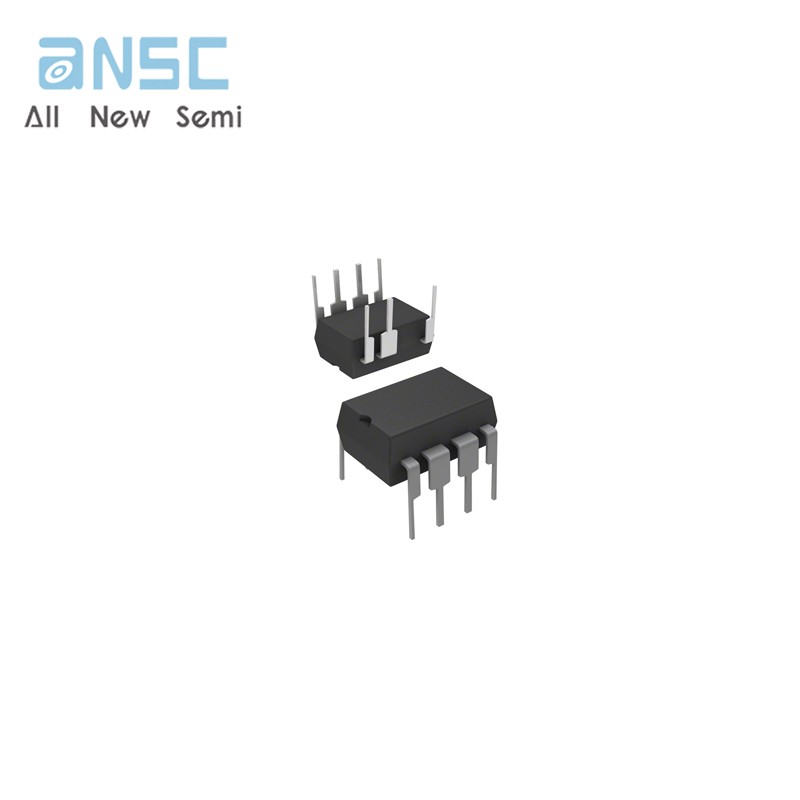

Hot sale Original TOP244PN PMIC IC OFFLINE SWITCH FLYBACK 8DIP Converter Offline Flyback Topology 66kHz ~ 132kHz 8-PDIP-B

Manufacturer
Manufacturer Product Number
TOP244PN
Description

Original TOP244PN PMIC IC OFFLINE SWITCH FLYBACK 8DIP Converter Offline Flyback Topology 66kHz ~ 132kHz 8-PDIP-B

Package Condition
Original

Product Overview

An embedded ac to dc converter is included in 8-DIP (0.300, 7.62mm), 7 Leads package.Tube case is available for the ac dc converter.Through Hole mounts this AC/DC converter.The ac dc converter needs to be operated at -40°C~150°C TJ °C in order to perform.The AC DC converter utilizes a type SWITCHING REGULATOR analog IC.There is 66kHz~132kHz switching frequency.As a result, it has a total of 7 terminations.In this ac/dc converter, there are 8 pins.There are 8 pins in total.This AC to DC converter belongs to the TOPSwitch®-GX family of manufacturers.A total of 1 outputs are available for processing.2.16A is set as the output current.It produces a voltage of 700V .AC to DC converter reaches high efficiency when operated at a frequency of 132kHz .SVHC for REACH can be found in the standard No SVHC .The AC to DC converter can be powered from the input voltage under 265V .An input voltage of less than 85V V is required to operate the AC to DC inverter.A minimum voltage of 85V is required across the converter.It is possible to supply 265V voltage across the converter.The AC to DC power converter's input voltage (AC) should be below 265V .It is configured to use Adjustable as an output.

Product Features

Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 66kHz~132kHz
With 8 pins
Output Current at 2.16A
Output Type : Adjustable

Product Applications

There are a lot of Power Integrations
TOP244PN AC DC Converters applications.

· Linear Adapter Replacements

· Chargers for cell/cordless phones

· PDAs

· MP3

· Portable audio

· Adapters

· Networking

· Battery Chargers

· Power Adaptors

· Standby Power Supplies



Product Description

Type

Description

ANSC PART#

ANSC - TOP244PN

Category

Integrated Circuits (ICs)

Power Management (PMIC)

AC DC Converters, Offline Switches

Manufacturer

Power Integrations

Series

TOPSwitch®-GX

Packaging

Tube

Part Status

Not For New Designs

Output Isolation

Isolated

Internal Switch(s)

Yes

Voltage - Breakdown

700V

Topology

Flyback

Voltage - Supply (Vcc/Vdd)

-

Duty Cycle

66.5%

Frequency - Switching

66kHz ~ 132kHz

Power (Watts)

28 W

Fault Protection

Current Limiting, Over Temperature, Over Voltage

Control Features

Frequency Control

Operating Temperature

-40°C ~ 150°C (TJ)

Package / Case

8-DIP (0.300", 7.62mm), 7 Leads

Supplier Device Package

8-PDIP-B

Mounting Type

Through Hole

Base Product Number

TOP244
