Hot-selling and scarce ADR291ERZ Series Voltage Reference IC Fixed 2.5V V ±0.08% 5 mA 8-SOIC spot stock

Product Descriptions

The ADR291 and ADR292 are low noise,micropower precision voltage references that use an XFET® reference circuit. The new XFET architecture offers significant performance improvements over traditional band gap and buried Zener-based references. Improvements include one quarter the voltage noise output of band gap references operating at the same current,very low and ultralinear temperature drift, low thermal hysteresis, and excellent long-term stability.

The ADR291/ADR292 family is a series of voltage references providing stable and accurate output voltages from supplies as low as 2.8 V for the ADR291 . Output voltage options are 2.5 Vand 4.096 V for the ADR291 and ADR292, respectively.

Product Features

Supply range

2.8 V to 15 V, ADR291

4.4 V to 15 V, ADR292

Supply current: 15 μA maximum

Low noise: 8 μV and 12 μV p-p (0.1 Hz to 10 Hz)

High output current: 5 mA

Temperature range: −40°C to +125°C

Pin-compatible with REF02/REF19x

Product Applications

Portable instrumentation

Precision reference for 3 V and 5 V systems

Analog-to-digital and digital-to-analog converter reference

Solar-powered applications

Loop-current-powered instruments

Product Specifications

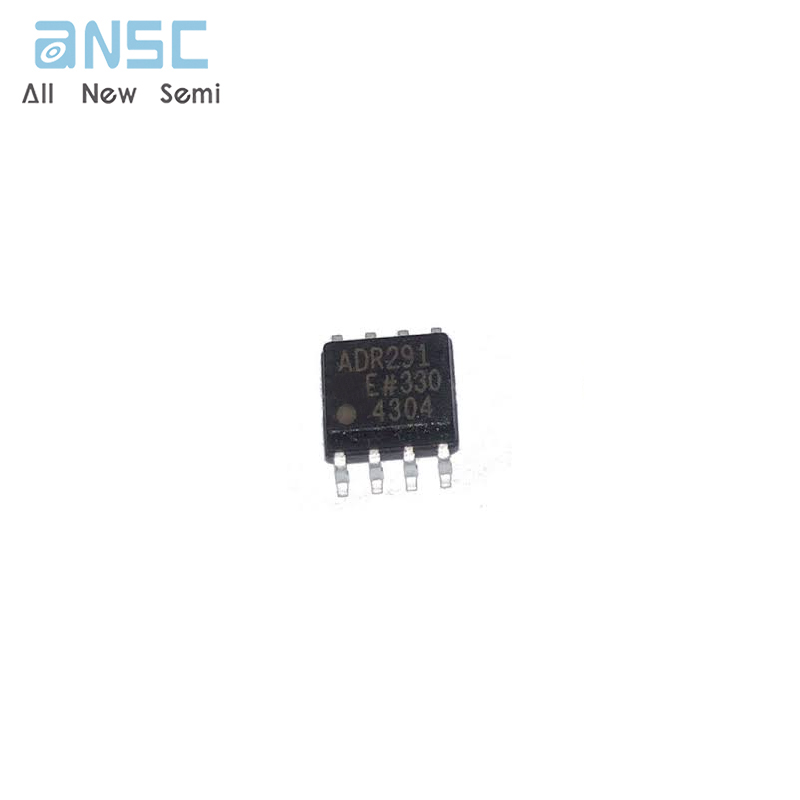

Product Photos

​

For more product information, please download the PDF
