Hot-selling and scarce REF3333AIDBZR Series Voltage Reference IC Fixed 3.3V V ±0.15% 5 mA SOT-23-3 spot stock

Product Descriptions

The REF33xx is a low-power, precision, low-dropout voltage reference family available in the tiny SC70-3 and SOT23-3  packages. Small size and  low  power consumption (5μA max) make the REF33xx ideal for a   wide   variety   of   portable   and   battery-powered applications.

The  REF33xx can  be operated at a supply voltage180mV  above  the  specified  output  voltage  under normal  load  conditions,  with  the  exception  of  the REF3312, which  has  a  minimum  supply voltage  of1.8V.   All   models   are   specified   for   the   wide temperature range, –40°C to +125°C.

Product Features

•    MICROSIZE PACKAGES: SC70-3, SOT23-3

•    LOW SUPPLY CURRENT: 3.9μA (typ)

•    HIGH OUTPUT CURRENT: ±5mA

•    LOW TEMPERATURE DRIFT: 30ppm/°C (max)

•    HIGH INITIAL ACCURACY: ±0.15% (max)

Product Applications

•    PORTABLE EQUIPMENT

•    DATA ACQUISITION SYSTEMS

•    MEDICAL EQUIPMENT

•    TEST EQUIPMENT

Product Specification

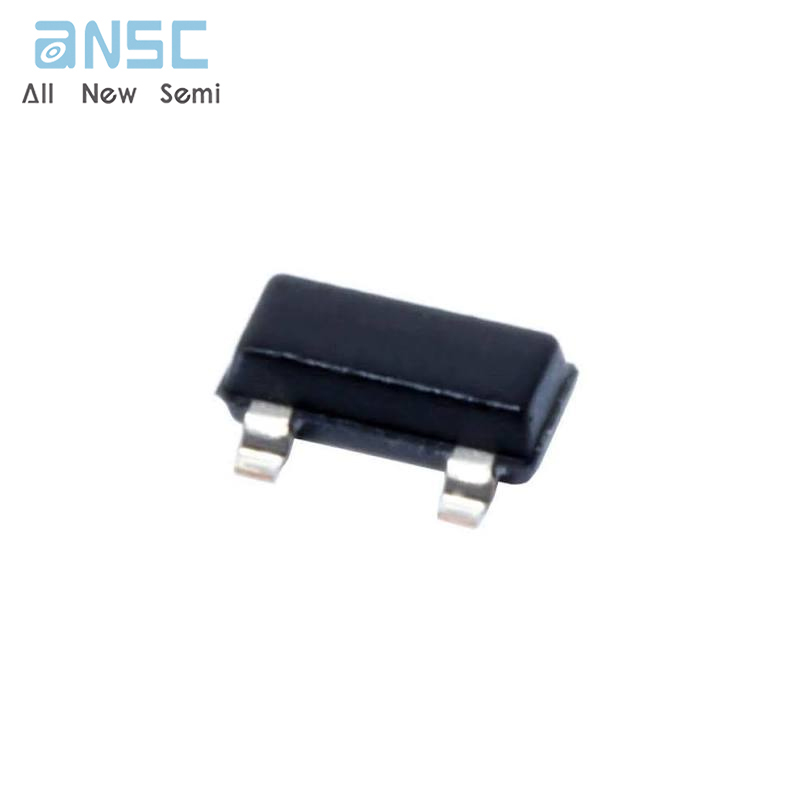

Product Photos

For more product information, please download the PDF
