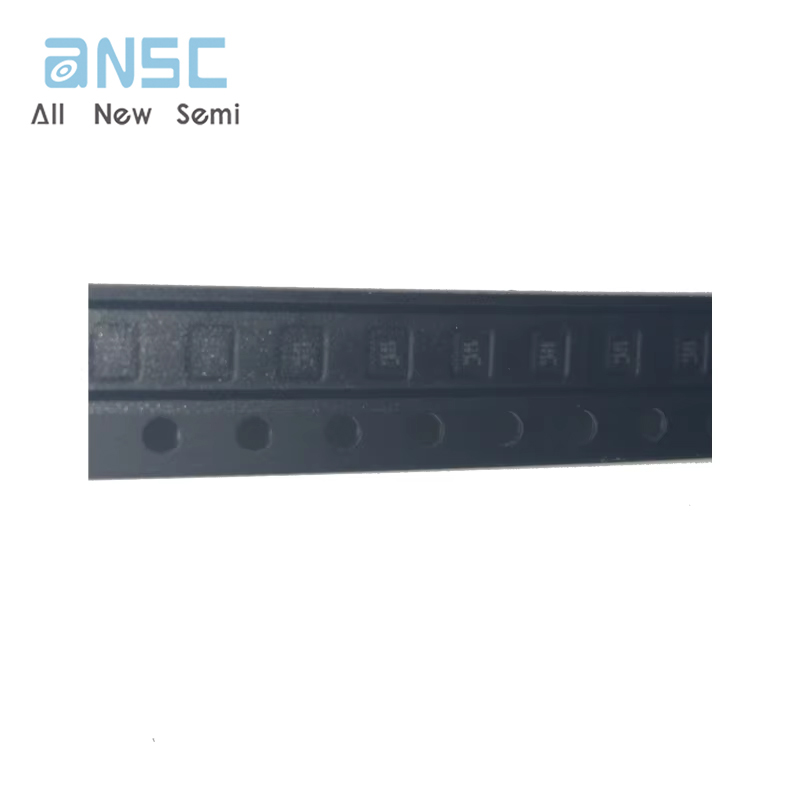

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
FSUSB42UMX IC USB SWITCH DPDT 10UMLP USB Switch IC 1 Channel 10-UMLP (1.8x1.4)
Product Details
| Product Description: The FSUSB42UMX is a high-performance, surface-mount, dual-pole, double-throw (DPDT) analog switch , designed for USB 2.0 applications. This component is part of the FSUSB42 family and offers a range of features that make it an ideal choice for various electronic devices. Features: Break-before-make switching action for reliable operation USB 2.0 compliance for high-speed data transfer Low on-state resistance (3.9Ohm) and on-state resistance match (0.65Ohm) for efficient signal switching High isolation (30 dB) to minimize signal interference Low power consumption (1μA) and low supply current (100mA) for energy efficiency Operating temperature range of -40°C to 85°C for reliable performance in various environments Lead-free and RoHS3 compliant for environmentally friendly manufacturing Applications: Primary applications: USB devices, such as USB hubs, switches, and interfaces Secondary applications: Other high-speed data transfer applications, such as audio and video interfaces |
| Type | Description |
| ANSC PART# | ANSC - FSUSB42UMX |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches - Special Purpose | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Applications | USB |
| Multiplexer/Demultiplexer Circuit | - |
| Switch Circuit | DPDT |
| Number of Channels | 1 |
| On-State Resistance (Max) | 6.5Ohm |
| Voltage - Supply, Single (V+) | 2.4V ~ 4.4V |
| Voltage - Supply, Dual (V±) |
- |
| -3db Bandwidth | 720MHz |
| Features | Break-Before-Make, USB 2.0 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UMLP (1.8x1.4) |
| Base Product Number | FSUSB42 |
