Hot sale original ADM3490ARZ IC TRANSCEIVE R FULL 1/1 8SOI1/1 Transceiver Full RS422
Manufacturer Product Number
ADM3490ARZ
Description
ADM3490ARZ IC TRANSCEIVE R FULL 1/1 8SOI1/1 Transceiver Full RS422
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| GENERAL DESCRIPTION The ADM3483/ADM3485/ADM3488/ADM3490/ADM3491 are low power, differential line transceivers designed to operate using a single 3.3 V power supply. Low power consumption, coupled with a shutdown mode, makes the ADM3483/ADM3485/ADM3488/ADM3490/ADM3491 ideal for power-sensitive applications. The ADM3488/ADM3490/ADM3491 feature full-duplex communication, while the ADM3483/ADM3485 are designed for half-duplex communication. The ADM3483/ADM3488 feature slew rate limited drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission at data rates up to 250 kbps. The ADM3485/ADM3490/ADM3491 transmit at up to 10 Mbps. The receiver input impedance is 12 kΩ, allowing up to 32 transceivers to be connected on the bus. A thermal shutdown circuit prevents excessive power dissipation caused by bus contention or by output shorting. If a significant temperature increase is detected in the internal driver circuitry during fault conditions, then the thermal shutdown circuit forces the driver output into a high impedance state. If the inputs are unconnected (floating), the receiver contains a fail-safe feature that results in a logic high output state. The parts are fully specified over the commercial and industrial temperature ranges. The ADM3483/ADM3485/ADM3488/ADM3490 are available in 8-lead SOIC_N; the ADM3491 is available in a 14-lead SOIC_N. FEATURESOperate with 3.3 V supply Interoperable with 5 V logic EIA RS-422 and RS-485 compliant over full common-mode range Data rate options ADM3483/ADM3488: 250 kbps ADM3485/ADM3490/ADM3491: 10 Mbps Half- and full-duplex options Reduced slew rates for low EMI (ADM3483 and ADM3488) 2 nA supply current in shutdown mode (ADM3483/ADM3485/ADM3491) Up to 32 transceivers on the bus −7 V to +12 V bus common-mode range Specified over the –40°C to +85°C temperature range 8 ns skew (ADM3485/ADM3490/ADM3491) 8-lead SOIC and 14-lead SOIC (ADM3491 only) packages APPLICATIONS Low power RS-485/RS-422 applications Telecom Industrial process control HVAC |
Product Description
| Type | Description |
| ANSC PART# | ANSC - ADM3490ARZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Full |
| Receiver Hysteresis | 50 mV |
| Data Rate | 10Mbps |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | ADM3490 |

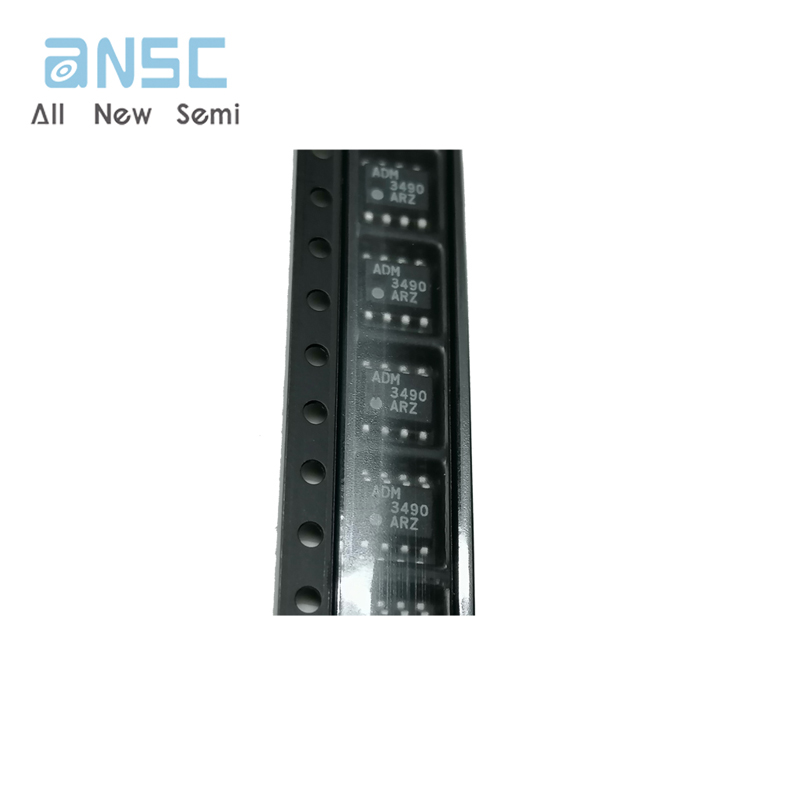

Product Photos

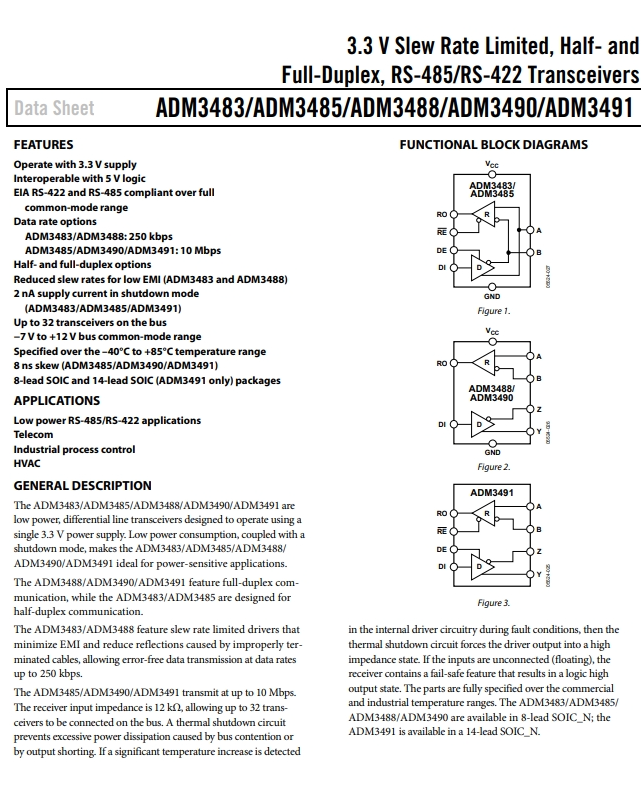

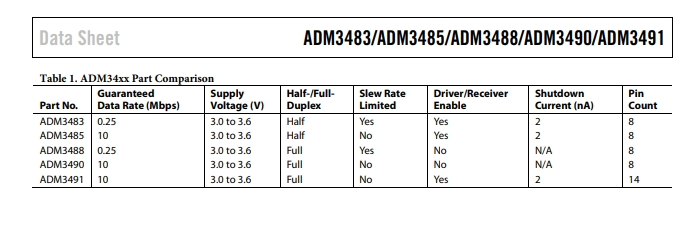

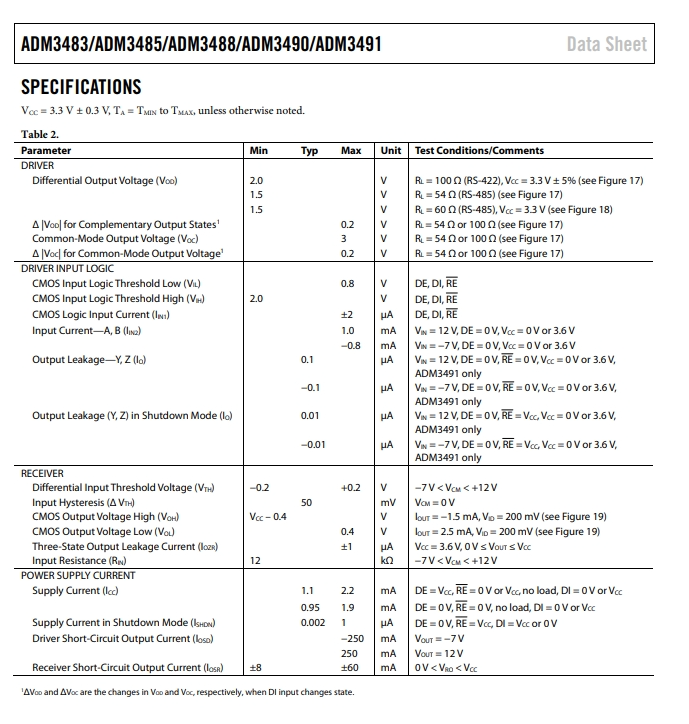

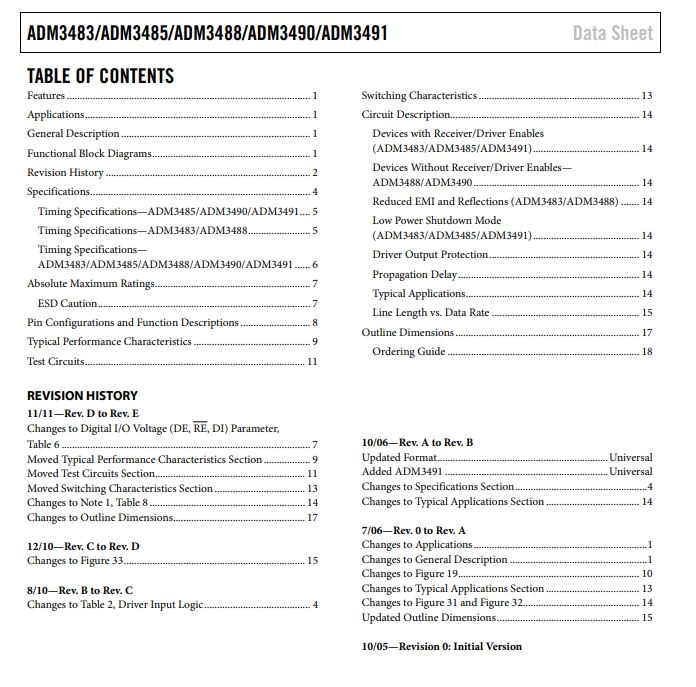

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
