Hot sale original AD5313WBRUZ-REEL7 IC DAC 10BIT V-OUT 16TSSOP 10 Bit Digital to Analog Converter 2 16-TSSOP
Manufacturer Product Number
AD5313WBRUZ-REEL7
Description
AD5313WBRUZ-REEL7 IC DAC 10BIT V-OUT 16TSSOP 10 Bit Digital to Analog Converter 2 16-TSSOP
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

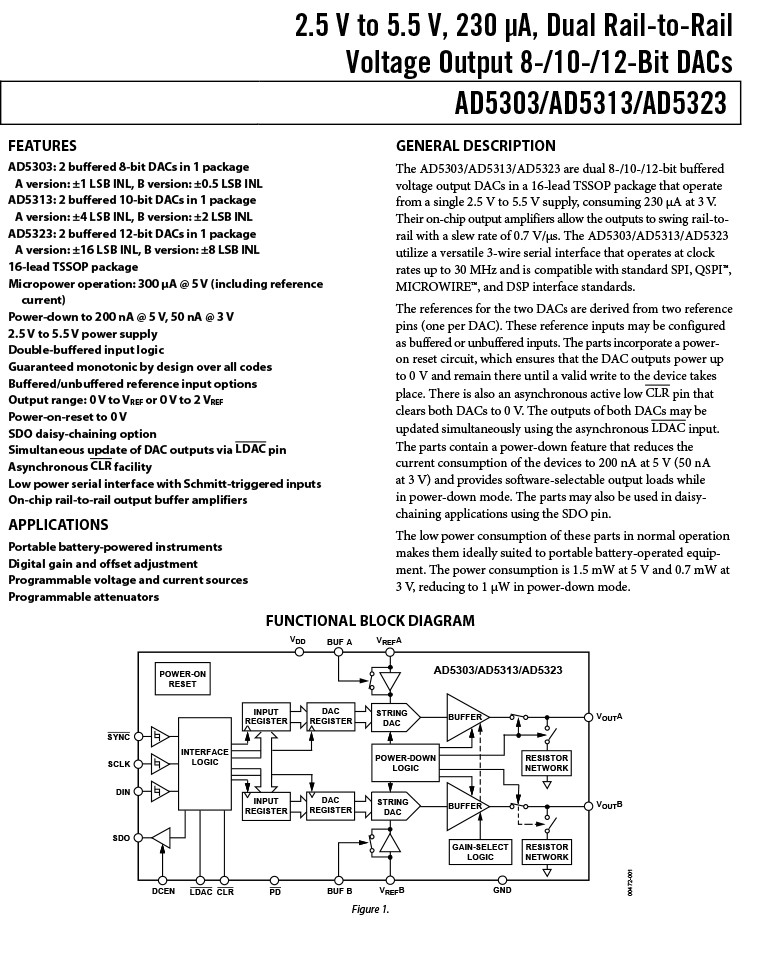

| GENERAL DESCRIPTION The AD5303/AD5313/AD5323 are dual 8-, 10- and 12-bit buffered voltage output DACs in a 16-lead TSSOP package tha operate from a single +2.5 V to +5.5 V supply consuming 230 µA at 3 V. Their on-chip output amplifiers allow the outputs to swing rail-to-rail with a slew rate of 0.7 V/µs. The AD5303/AD5313/AD5323 utilize a versatile 3-wire serial interface that operates at clock rates up to 30 MHz and is compatible with standard SPI™, QSPI, MICROWIRE™ and DSP interface standards FEATURES AD5303: Two Buffered 8-Bit DACs in One Package AD5313: Two Buffered 10-Bit DACs in One Package AD5323: Two Buffered 12-Bit DACs in One Package 16-Lead TSSOP Package Micropower Operation: 300 A @ 5 V (Including Reference Current) Power-Down to 200 nA @ 5 V, 50 nA @ 3 V +2.5 V to +5.5 V Power Supply Double-Buffered Input Logic Guaranteed Monotonic By Design Over All Codes Buffered/Unbuffered Reference Input Options Output Range: 0–VREF or 0–2 VREF Power-On-Reset to Zero Volts SDO Daisy-Chaining Option Simultaneous Update of DAC Outputs via LDAC Pin Asynchronous CLR Facility Low Power Serial Interface with Schmitt-Triggered Inputs On-Chip Rail-to-Rail Output Buffer Amplifiers APPLICATIONS Portable Battery Powered Instruments Digital Gain and Offset Adjustment Programmable Voltage and Current Sources Programmable Attenuators |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD5313WBRUZ-REEL7 |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Manufacturer | Original |
| Series | ADI0012 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Number of Bits | 10 |
| Number of D/A Converters | 2 |
| Settling Time | 9µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage - Supply, Analog | 2.5V ~ 5.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.05 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Base Product Number | AD5313 |

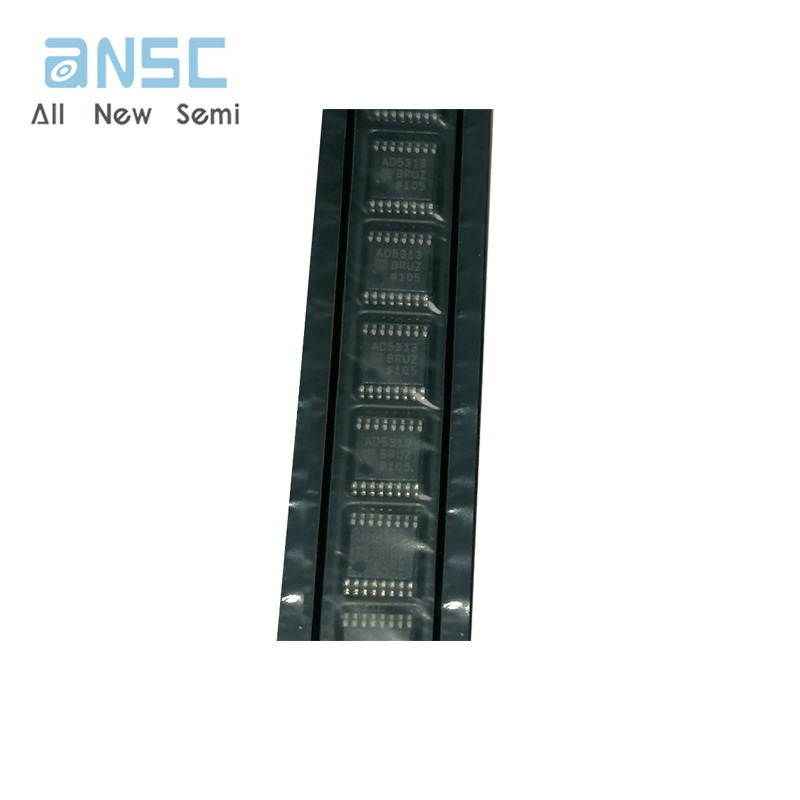

Product Photos

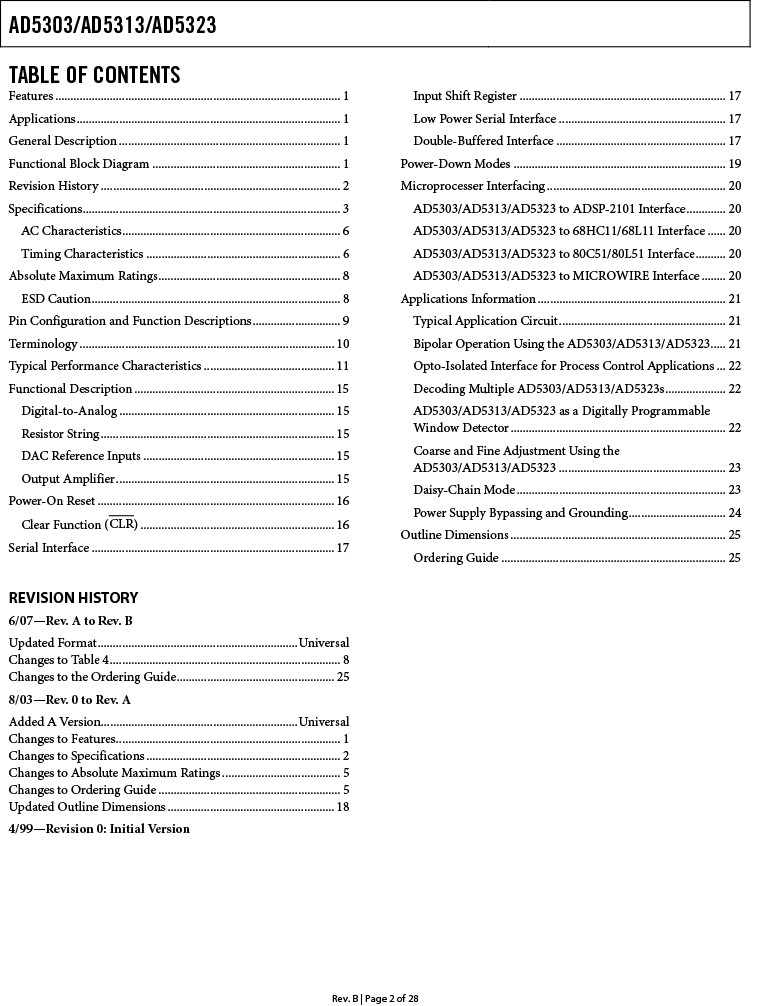

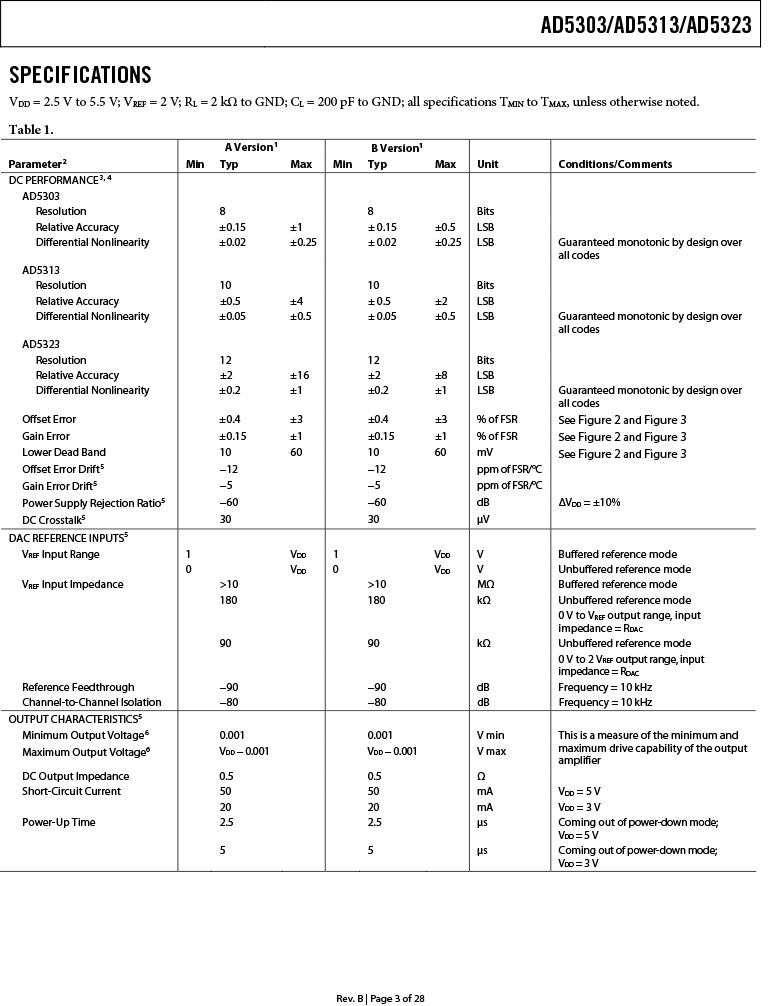

Product datasheet
