Hot sale Original AD7176-2BRUZ IC ADC 24TSSOP 24 Bit Analog to Digital Converter 2, 4 Input 1 Sigma-Delta 24-TSSOP
Manufacturer
Manufacturer Product Number
AD7176-2BRUZ
Description
Original AD7176-2BRUZ IC ADC 24TSSOP 24 Bit Analog to Digital Converter 2, 4 Input 1 Sigma-Delta 24-TSSOP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| GENERAL DESCRIPTION The AD7176-2 is a fast settling, highly accurate, high resolution, multiplexed Σ-Δ analog-to-digital converter (ADC) for low bandwidth input signals. Its inputs can be configured as two fully differential or four pseudo differential inputs via the integrated crosspoint multiplexer. An integrated precision, 2.5 V, low drift (2 ppm/°C), band gap internal reference (with an output reference buffer) adds functionality and reduces the external component count. FEATURES Fast and flexible output rate—5 SPS to 250 kSPS Fast settling time—20 µs Channel scan data rate of 50 kSPS/channel Performance specifications 17 noise free bits at 250 kSPS 20 noise free bits at 2.5 kSPS 22 noise free bits at 5 SPS INL ±2.5 ppm of FSR 85 dB rejection of 50 Hz and 60 Hz with 50 ms settling User-configurable input channels 2 fully differential or 4 pseudo differential Crosspoint multiplexer On-chip 2.5 V reference (drift 2 ppm/°C) Internal oscillator, external crystal, or external clock Power supply Single supply: 5 V AVDD1, 2 V to 5 V AVDD2 and IOVDD Optional split supply: AVDD1 and AVSS ± 2.5 V Current: 7.8 mA Temperature range: −40°C to +105°C 3- or 4-wire serial digital interface (Schmitt trigger on SCLK) CRC error checking SPI, QSPI, MICROWIRE, and DSP compatible APPLICATIONS Process control: PLC/DCS modules Temperature and pressure measurement Medical and scientific multichannel instrumentation Chromatography |
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - AD7176-2BRUZ |
|
Category |
Integrated Circuits (ICs) Data Acquisition Analog to Digital Converters (ADC) |
|
Manufacturer |
Original |
|
Series |
- |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Number of Bits |
24 |
|
Sampling Rate (Per Second) |
250k |
|
Number of Inputs |
2, 4 |
|
Input Type |
Differential, Pseudo-Differential |
|
Data Interface |
SPI, DSP |
|
Configuration |
MUX-ADC |
|
Ratio - S/H:ADC |
- |
|
Number of A/D Converters |
1 |
|
Architecture |
Sigma-Delta |
|
Reference Type |
External, Internal |
|
Voltage - Supply, Analog |
2V ~ 5.5V |
|
Voltage - Supply, Digital |
2V ~ 5.5V |
|
Features |
- |
|
Operating Temperature |
-40°C ~ 105°C |
|
Package / Case |
24-TSSOP (0.173", 4.40mm Width) |
|
Supplier Device Package |
24-TSSOP |
|
Mounting Type |
Surface Mount |
|
Base Product Number |
AD7176 |

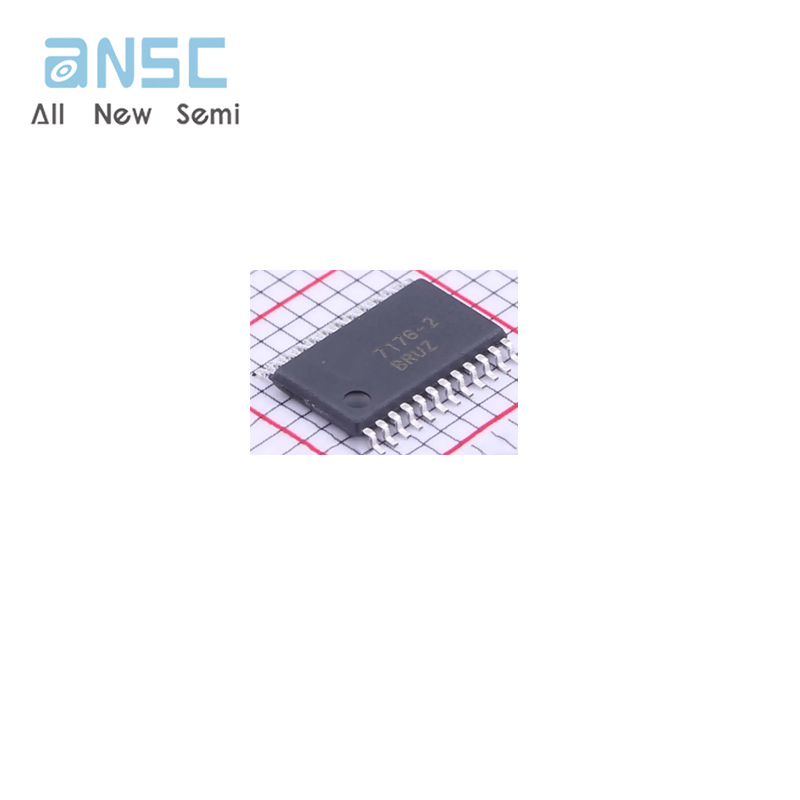

Product Photos

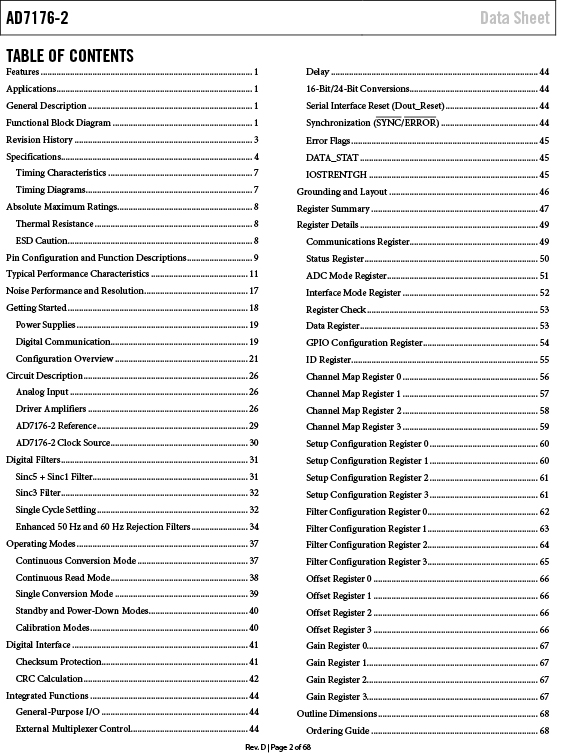

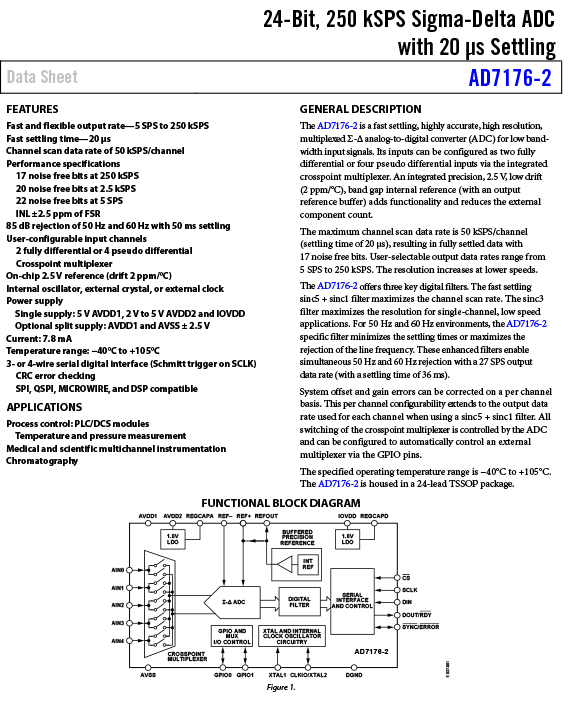

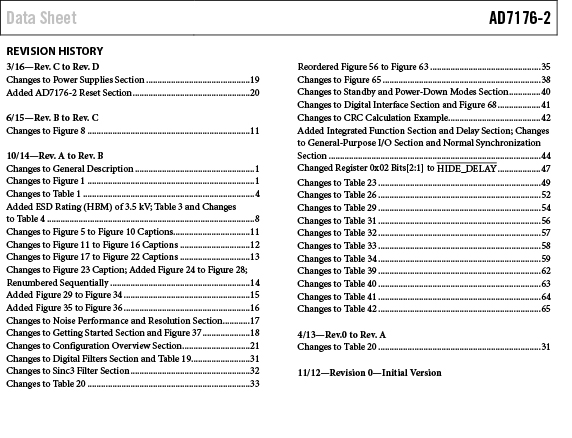

Product datasheet
For more information, please download
