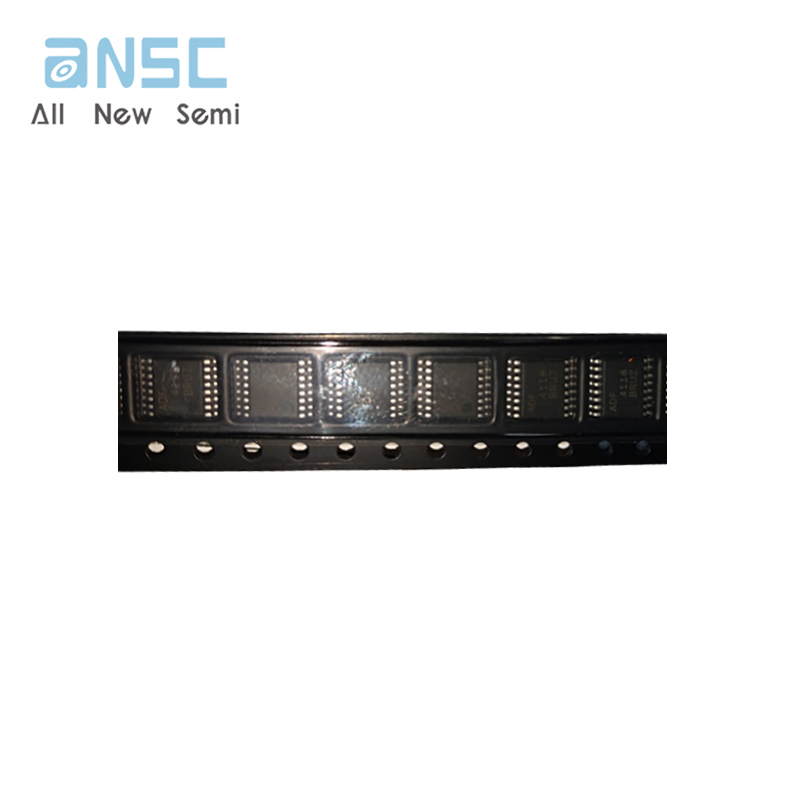

Hot sale original ADF4116BRU IC CLK/FREQ SYNTH 16TSSOP Clock/Frequency Synthesizer (RF) IC 550MHz 1 16-TSSOP
Manufacturer Product Number
ADF4116BRU
Description
ADF4116BRU IC CLK/FREQ SYNTH 16TSSOP Clock/Frequency Synthesizer (RF) IC 550MHz 1 16-TSSOP
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| GENERAL DESCRIPTION The ADF4116 family of frequency synthesizers can be used to implement local oscillators in the up-conversion and down conversion sections of wireless receivers and transmitters. They consist of a low-noise digital PFD (Phase Frequency Detector), a precision charge pump, a programmable reference divider, programmable A and B counters and a dual-modulus prescaler (P/P+1). The A (5-bit) and B (13-bit) counters, in conjunction with the dual modulus prescaler (P/P+1), implement an N divider (N = BP+A). In addition, the 14-bit reference counter (R Counter), allows selectable REFIN frequencies at the PFD input. A complete PLL (Phase-Locked Loop) can be implemented if the synthesizer is used with an external loop filter and VCO (Voltage Controlled Oscillator). FEATURES ADF4116: 550 MHz ADF4117: 1.2 GHz ADF4118: 3.0 GHz 2.7 V to 5.5 V Power Supply Separate VP Allows Extended Tuning Voltage in 3 V Systems Selected Charge Pump Currents Dual Modulus Prescaler ADF4116: 8/9 ADF4117/ADF4118: 32/33 3-Wire Serial Interface Digital Lock Detect Power-Down Mode Fast Lock Mode APPLICATIONS Base Stations for Wireless Radio (GSM, PCS, DCS, CDMA, WCDMA) Wireless Handsets (GSM, PCS, DCS, CDMA, WCDMA) Wireless LANS Communications Test Equipment CATV Equipment |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - ADF4116BRU |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Generators, PLLs, Frequency Synthesizers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Type | Clock/Frequency Synthesizer (RF) |
| PLL | Yes |
| Input | CMOS, TTL |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 2:01 |
| Differential - Input:Output | Yes/No |
| Frequency - Max | 550MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | ADF4116 |
