Hot sale Original MAX4644EUA IC Interface IC SWITCH SPDT X 1 4OHM 8UMAX 1 Circuit IC Switch 8-uMAX/uSOP Surface Mount
Manufacturer Product Number
MAX4644EUA
Description
Original MAX4644EUA IC Interface IC SWITCH SPDT X 1 4OHM 8UMAX 1 Circuit IC Switch 8-uMAX/uSOP Surface Mount
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

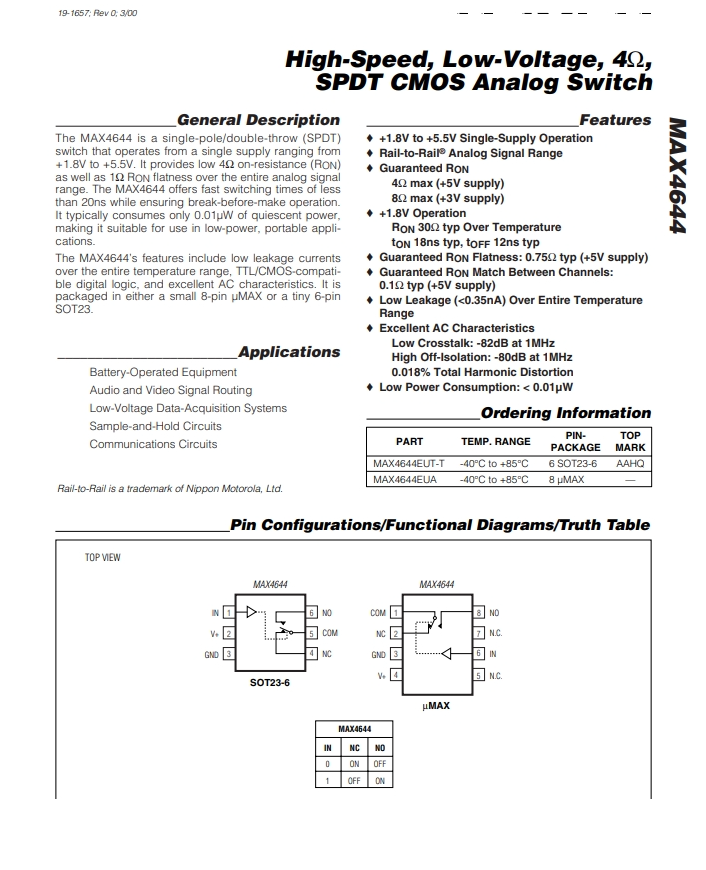

| General Description The MAX4644 is a single-pole/double-throw (SPDT) switch that operates from a single supply ranging from +1.8V to +5.5V. It provides low 4Ω on-resistance (RON) as well as 1Ω RON flatness over the entire analog signal range. The MAX4644 offers fast switching times of less than 20ns while ensuring break-before-make operation. It typically consumes only 0.01µW of quiescent power, making it suitable for use in low-power, portable applications. Features ♦ +1.8V to +5.5V Single-Supply Operation ♦ Rail-to-Rail® Analog Signal Range ♦ Guaranteed RON 4Ω max (+5V supply) 8Ω max (+3V supply) ♦ +1.8V Operation RON 30Ω typ Over Temperature tON 18ns typ, tOFF 12ns typ ♦ Guaranteed RON Flatness: 0.75Ω typ (+5V supply) ♦ Guaranteed RON Match Between Channels: 0.1Ω typ (+5V supply) ♦ Low Leakage (<0.35nA) Over Entire Temperature Range ♦ Excellent AC Characteristics Low Crosstalk: -82dB at 1MHz High Off-Isolation: -80dB at 1MHz 0.018% Total Harmonic Distortion ♦ Low Power Consumption: < 0.01µW Applications Battery-Operated Equipment Audio and Video Signal Routing Low-Voltage Data-Acquisition Systems Sample-and-Hold Circuits Communications Circuits |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - MAX4644EUA |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 4Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 15ns, 5ns |
| -3db Bandwidth | - |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -82dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP |
| Base Product Number | MAX4644 |

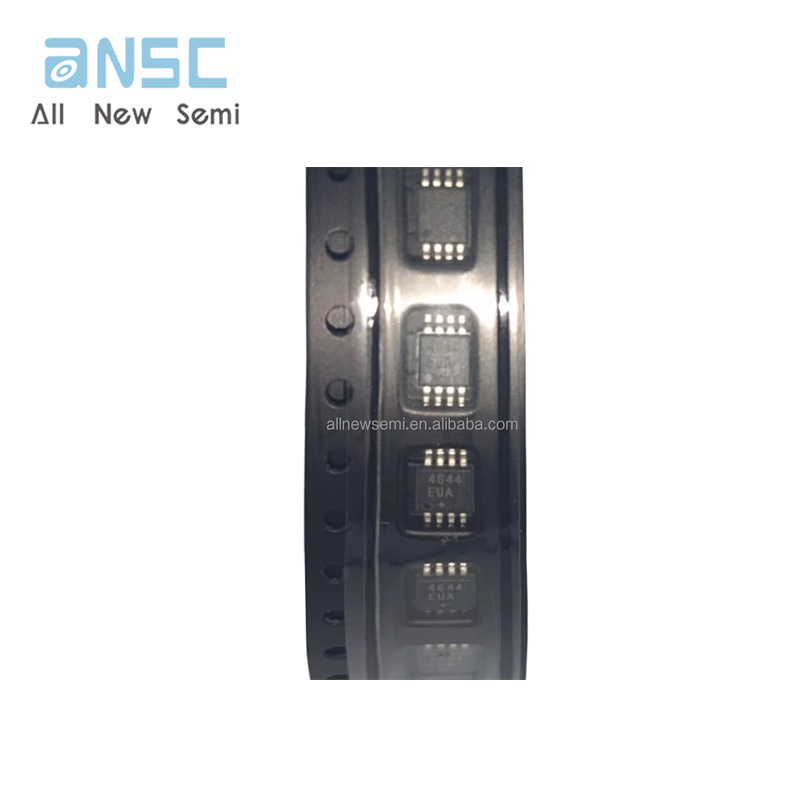

Actual image of the product

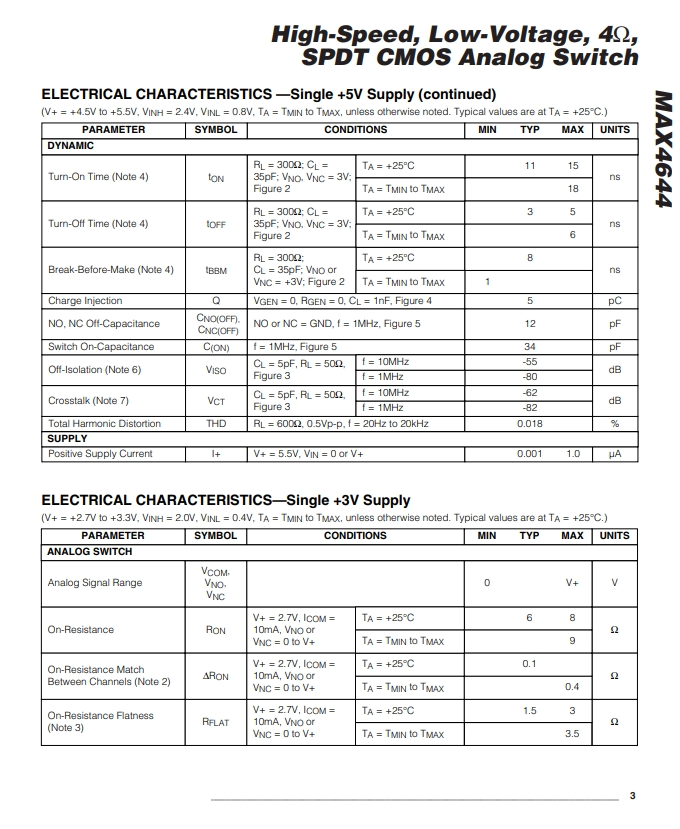

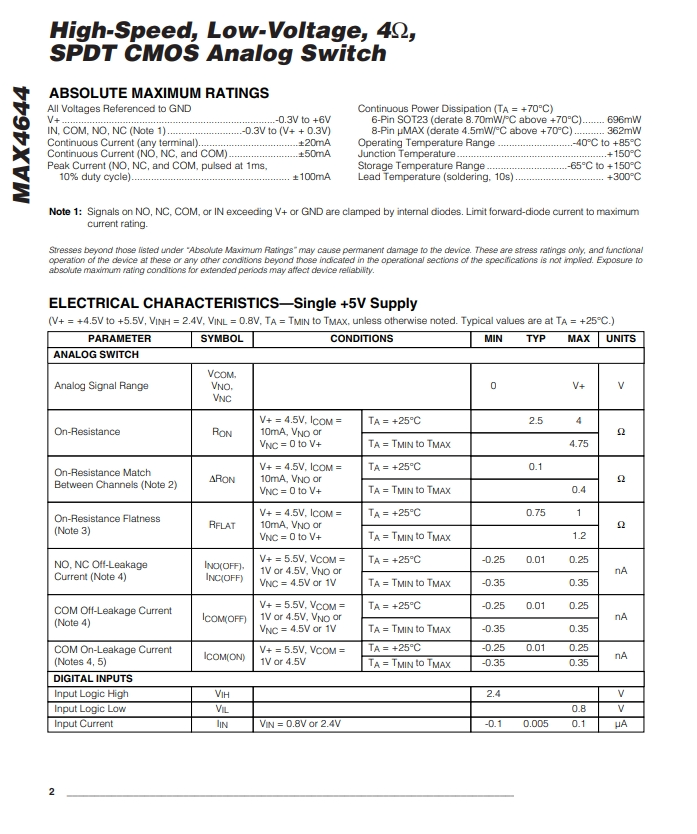

Product datasheet
For more information, please download
