Hot sale Original MC672P NAND Gate, HTL Series, 4-Func, 2-Input, PDIP14

Manufacturer Product Number

MC672P

Description

MC672P NAND Gate, HTL Series, 4-Func, 2-Input, PDIP14

Package Condition

tube

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Type#	Description
ANSC PART#	ANSC - MC672P
Package Description	Dip, Dip14,.3
Reach Compliance Code	Unknown
HTS Code	8542.39.00.01
Family	Htl
Length	18.86 Mm
Logic IC Type	Nand Gate
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	70 °C
Operating Temperature-Min	-30 °C
Package Body Material	Plastic/Epoxy
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	Rectangular
Package Style	In-Line
Qualification Status	Not Qualified
Schmitt Trigger	No
Seated Height-Max	5.08 Mm
Supply Voltage-Max (Vsup)	16 V
Supply Voltage-Min (Vsup)	14 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	No
Temperature Grade	Other
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	Through-Hole
Terminal Pitch	2.54 Mm
Terminal Position	Dual
Width	7.62 Mm

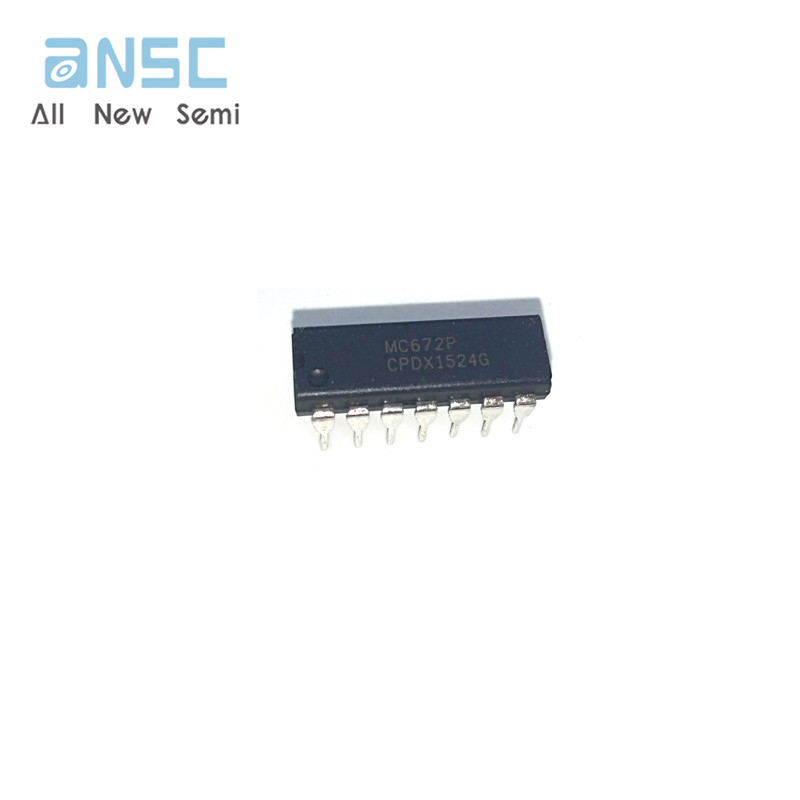

Actual image of the product

MC672P

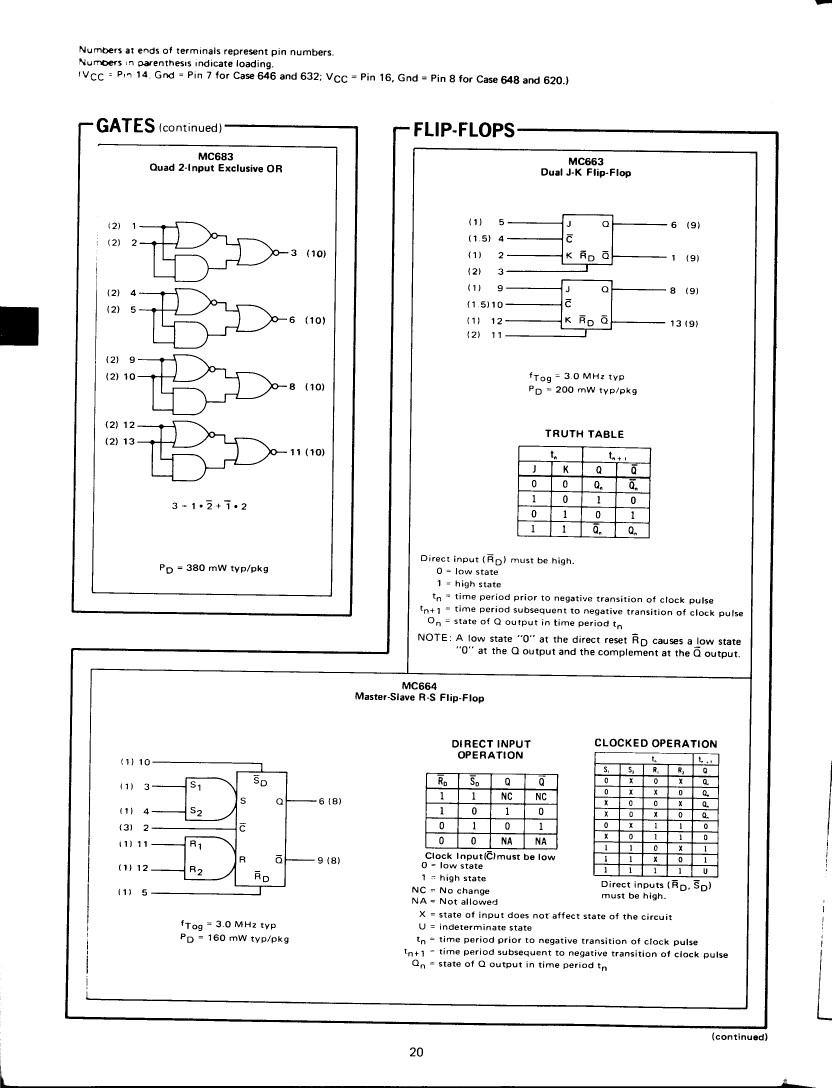

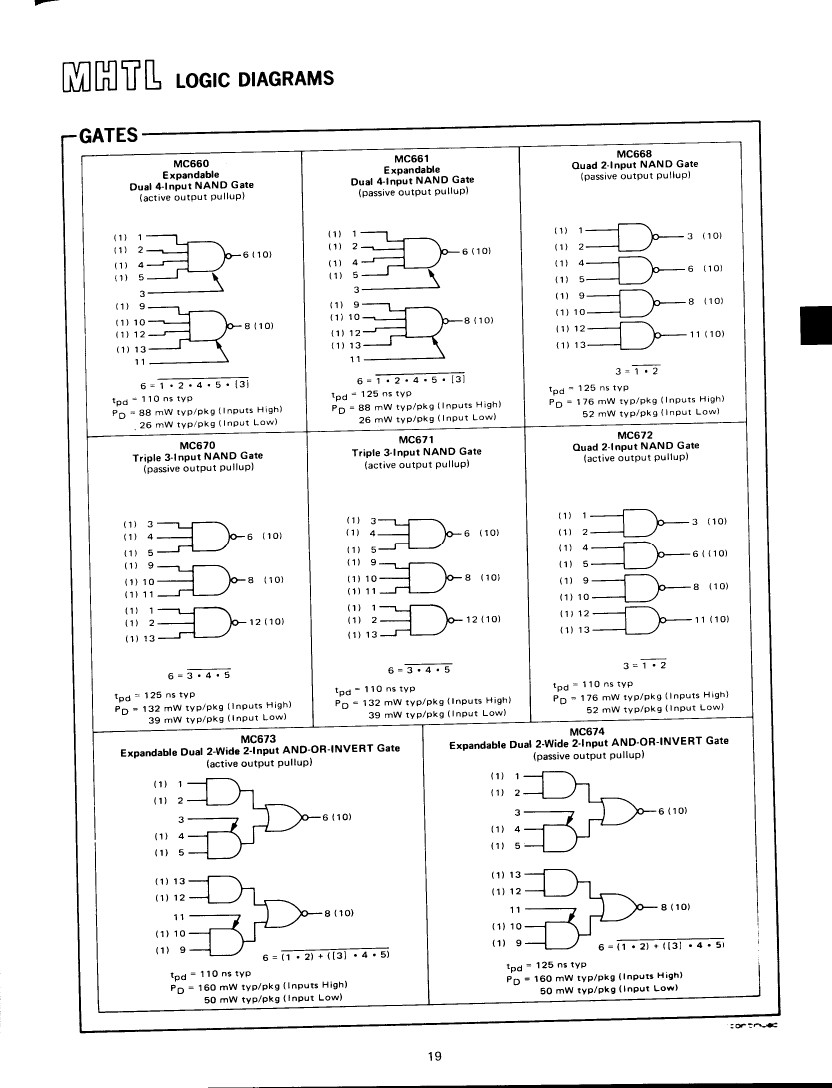

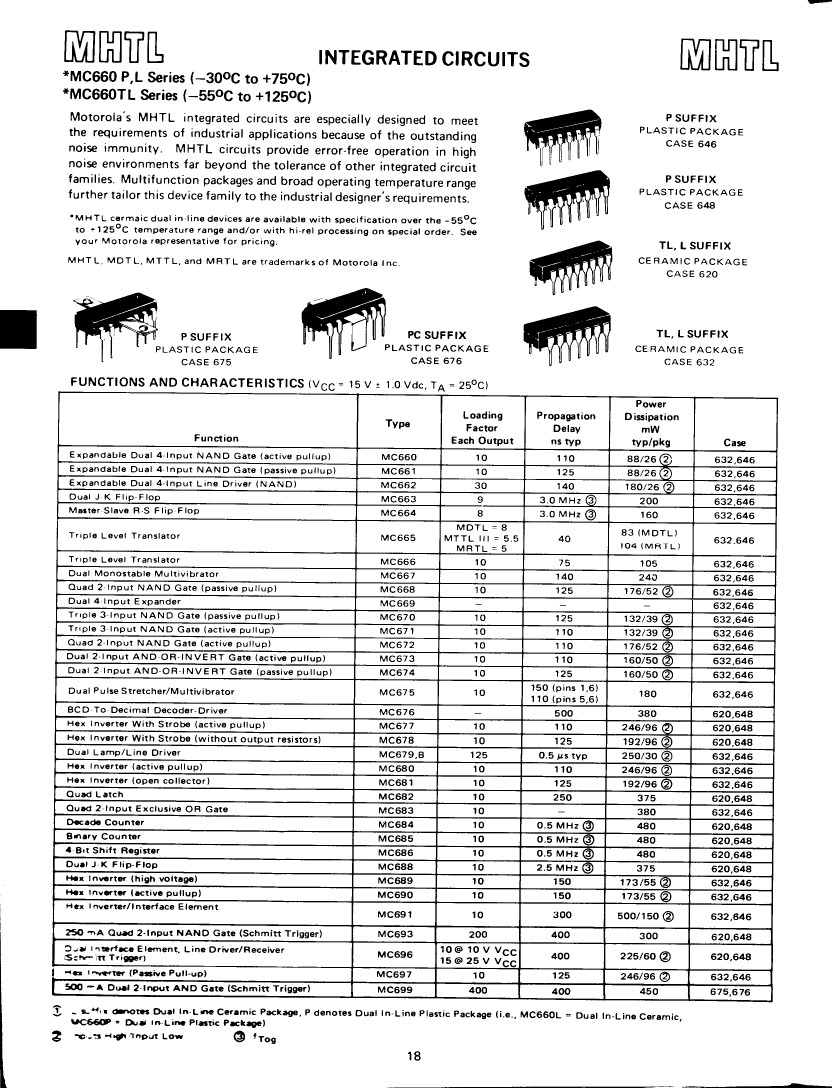

Product datasheet

For more information, please download
