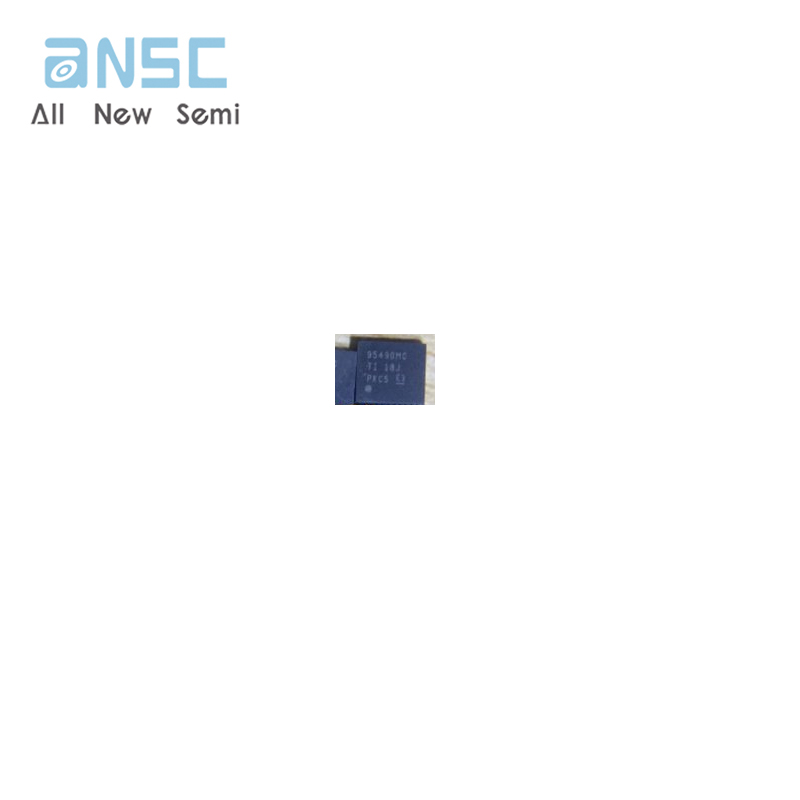

Hot sale Original CSD95490Q5MC PMIC IC HALF BRIDGE DRIVER 75A Half Bridge (3) Driver Synchronous Buck Converters
Manufacturer Product Number
CSD95490Q5MC
Description
CSD95490Q5MC IC HALF BRIDGE DRIVER 75A 12VSON
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
The CSD95490Q5MC is a NexFET? full-bridge driver IC designed for synchronous buck converters. This highly efficient and reliable IC is built with a pulse-width modulation (PWM) control technique and features a bootstrap circuit for enhanced performance. With a maximum input voltage of 16V and a minimum input voltage of 4.5V, this IC is suitable for a wide range of applications.
Product Features
Bootstrap circuit for enhanced performance
Pulse-width modulation (PWM) control technique
Shoot-through fault protection
Compatible with inductive and capacitive loads
Operating temperature range of -40°C to 125°C
RoHS3 compliant and Pb-free
Surface-mount package with 12 pins and 12 terminations
Product Applications
Primary applications: Synchronous buck converters
Secondary applications:
Other switching regulators and power conversion systems
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - CSD95490Q5MC |
|
Category |
Integrated Circuits (ICs) Power Management (PMIC) Full Half-Bridge (H Bridge) Drivers |
|
Manufacturer |
/ |
|
Series |
NexFET™ |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Output Configuration |
Half Bridge (3) |
|
Applications |
Synchronous Buck Converters |
|
Interface |
PWM |
|
Load Type |
Inductive, Capacitive |
|
Technology |
Power MOSFET |
|
Rds On (Typ) |
- |
|
Current - Output / Channel |
75A |
|
Current - Peak Output |
105A |
|
Voltage - Supply |
4.5V ~ 5.5V |
|
Voltage - Load |
4.5V ~ 16V |
|
Operating Temperature |
-40°C ~ 125°C (TJ) |
|
Features |
Bootstrap Circuit |
|
Fault Protection |
Shoot-Through |
|
Mounting Type |
Surface Mount |
|
Package / Case |
12-PowerTFDFN |
|
Supplier Device Package |
12-VSON-CLIP (5x6) |
|
Base Product Number |
CSD95490 |
