TPS3808G01DBVR Low Quiescent Current Programmable-Delay Supervisory Circuit SOT23-6 spot stock

Product Descriptions

The TPS3808xxx family of microprocessor supervisory circuits monitor system voltages from 0.4V to 5.0V, asserting an open drain RESET signal when the SENSE voltage drops below a preset threshold or when the manual reset (MR) pin drops to a logic low. The RESET output remains low for the user adjustable delay time after the SENSE voltage and manual reset (MR) return above their thresholds.

The TPS3808 uses a precision reference to achieve 0.5% threshold accuracy for VIT ≤ 3.3V. The reset delay time can be set to 20ms by disconnecting the CT pin, 300ms by connecting the CT pin to VDD using a resistor, or can be user-adjusted between 1.25ms and 10s by connecting the CT pin to an external capacitor. The TPS3808 has a very low typical quiescent current of 2.4µA so it is well-suited to battery-powered applications. It is available in a small SOT23 and an ultra-small 2mm × 2mm QFN PowerPAD™ package and is fully specified over a temperature range of –40°C to +125°C (TJ) .

Product Features

• Power-On Reset Generator with Adjustable Delay Time: 1.25ms to 10s

• Very Low Quiescent Current: 2.4µA typ

• High Threshold Accuracy: 0.5% typ

• Fixed Threshold Voltages for Standard Voltage Rails from 0.9V to 5V and Adjustable Voltage Down to 0.4V Are Available

• Manual Reset (MR) Input

• Open-Drain RESET Output

• Temperature Range: –40°C to +125°C

• Small SOT23 and 2mm × 2mm QFN Packages

Product Applications

• DSP or Microcontroller Applications

• Notebook/Desktop Computers

• PDAs/Hand-Held Products

• Portable/Battery-Powered Products

• FPGA/ASIC Applications

​

Product Specification

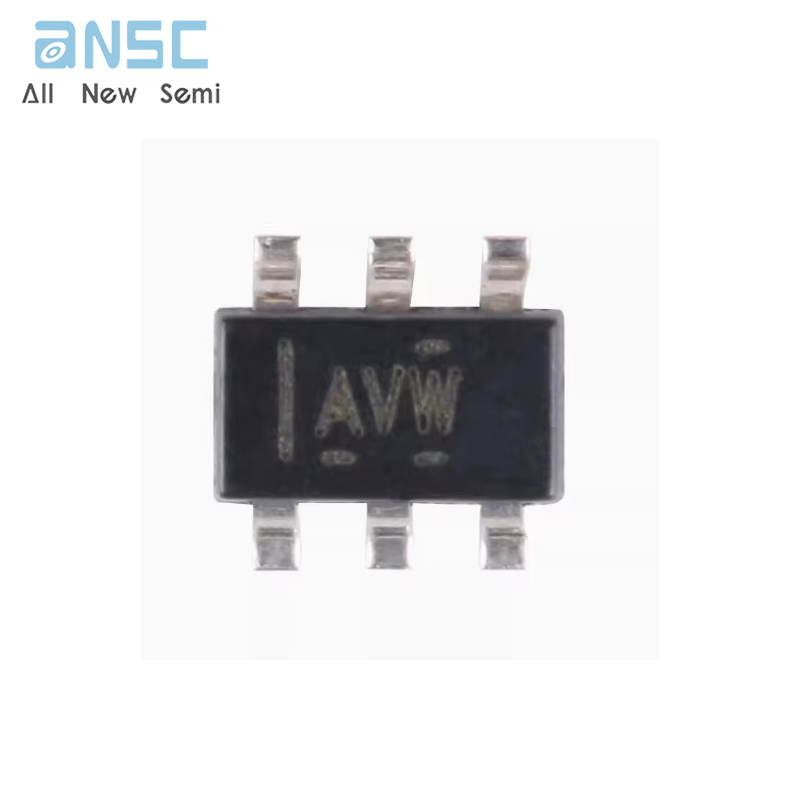

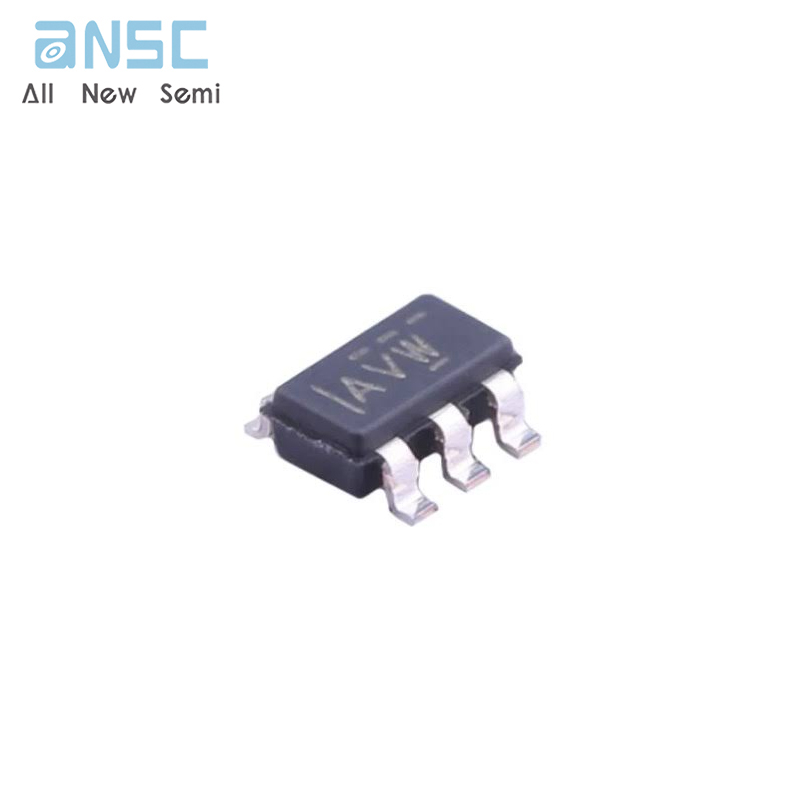

Product Photos

For more product information, please download the PDF
