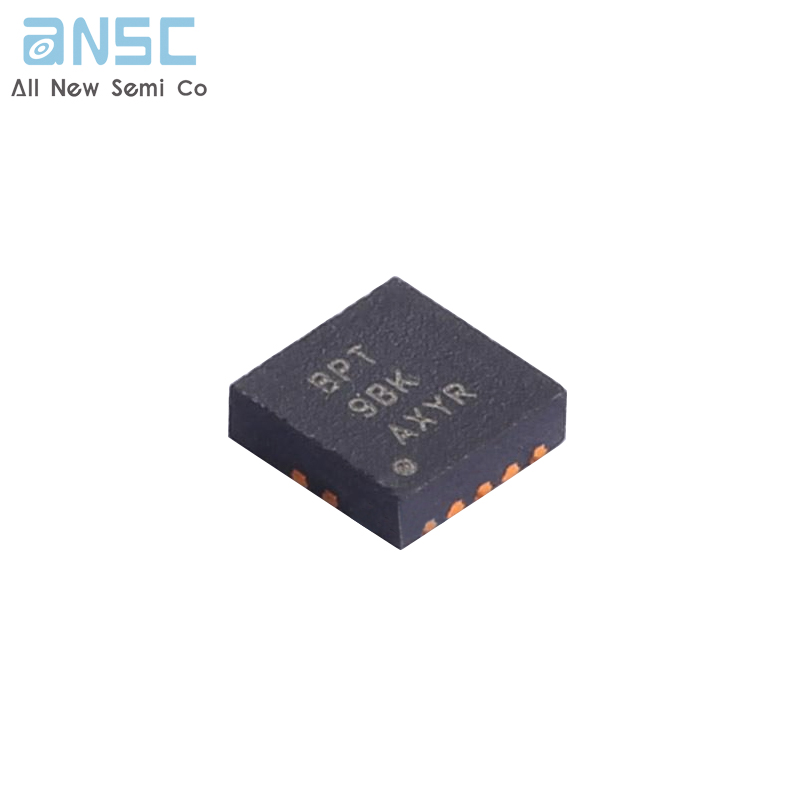

High efficiency single inductor buck-boost converter with 1.8A switch Integrated circuit IC TPS63000DRCR

Manufacturer Product Number

TPS63000DRCR

Description

IC REG BUCK BST ADJ 1.6A 10VSON

Package Condition

Tape and Reel

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Features

• Input Voltage Range: 1.8 V to 5.5 V

• Fixed and Adjustable Output Voltage Options from 1.2 V to 5.5 V

• Up to 96% Efficiency

• 1200-mA Output Current at 3.3 V in Step-Down Mode (VIN = 3.6 V to 5.5 V)

• Up to 800-mA Output Current at 3.3 V in Boost Mode (VIN > 2.4 V)

• Automatic Transition Between Step-Down and Boost Mode

• Device Quiescent Current less than 50 μA

• Power-Save Mode for Improved Efficiency at Low Output Power

• Forced Fixed Frequency Operation and Synchronization Possible

• Load Disconnect During Shutdown

• Overtemperature Protection

• Available in a Small 3-mm × 3-mm 10-Pin VSON Package (QFN)

Product Applications

• All Two-Cell and Three-Cell Alkaline, NiCd or NiMH or Single-Cell Li Battery Powered Products

• Portable Audio Players

• Smart Phones

• Personal Medical Products

• White LEDs

Specifications

ANSM-Part#	TPS63000DRCR
category	Integrated Circuit (IC)
category	PMIC - Voltage Regulators - DC DC Switching Regulators
manufacturer	-
Package	Tape and Reel (TR)
Package	Shear Band (CT)
product status	in stock
Function	Boost/buck
output configuration	just
output type	adjustable
Number of outputs	1
Voltage - Input (Min)	1.8V
Voltage - Input (Max)	5.5V
Voltage - Output (min/fixed)	1.2V
Voltage - Output (Maximum)	5.5V
Current - Output	1.6A (switch)
Frequency - switch	1.25MHz ~ 1.5MHz
Operating temperature	-40 ° C ~ 85 ° C
installation type	Surface Mount Type
Package/Enclosure	10-VFDFN Exposed Pad
Supplier Device Packaging	10-VSON(3x3)
Basic product number	TPS63000

Actual product photos
