Hot sale original ADUC812BSZ-REEL IC 8-bit Microcontrollers - MCU 12-BIT ADC WITH EMBEDDED MCU

Manufacturer Product Number
ADUC812BSZ-REEL
Description

ADUC812BSZ-REEL IC 8-bit Microcontrollers - MCU 12-BIT ADC WITH EMBEDDED MCU

Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

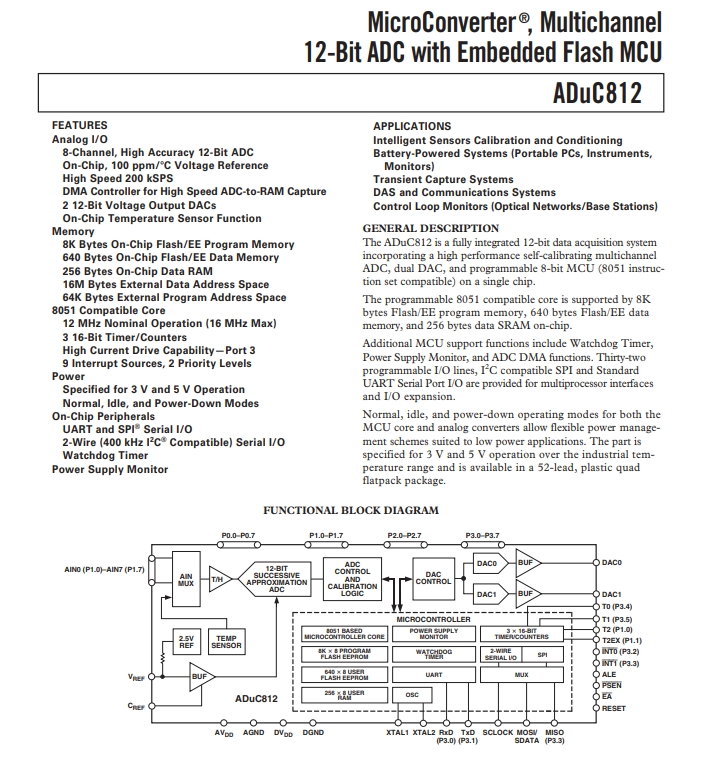

GENERAL DESCRIPTION
The ADuC812 is a fully integrated 12-bit data acquisition system incorporating a high performance self-calibrating multichannel ADC, dual DAC, and programmable 8-bit MCU (8051 instruction set compatible) on a single chip.

FEATURES
Analog I/O
8-Channel, High Accuracy 12-Bit ADC
On-Chip, 100 ppm/°CC Voltage Reference
High Speed 200 kSPS
DMA Controller for High Speed ADC-to-RAM Capture
2 12-Bit Voltage Output DACs
On-Chip Temperature Sensor Function
Memory
8K Bytes On-Chip Flash/EE Program Memory
640 Bytes On-Chip Flash/EE Data Memory
256 Bytes On-Chip Data RAM
16M Bytes External Data Address Space
64K Bytes External Program Address Space
8051 Compatible Core
12 MHz Nominal Operation (16 MHz Max)
3 16-Bit Timer/Counters
High Current Drive Capability—Port 3
9 Interrupt Sources, 2 Priority Levels
Power
Specified for 3 V and 5 V Operation
Normal, Idle, and Power-Down Modes
On-Chip Peripherals
UART and SPI® Serial I/O
2-Wire (400 kHz I2C® Compatible) Serial I/O
Watchdog Timer
Power Supply Monitor

APPLICATIONS
Intelligent Sensors Calibration and Conditioning
Battery-Powered Systems (Portable PCs, Instruments,
Monitors)
Transient Capture Systems
DAS and Communications Systems
Control Loop Monitors (Optical Networks/Base Stations)

Product Description

TYPE# DESCRIPTION
ANSC PART# ANSC - ADUC812BSZ-REEL
Category Integrated Circuits (ICs)
Embedded
Microcontrollers
Mfr Original
Series MicroConverter® ADuC8xx
Packaging Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
DigiKey Programmable Verified
Core Processor 8052
Core Size 8-Bit
Speed 16MHz
Connectivity I2C, SPI, UART/USART
Peripherals PSM, Temp Sensor, WDT
Number of I/O 34
Program Memory Size 8KB (8K x 8)
Program Memory Type FLASH
EEPROM Size 640 x 8
RAM Size 256 x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Data Converters A/D 8x12b; D/A 2x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Grade -
Qualification -
Mounting Type Surface Mount
Supplier Device Package 52-MQFP (10x10)
Package / Case 52-QFP
Base Product Number ADUC812

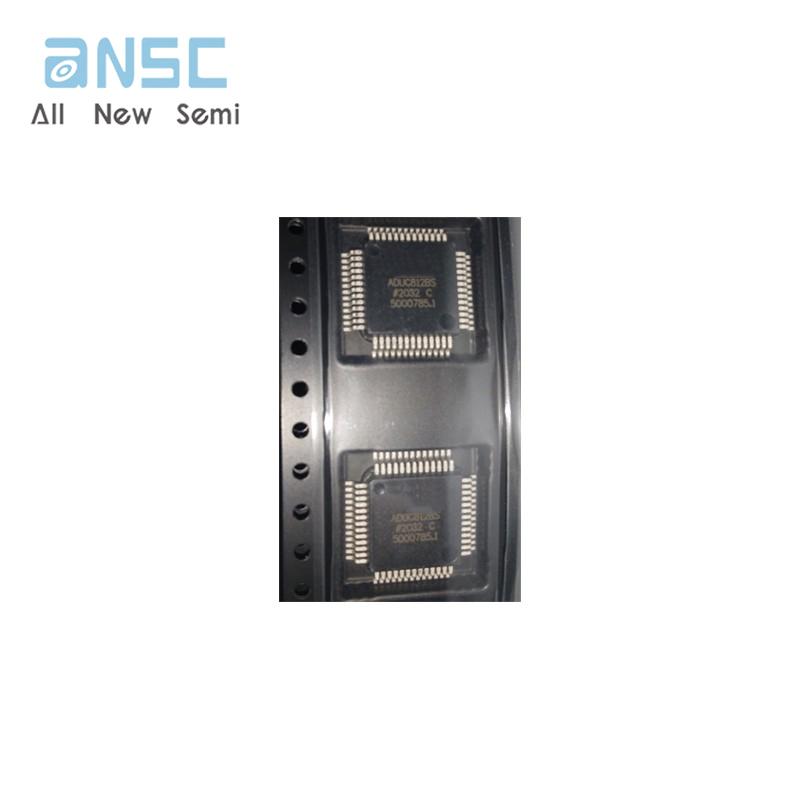

Product Photos

ADUC812BSZ-REEL

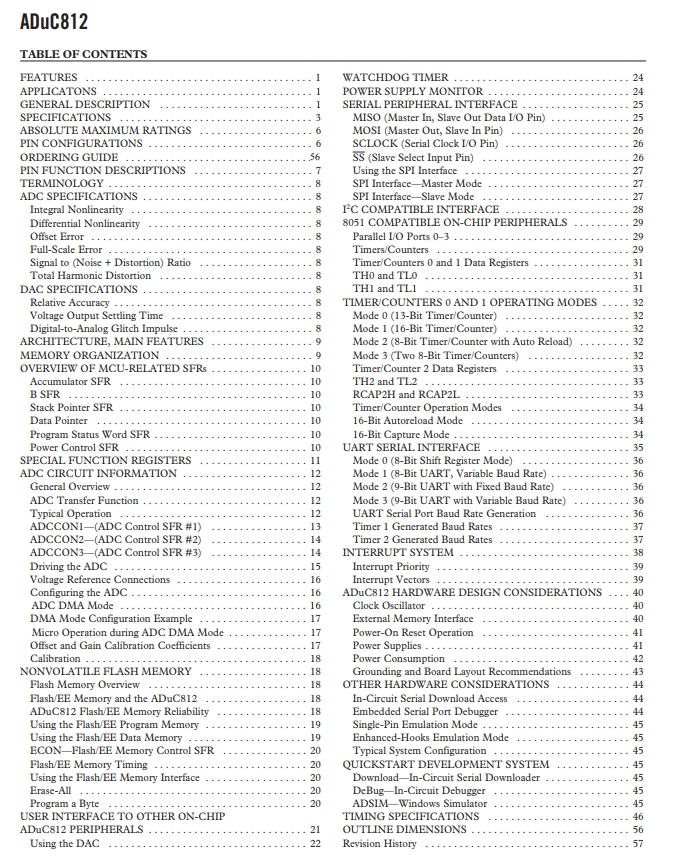

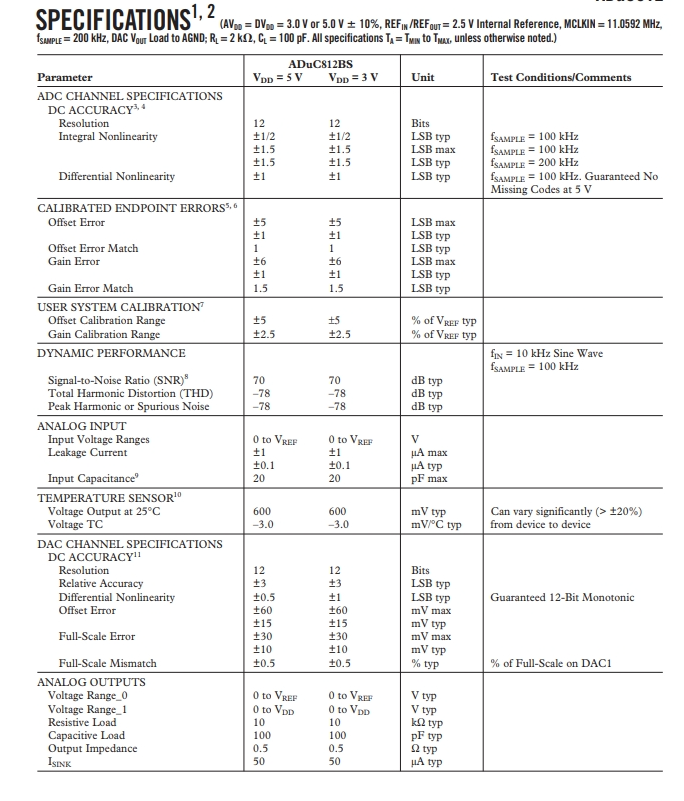

Product datasheet

For more information, please download
