Hot sale Original CY8C29566-24AXI IC MCU 8BIT 32KB FLASH 44TQFP Microcontroller IC 8-Bit 24MHz 32KB (32K x 8) FLASH
Manufacturer Product Number
CY8C29566-24AXI
Description
CY8C29566-24AXI IC MCU 8BIT 32KB FLASH 44TQFP Microcontroller IC 8-Bit 24MHz 32KB (32K x 8) FLASH 44-TQFP (10x10)
Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Overview These CapSense Express™ controllers support four to ten capacitive sensing (CapSense) buttons. The device functionality is configured through an I2C port and can be stored in onboard nonvolatile memory for automatic loading at power-on. The CY8C20110 is optimized for dimming LEDs in 15 selectable duty cycles for back light applications. The device can be configured to have up to 10 GPIOs connected to the PWM output. The PWM duty cycle is programmable for variable LED intensities. Features ■10/8/6/4 capacitive button input ❐Robust sensing algorithm ❐High sensitivity, low noise ❐Immunity to RF and AC noise ❐Low radiated EMC noise ❐Supports wide range of input capacitance, sensor shapes, and sizes ■Target applications ❐Printers ❐Cellular handsets ❐LCD monitors ❐Portable DVD players ■Low operating current ❐Active current: continuous sensor scan: 1.5 mA ❐Deep sleep current: 4 µA ■Industry's best configurability ❐Custom sensor tuning, one optional capacitor ❐Output supports strong drive for LED ❐Output state can be controlled through I2C or directly from CapSense® input state ❐Run time reconfigurable over I2C ■Advanced features ❐All GPIOs support LED dimming with configurable delay option in CY8C20110 ❐Interrupt outputs ❐User defined inputs ❐Wake on interrupt input ❐Sleep control pin ❐Nonvolatile storage ofcustom settings ❐Easy integration into existing products – configure output to match system ❐No external components required ❐World class free configuration tool ■Wide range of operating voltages ❐2.4 V to 2.9 V ❐3.10 V to 3.6 V ❐4.75 V to 5.25 V ■I2C communication ❐Supported from 1.8 V ❐Internal pull-up resistor support option ❐Data rate up to 400 kbps ❐Configurable I2C addressing ■Industrial temperature range: –40 °C to +85 °C. ■Available in 16-pin QFN, 8-pin, and 16-pin SOIC packages |
Product Description
| Type | Description |
| ANSC PART# | ANSC- CY8C29566-24AXI |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Original |
| Series | PSOC™1 CY8C29xxx |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Verified |
| Core Processor | M8C |
| Core Size | 8-Bit |
| Speed | 24MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 40 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.25V |
| Data Converters | A/D 12x14b; D/A 4x9b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-TQFP (10x10) |
| Package / Case | 44-LQFP |
| Base Product Number | CY8C29566 |

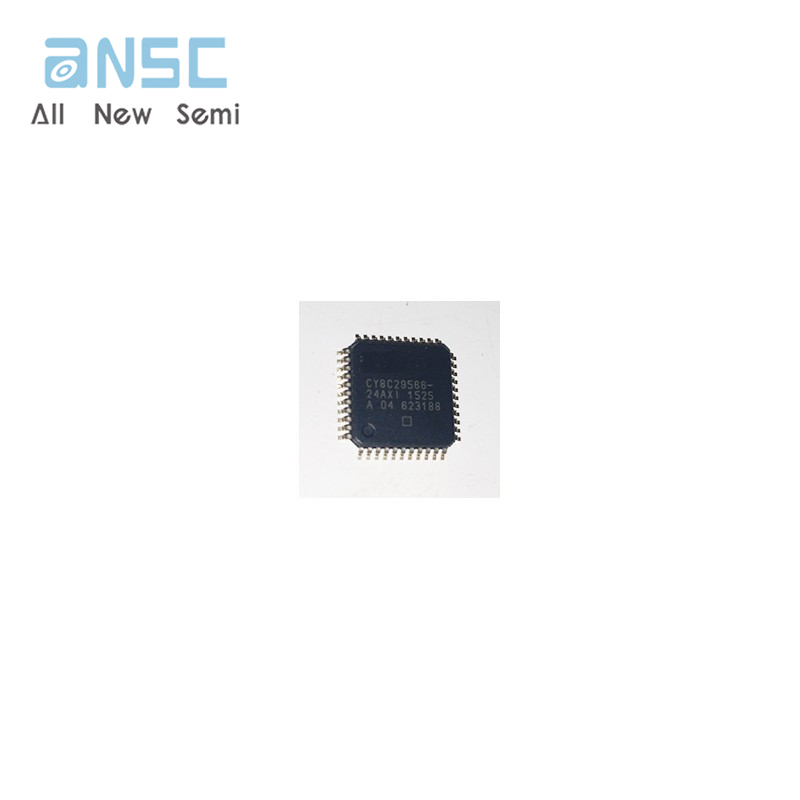

Actual image of the product

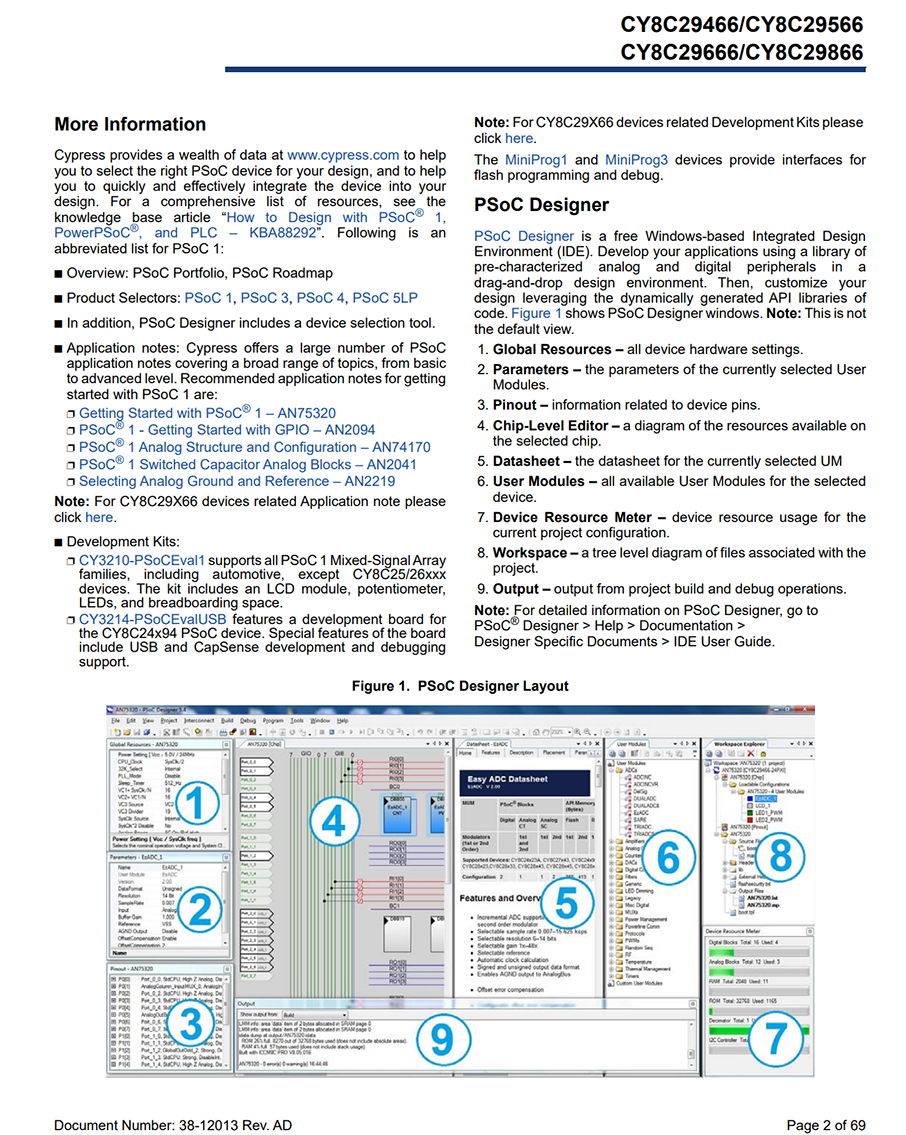

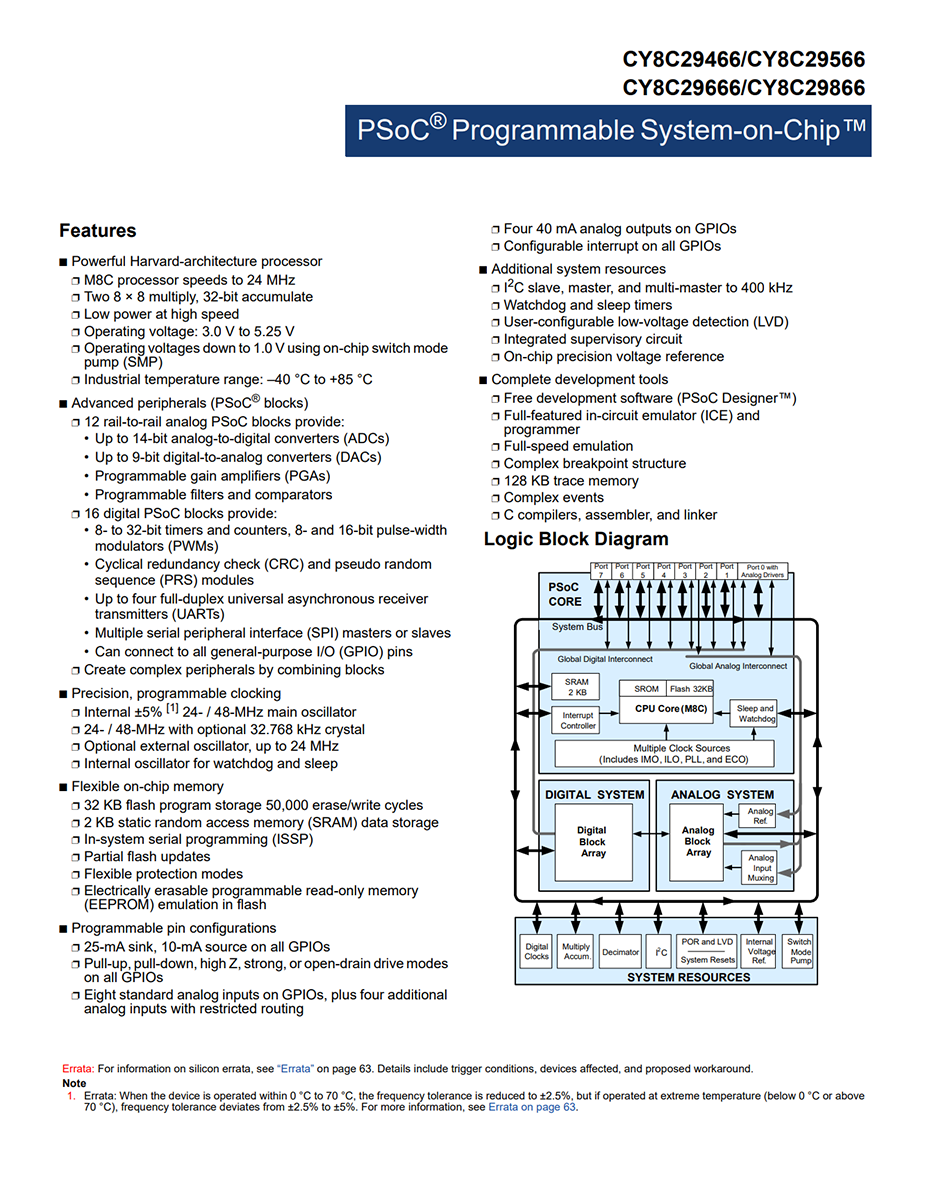

Product datasheet
