Hot-selling and scarce ADUC7026BST62 Precision Analog Microcontroller QFP80 spot stock

Product Features

Analog I/O

Multi-Channel, 12-bit, 1MSPS ADC

- Up to 16 ADC channels *

Fully differential and single-ended modes

0 to VREF Analog Input Range

12-bit Voltage Output DACs

- Up to 4 DAC outputs available*

On-Chip 20ppm/°C Voltage Reference

On-Chip Temperature Sensor (±3°C)

Uncommitted Voltage Comparator

Microcontroller

ARM7TDMI Core, 16/32-bit RISC architecture

JTAG Port supports code download and debug

Clocking options: - Trimmed On-Chip Oscillator (± 3%)

- External Watch crystal

- External clock source

45MHz PLL with Programmable Divider

Memory

62k Bytes Flash/EE Memory, 8k Bytes SRAM

In-Circuit Download,JTAG based Debug

Software triggered in-circuit re-programmability

On-Chip Peripherals

UART, 2 X I2C and SPI Serial I/O

Up to 40-Pin GPIO Port*

4 X General Purpose Timers

Wake-up and Watchdog Timers

Power Supply Monitor

Three-phase 16-bit PWM generator*

PLA – Programmable Logic (Array)

Power

Specified for 3V operation

Active Mode:     3mA (@1MHz)

50mA (@45MHz)

Packages and Temperature Range

From 40 lead 6x6mm LFCSP to 80 pin LQFP*

Fully specified for –40°C to 125°C operation

Tools

Low-Cost QuickStart Development System

Full Third-Party Support

Product Applications

Industrial Control and Automation Systems

Smart Sensors, Precision Instrumentation

Base Station Systems, Optical Networking

​

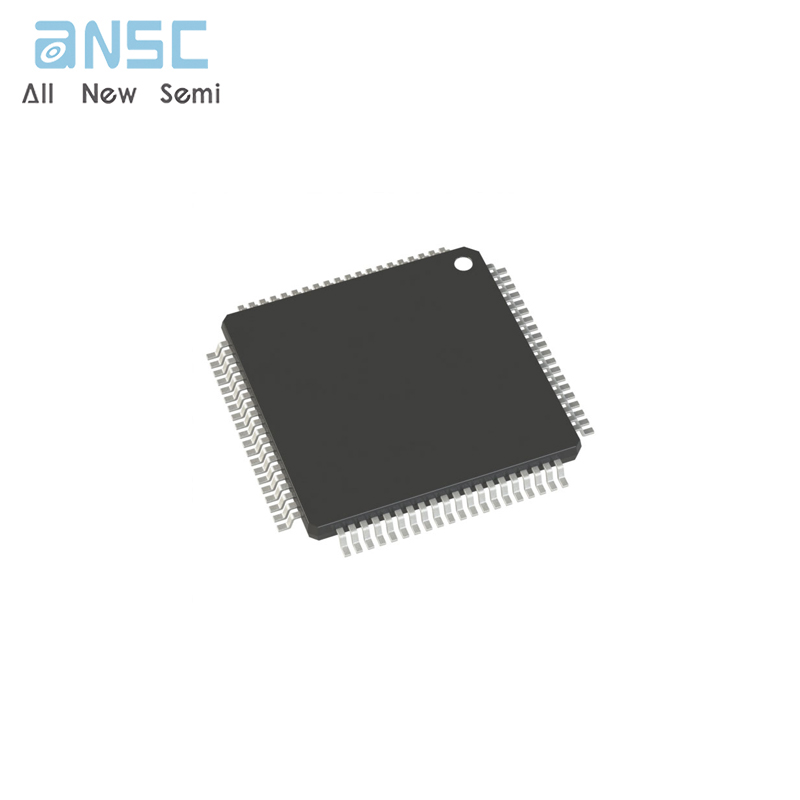

Product Photos

For more product information, please download the PDF
