Hot-selling and scarce N80C196KB16 COMMERCIAL/EXPRESS CHMOS MICROCONTROLLER PLCC68 spot stock

Product Descriptions

The 8XC196KB is a 16-bit microcontroller available in three different memory varieties ROMless (80C196KB)8K ROM (83C196KB) and 8K OTP (One Time Programmable87C196KB) The 8XC196KB is a high performance member of the MCS 96 microcontroller family The 8XC196KB has the same peripheral set as the8096BH and has a true superset of the 8096BH instructions Intel’s CHMOS process provides a high performance processor along with low power consumption To further reduce power requirements the processor can be placed into Idle or Powerdown Mode

Bit byte word and some 32-bit operations are available on the 80C196KB With a 16 MHz oscillator a 16-bit addition takes 050 ms and the instruction times average 037 ms to 11 ms in typical applications

Four high-speed capture inputs are provided to record times when events occur Six high-speed outputs are available for pulse or waveform generation The high-speed output can also generate four software timers or start an AD conversion Events can be based on the timer or updown counter Also provided on-chip are an AD converter serial port watchdog timer and a pulse-width-modulated output signal

The 8XC196KB has a maximum guaranteed frequency of 12 MHz The 8XC196KB16 has a maximum guaranteed frequency of 16 MHz All references to the 80C196KB also refer to the 80C196KB16 83C196KB Rxxx87C196KB and 87C196KB16 unless otherwise noted The ROM device does not have a speed indicator at the end of the device name Instead it has a ROM code number

With the commercial (standard) temperature option operational characteristics are guaranteed over the temperature range of 0C to a 70C With the extended temperature range option operational characteristics are guaranteed over the temperature range of  b 40C to  a 85C

Product Features

Y    8 Kbytes of On-Chip ROMOTP Available

Y    232 Byte Register File

Y    Register-to-Register Architecture

Y    28 Interrupt Sources16 Vectors

Y    175 ms 16 x 16 Multiply (16 MHz)

Y    30 ms 3216 Divide (16 MHz)

Y    Powerdown and Idle Modes

Y    Five 8-Bit IO Ports

Y    16-Bit Watchdog Timer

Y    12 MHz and 16 MHz Available

Y    Dedicated 15-Bit Baud Rate Generator

Y    Dynamically Configurable 8-Bit or 16-Bit Buswidth

Y    Full Duplex Serial Port

Y    High Speed IO Subsystem

Y    16-Bit Timer

Y    16-Bit UpDown Counter with Capture

Y    Pulse-Width-Modulated Output

Y    Four 16-Bit Software Timers

Y    10-Bit AD Converter with SampleHold

Y    HOLDHLDA Bus Protocol

Y    Extended Temperature Available

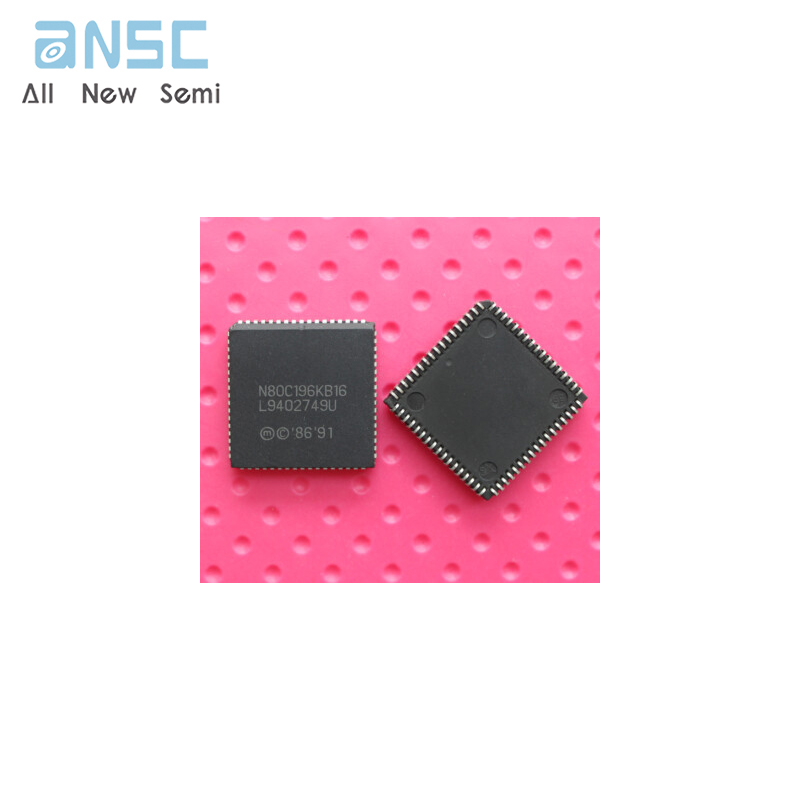

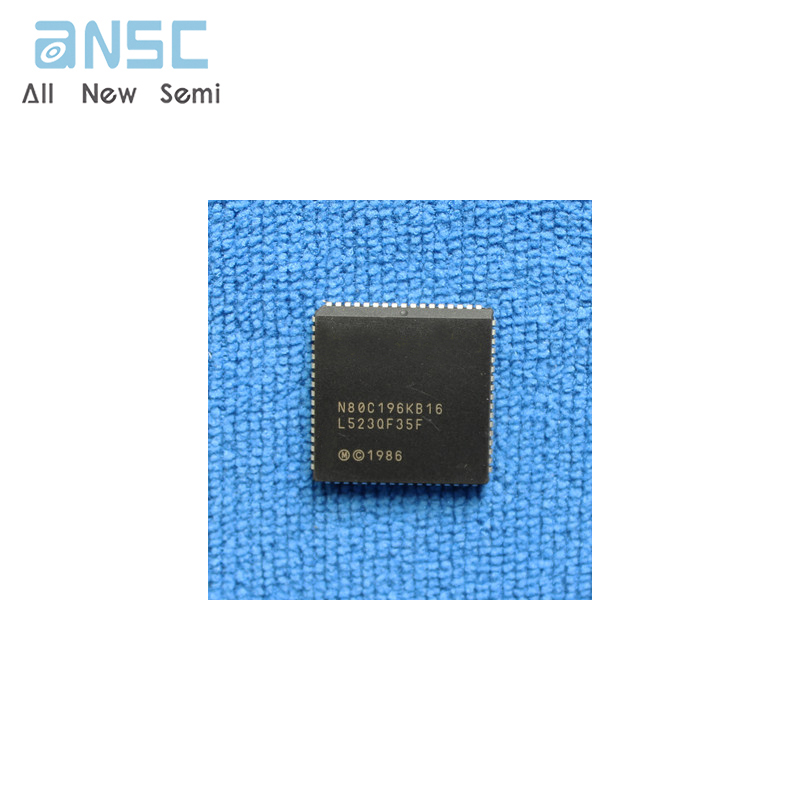

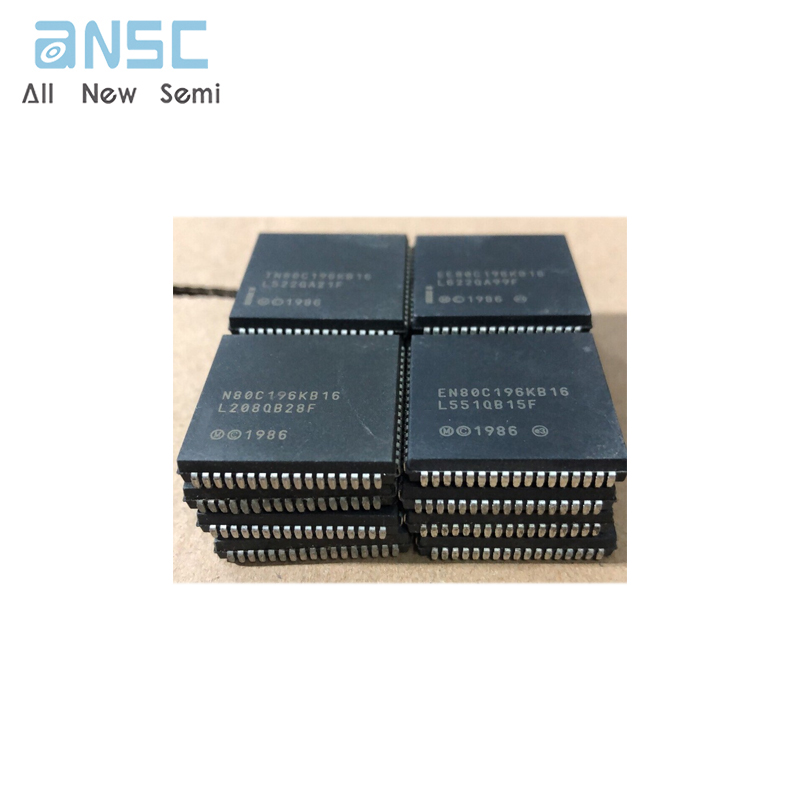

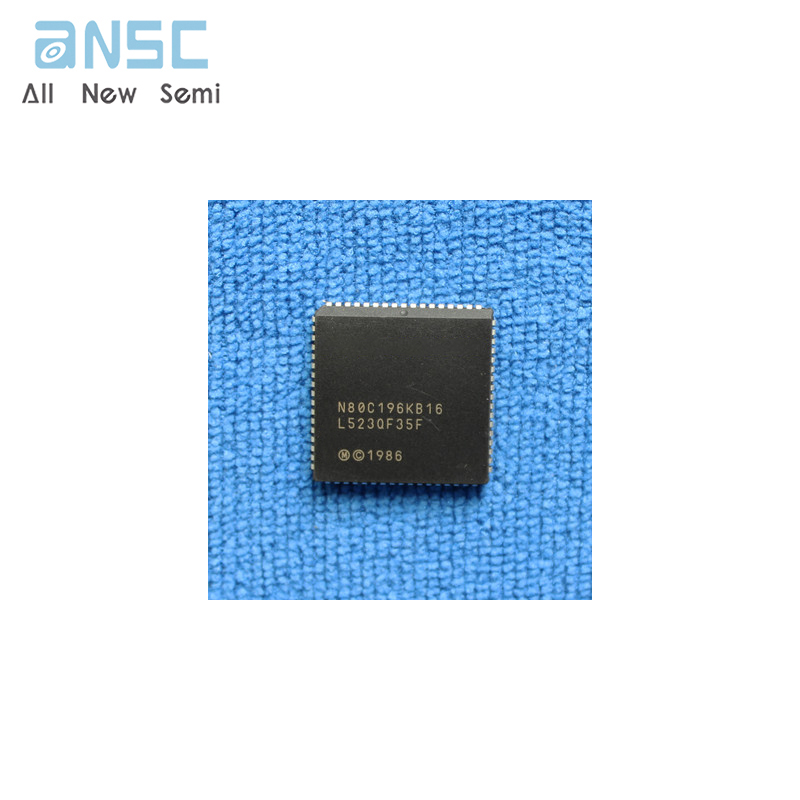

Product Photos

For more product information, please download the PDF
