Hot sale Original ATMEGA88PA-AU IC MCU 8BIT 8KB FLASH 32TQFP AVR AVR® ATmega Microcontroller IC 8-Bit 20MHz 8KB FLASH 32-TQFP

Manufacturer Product Number
ATMEGA88PA-AU
Description

ATMEGA88PA-AU IC MCU 8BIT 8KB FLASH 32TQFP AVR AVR® ATmega Microcontroller IC 8-Bit 20MHz 8KB (4K x 16) FLASH 32-TQFP

Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

​

Description
The ATmega48A/PA/88A/PA/168A/PA/328/P is an 8-bit CMOS microcontroller based on the AVR® enhanced RISC architecture. The devices achieve CPU throughput approaching one million instructions per second (MIPS) per megahertz by executing instructions in a single clock cycle, allowing the system designer to optimize power consumption vs processing performance.



Features
High Performance, Low Power AVR® 8-Bit Microcontroller Family
Advanced RISC Architecture
-131 Powerful Instructions – Most Single Clock Cycle Execution
-32 x 8 General Purpose Working Registers
-Fully Static Operation
-Up to 20 MIPS Throughput at 20MHz
-On-chip 2-cycle Multiplier
High Endurance Non-volatile Memory Segments
-4/8/16/32KBytes of In-System Self-Programmable Flash program memory
-256/512/512/1KBytes EEPROM
-512/1K/1K/2KBytes Internal SRAM
-Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
-Data retention: 20 years at 85°C/100 years at 25°C(1)
-Optional Boot Code Section with Independent Lock Bits
In-System Programming by On-chip Boot Program
True Read-While-Write Operation
-Programming Lock for Software Security
QTouch® library support
-Capacitive touch buttons, sliders and wheels
-QTouch and QMatrix™ acquisition
-Up to 64 sense channels
Peripheral Features
-Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
-One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
-Real Time Counter with Separate Oscillator
-Six PWM Channels
-8-channel 10-bit ADC in TQFP and VQFN package

Temperature Measurement
-6-channel 10-bit ADC in SPDIP Package
Temperature Measurement
-Programmable Serial USART
-Master/Slave SPI Serial Interface
-Byte-oriented 2-wire Serial Interface (Philips I2C compatible)
-Programmable Watchdog Timer with Separate On-chip Oscillator
-On-chip Analog Comparator
-Interrupt and Wake-up on Pin Change
Special Microcontroller Features
-Power-on Reset and Programmable Brown-out Detection
-Internal Calibrated Oscillator
-External and Internal Interrupt Sources
-Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby
I/O and Packages
-23 Programmable I/O Lines
-28-pin SPDIP, 32-lead TQFP, 28-pad VQFN and 32-pad VQFN
Operating Voltage:
-1.8 - 5.5V
Temperature Range:
-40°C to 85°C
Speed Grade:
-0 - 4MHz@1.8 - 5.5V, 0 - 10MHz@2.7 - 5.5.V, 0 - 20MHz @ 4.5 - 5.5V
Power Consumption at 1MHz, 1.8V, 25°C
-Active Mode: 0.2mA
-Power-down Mode: 0.1µA

Product Description

Type Description
ANSC PART# ANSC - ATMEGA88PA-AU
Category Integrated Circuits (ICs)
Embedded
Microcontrollers
Mfr Original
Series AVR® ATmega
Packaging Tray
Part Status Active
DigiKey Programmable Verified
Core Processor AVR
Core Size 8-Bit
Speed 20MHz
Connectivity I2C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 23
Program Memory Size 8KB (4K x 16)
Program Memory Type FLASH
EEPROM Size 512 x 8
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package 32-TQFP (7x7)
Package / Case 32-TQFP
Base Product Number ATMEGA88

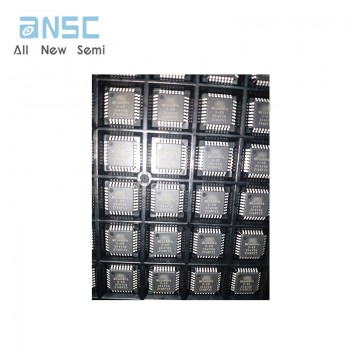

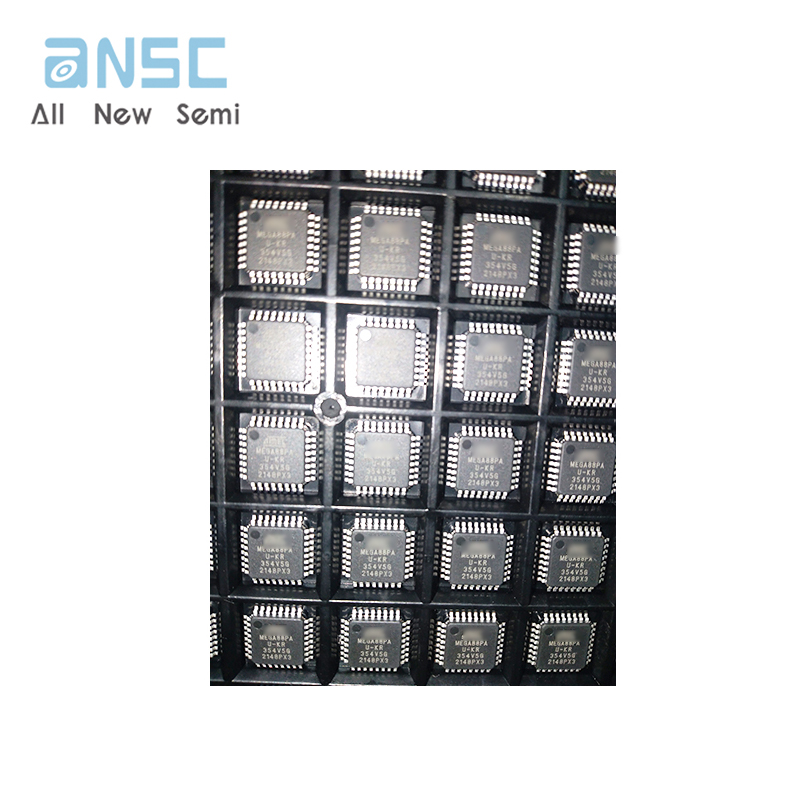

Product Photos

ATMEGA88PA-AU

Product datasheet

For more information, please download
