Professional supply Integrated circuit MC9S12XDG128MAL HCS12X HCS12X Microcontroller IC 16-Bit 80MHz 128KB FLASH 112-LQFP

Product Features

• HCS12X Core

— 16-bit HCS12X CPU

– Upward compatible with MC9S12 instruction set

– Interrupt stacking and programmer’s model identical to MC9S12

– Instruction queue

– Enhanced indexed addressing

– Enhanced instruction set

— EBI (external bus interface)

— MMC (module mapping control)

— INT (interrupt controller)

— DBG (debug module to monitor HCS12X CPU and XGATE bus activity)

— BDM (background debug mode)

• XGATE (peripheral coprocessor)

— Parallel processing module off loads the CPU by providing high-speed data processing and

transfer

— Data transfer between Flash EEPROM, RAM, peripheral modules, and I/O ports

• PIT (periodic interrupt timer)

— Four timers with independent time-out periods

— Time-out periods selectable between 1 and 224 bus clock cycles

• CRG (clock and reset generator)

— Low noise/low power Pierce oscillator

— PLL

— COP watchdog

— Real time interrupt

— Clock monitor

— Fast wake-up from stop mode

• Port H & Port J with interrupt functionality

— Digital filtering

— Programmable rising or falling edge trigger

• Memory

— 512, 256 and 128-Kbyte Flash EEPROM

— 4 and 2-Kbyte EEPROM

— 32, 16 and 12-Kbyte RAM

• One 16-channel and one 8-channel ADC (analog-to-digital converter)

— 10-bit resolution

— External and internal conversion trigger capabilityFiveFourTwo 1M bit per second,

CAN 2.0 A, B software compatible modules

— Five receive and three transmit buffers

— Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit, or 8 x 8 bit

— Four separate interrupt channels for Rx, Tx, error, and wake-up

— Low-pass filter wake-up function

— Loop-back for self-test operation

  Specifications

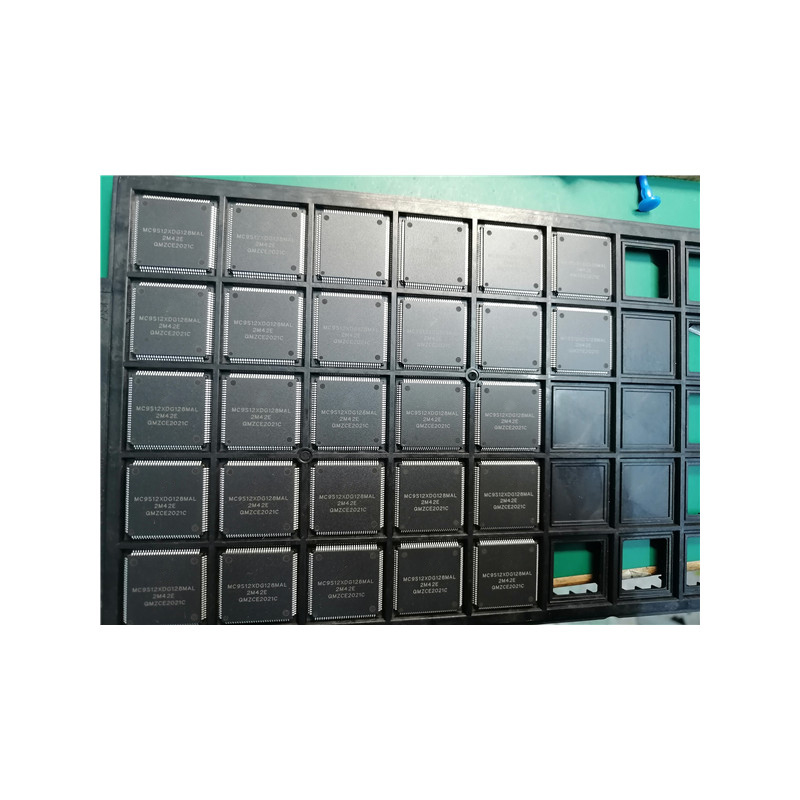

Actual product photos
