Hot-selling and scarce ATTINY26L-8SC 8-bit Microcontroller with 2K Bytes Flash SOP20 spot stock

Product Features

•High-performance,Low-power AVR®8-bit Microcontroller

•RISC Architecture

–118 Powerful Instructions –Most Single Clock Cycle Execution

–32 x 8 General Purpose Working Registers

–Fully Static Operation

–Up to 16 MIPS Throughput at 16 MHz

•Data and Non-volatile Program Memory

–2K Bytes of In-System Programmable Program Memory Flash

Endurance:10,000 Write/Erase Cycles

–128 Bytes of In-System Programmable EEPROM

Endurance:100,000 Write/Erase Cycles

–128 Bytes Internal SRAM

–Programming Lock for Flash Program and EEPROM Data Security

•Peripheral Features

–8-bit Timer/Counter with Separate Prescaler

–8-bit High-speed Timer with Separate Prescaler

2 High Frequency PWM Outputs with Separate Output Compare Registers

Non-overlapping Inverted PWM Output Pins

–Universal Serial Interface with Start Condition Detector

–10-bit ADC

11 Single Ended Channels

8 Differential ADC Channels

7 Differential ADC Channel Pairs with Programmable Gain (1x,20x)

–On-chip Analog Comparator

–External Interrupt

–Pin Change Interrupt on 11 Pins

–Programmable Watchdog Timer with Separate On-chip Oscillator

•Special Microcontroller Features

–Low Power Idle,Noise Reduction,and Power-down Modes

–Power-on Reset and Programmable Brown-out Detection

–External and Internal Interrupt Sources

–In-System Programmable via SPI Port

–Internal Calibrated RC Oscillator

•I/O and Packages

–20-lead PDIP/SOIC:16 Programmable I/O Lines

–32-lead QFN/MLF:16 programmable I/O Lines

•Operating Voltages

–2.7V -5.5V for ATtiny26L

–4.5V -5.5V for ATtiny26

•Speed Grades

–0 -8 MHz for ATtiny26L

–0 -16 MHz for ATtiny26

•Power Consumption at 1 MHz,3V and 25°C for ATtiny26L

–Active 16 MHz,5V and 25°C:Typ 15 mA

–Active 1 MHz,3V and 25°C:0.70 mA

–Idle Mode 1 MHz,3V and 25°C:0.18 mA

–Power-down Mode:<1 µA

​

Product Specification

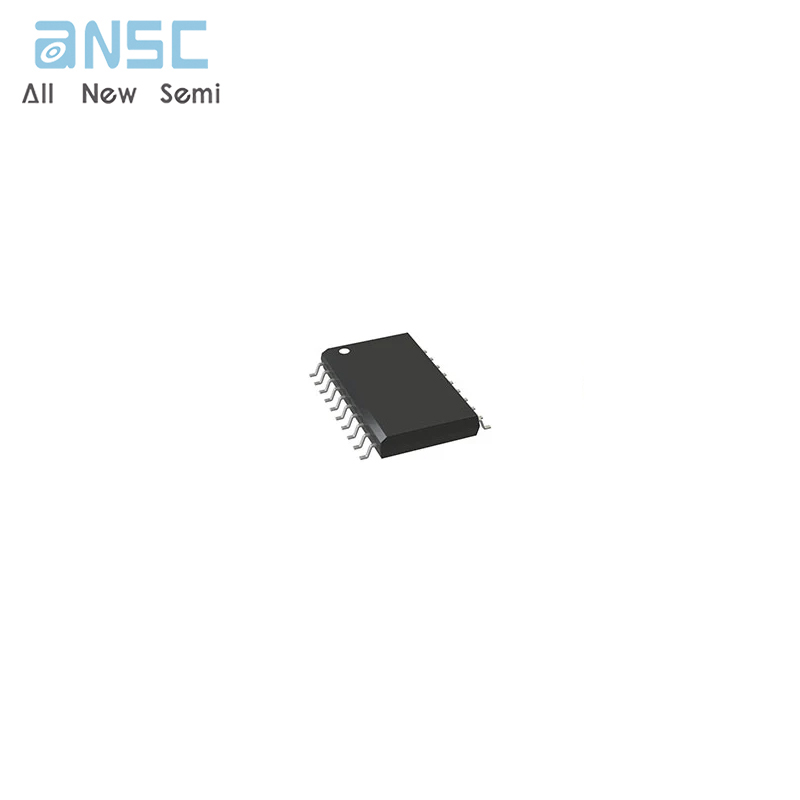

Product Photos

For more product information, please download the PDF
