Hot-selling and scarce STM32F207ICH6 Microcontroller IC BGA spot stock

​Product Feature

■ Core:ARM 32-bit Cortex™-M3 CPU (120 MHz max)with Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution performance from Flash memory, MPU,150 DMIPS/1 .25 DMIPS/MHz (Dhrystone 2.1)

■ Memories

–   Up to 1 Mbyte of Flash memory

–   512 bytes of OTP memory

–   Up to 128 + 4 Kbytes of SRAM

–   Flexible static memory controller that supports Compact Flash, SRAM, PSRAM,NOR and NAND memories

–   LCD parallel interface, 8080/6800 modes

■ CRC calculation unit

■ Clock, reset and supply management

–   From 1.8 to 3.6 V application supply+I/Os

–   POR, PDR, PVD and BOR

–   4 to 26 MHz crystal oscillator

–   Internal 16 MHz factory-trimmed RC

–   32 kHz oscillator for RTC with calibration

–   Internal 32 kHz RC with calibration

■ Low power

–   Sleep, Stop and Standby modes

–   V BAT supply for RTC, 20 × 32 bit backup registers, and optional 4 KB backup SRAM

■ 3 × 12-bit, 0.5 µs ADCs with up to 24 channels and up to 6 MSPS in triple interleaved mode

■ 2 × 12-bit D/A converters

■ General-purpose DMA: 16-stream controller with centralized FIFOs and burst support

■ 96-bit unique ID

■ Up to 17 timers

–   Up to twelve 16-bit and two 32-bit timers, up to 120 MHz, each with up to 4

IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

■ Debug mode:Serial wire debug (SWD),JTAG, and Cortex-M3 Embedded Trace Macrocell™

Product Specification

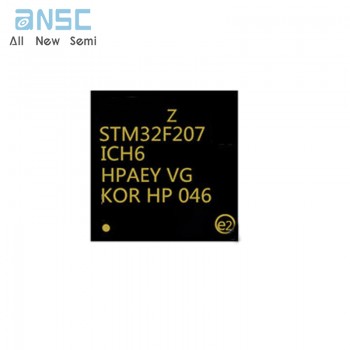

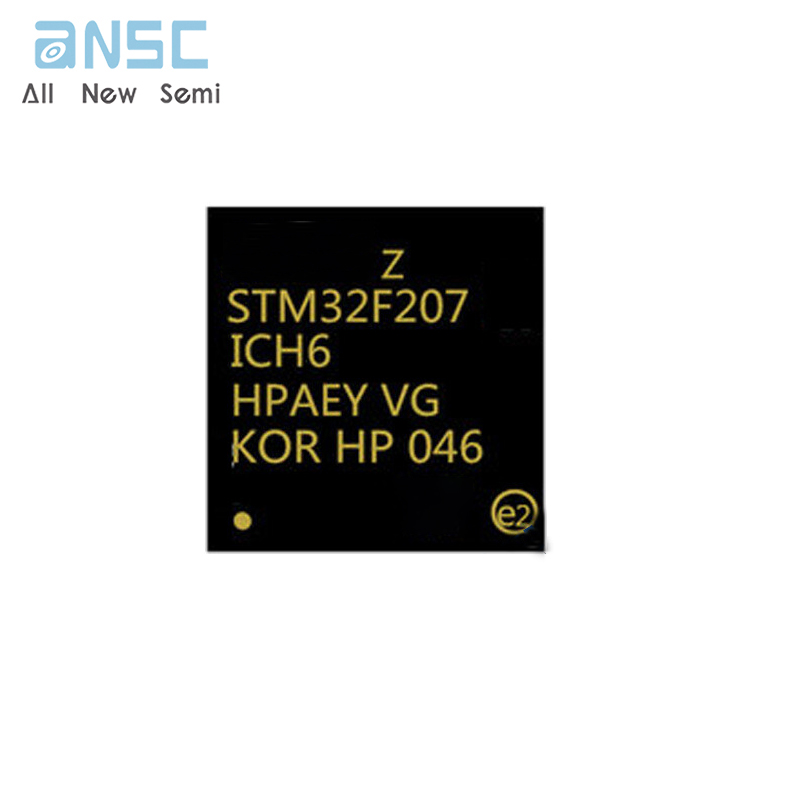

Product Photos

For more product information, please download the PDF
