Hot-selling and scarce ATSAM3N00BA-AU Microcontroller IC 32-Bit 48MHz 16KB 64-LQFP spot stock

Product Descriptions

The SAM3N devices have three software-selectable low-power modes: Sleep,Wait and Backup . In Sleep mode, the processor is stopped while all otherfunctions can be kept running . In Wait mode, all clocks and functions are stoppedbut some peripherals can be configured to wake up the system based onpredefined conditions . In Backup mode, only the RTC, RTT, 256-bit GPBR, andwake-up logic are running .

The Real-time Event Managment allows peripherals to receive, react to and sendevents in Active and Sleep modes without processor intervention .

Product Features

 Core

̶ ARM Cortex-M3 revision 2.0 running at up to 48 MHz

̶ Thumb®-2 Instruction Set

̶ 24-bit SysTick Counter

̶ Nested Vector Interrupt Controller

 Pin-to-pin compatible with SAM7S legacy products (48/64-pin versions) and SAM3S (48/64/100-pin versions)

 Memories

̶ From 16 to 256 Kbytes embedded Flash, 128-bit wide access, memory accelerator, single plane

̶ From 4 to 24 Kbytes embedded SRAM

̶ 16 Kbytes ROM with embedded bootloader routines (UART) and IAP routines

 System

̶ Embedded voltage regulator for single supply operation

̶ Power-on-Reset (POR), Brown-out Detector (BOD) and Watchdog for safe operation

̶ Quartz or ceramic resonator oscillators: 3 to 20 MHz main power with Failure Detection and optional low power

32.768 kHz for RTC or device clock

̶ High precision 8/12 MHz factory trimmed internal RC oscillator with 4 MHz default frequency for device startup .

In-application trimming access for frequency adjustment

̶ Slow Clock Internal RC oscillator as permanent low-power mode device clock

̶ One PLL up to 130 MHz for device clock

̶ Up to 10 Peripheral DMA (PDC) channels

 Low Power Modes

̶ Sleep, Wait, and Backup modes, down to 1.2 µA in Backup mode with RTC, RTT, and 256-bit GPBR

 Peripherals

̶ Up to 2 USARTs with RS-485 and SPI mode support . One USART (USART0) has ISO7816, IrDA® and PDC support in addition

̶ Two 2-wire UARTs

̶ Two 2-wire Interfaces (I2C compatible)

̶ One SPI

̶ Up to two 3-channel 16-bit Timer Counters with capture, waveform, compare and PWM mode, Quadrature Decoder Logic and 2-bit Gray Up/Down Counter for Stepper Motor

̶ 4-channel 16-bit PWM

̶ 32-bit low-power Real-time Timer (RTT)

̶ Low-power Real-time Clock (RTC) with calendar and alarm features

̶ Up to 16 channels, 384 ksps 10-bit ADC

̶ One 500 ksps 10-bit DAC

̶ Register Write Protection

Product Specifications

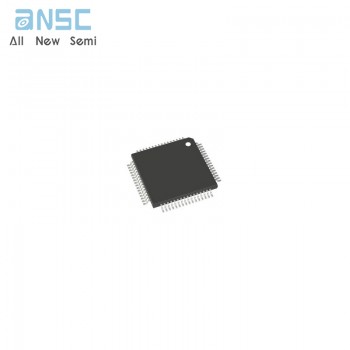

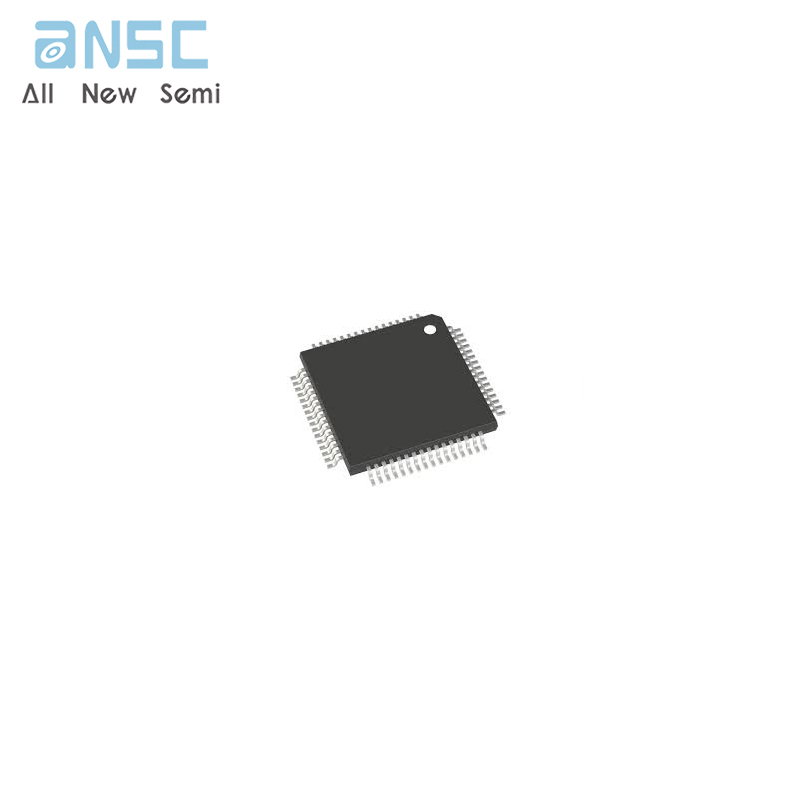

Product Photos

For more product information, please download the PDF
