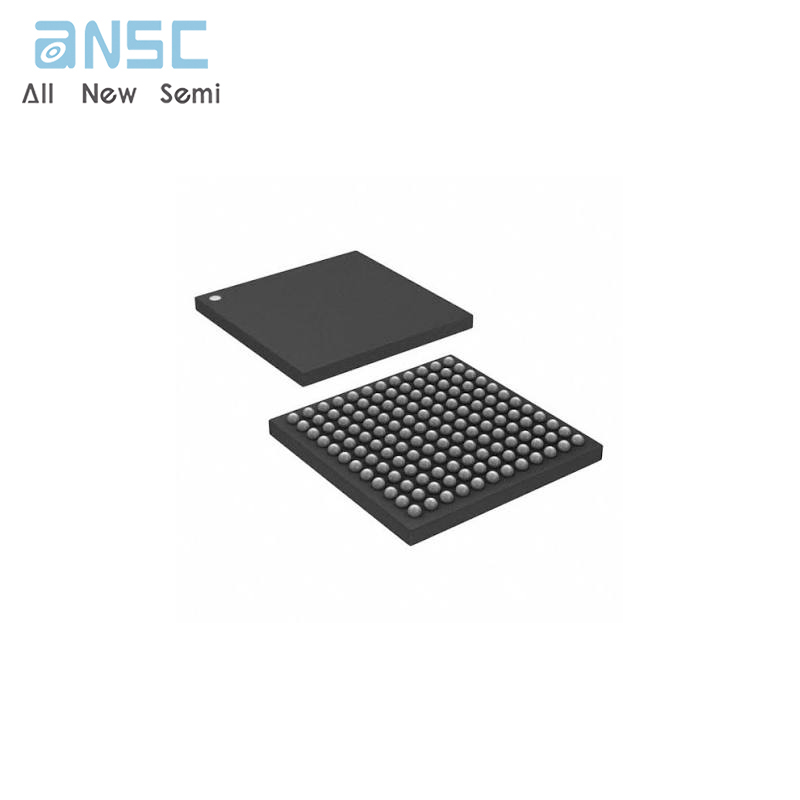

Hot-selling and scarce STR912FAZ44H6T Microcontroller IC 16/32-Bit 96MHz 512KB BGA144 spot stock

Product Features

• 16/32-bit 96 MHz ARM9E based MCU

– ARM966E-S™ RISC core: Harvard architecture, 5-stage pipeline, Tightly-Coupled Memories (SRAM and Flash)

– STR91xFA implementation of core adds high-speed burst Flash memory interface, instruction prefetch queue, branch cache

– Up to 96 MIPS directly from Flash memory

– Single-cycle DSP instructions supported

– Binary compatible with ARM7 code

• Dual burst Flash memories, 32-bits wide

– 256 KB/512 KB/1 MB/2 MB main Flash

– 32 KB/128 KB secondary Flash

– Sequential Burst operation up to 96 MHz

– 100 K min erase cycles, 20 yr min retention

• SRAM, 32-bits wide

– 64K or 96K bytes, optional battery backup

• 9 programmable DMA channels

• Clock, reset, and supply management

– Internal oscillator operating with external 4-25 MHz crystal

– Internal PLL up to 96 MHz

– Real-time clock provides calendar functions, tamper, and wake-up functions

– Reset Supervisor monitors supply voltage, watchdog, wake-up unit, external reset

– Brown-out monitor

– Run, Idle, and Sleep Mode as low as 50 uA

• Vectored interrupt controller (VIC)

– 32 IRQ vectors, 30 interrupt pins

– Branch cache minimizes interrupt latency

• 8-channel, 10-bit A/D converter (ADC)

– 0 to 3.6 V range, 0.7 usec conversion

• 10 Communication interfaces

– 10/100 Ethernet MAC with DMA and MII

– USB Full-speed (12 Mbps) slave device

– CAN interface (2.0B Active)

– 3 16550-style UARTs with IrDA protocol

– 2 Fast I2C, 400 kHz

– 2 channels for SPI, SSI™, or MICROWIRE™

• External Memory Interface (EMI)

– 8- or 16-bit data, up to 24-bit addressing

– Static Async modes for LQFP128

– Additional burst synchronous modes for LFBGA144

• Up to 80 I/O pins (muxed with interfaces)

• 16-bit standard timers (TIM)

– 4 timers each with 2 input capture, 2 output compare, PWM and pulse count modes

• 3-Phase induction motor controller (IMC)

• JTAG interface with boundary scan

• Embedded trace module (ARM® ETM9™)
