Product Descriptions

IP5310 is a fully-integrated multi-function power management SoC. It integrates a boost converter, a Li battery charger management system, a battery state of charge indicate controller, and built-in TYPE-C protocol. It provides a turn-key solution for power bank and portable charger applications.

IP5310’s high integration and multiple features make the minimized component number in application. It can effectively downsize the application and lower the BOM cost.

IP5310’s synchronous boost converter provides 3.1A output current. Its efficiency is up to 93 PERCENT. It can switch to standby mode at empty load automatically.

IP5310’s synchronous switching charger provides 3A charging current. Its efficiency is up to 92 PERCENT. It regulates the charging current by IC temperature and input voltage.

IP5310 Support I2C interface .It can customize battery’s SOC curve, and indicate the SOC accurately. IP5310 support the SOC indicator of 4/3/2/1 LEDs and flashlight function.

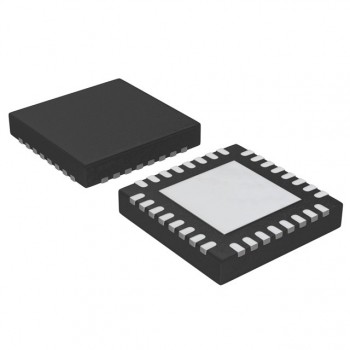

IP5310 is available in QFN32-5*5mm

Product Features

 Switch buck charger and boost

 3A Synchronous switching charger and 5V 3.1A boost converter

 Boost converter efficiency up to 93 PERCENT

 Switching charger efficiency up to 92 PERCENT

 Integrated power-path management,charging batteries and charging cellphones at the same time

 Charger

 Adaptive charging current control, excellent adapter compatibility

 Support TYPE-C port with 3A current, and MICRO-B port with 2A current

 Support BC1.2 protocol, compatible with PC USB charge

 Support 4.20V/4.35V/4.40V battery

 Support battery thermal protection (with NTC resistor)

 State of charge (SOC) indicator

 Integrated LED controller supports 4/3/2/1 LEDs as the SOC indicator

 Configurable charging/discharging curve makes the SOC indicate LEDs more even

 Fully featured

 Integrated cellphone plug-in and plug-out detector

 Integrated TYPE_C DRP protocol, Support for charging and discharging in the one TYPE-C port

 support current load compensation

 Integrated two DCP modules for detect cellphone charging current

 Low power

 Smart load detector, switching to standby mode automatically

 Ultra simplified BOM

 Integrated power FET, charging/boosting with a single inductor

 500kHz switching frequency, supports 1uH inductor

 Multiple protections, high reliability

 Output over-current, over-voltage, short-circuit protection

 Input over-voltage, over-current, battery over-charge, over-drain, over-current protection

 Thermal regulation and thermal shutdown,battery NTC protection

 ESD 4KV, maximum 11V transit over-voltage sustainable

 Fully customizable

 I2C interface makes customization flexible and low-cost

Product Applications

 Power bank, Portable Charger

 Mobile Phones, Smart Phones, Handheld Devices,Portable Media Player, Tablet
