Hot-selling and scarce D8748H HMOS-E SINGLE-COMPONENT 8-BIT MICROCONTROLLER DIP40 spot stock

Product Descriptions

The Intel D8749H/D8748H are totally self-sufficient, 8-bit parallel computers fabricated on single silicon chip susing Intel's advanced N-channel silicon gate HMOS-E process.

The family contains 27 I/O lines, an 8-bit timer/counter, on-chip RAM and on-board oscillator/clock circuits.

For systems that require extra capability, the family can be expanded using MCSe-80/MCS -85 peripherals.

These microcomputers are designed to be efficient controllers as well as arithmetic processors. They have extensive bit handling capability as well as facilities for both binary and BCD arithmetic. Efficient use of program memory results from an instruction set consisting mostly of single byte instructions and no instructions over 2 bytes in length.

Product Features

High Performance HMOS-E

Interval Timer/Event Counter

Two Single Level Interrupts

Single 5-Volt Supply

Over 96 Instructions; 90 percent Single Byte

Compatible with 8080/8085 Peripherals

Easily Expandable Memory and I/O

Up to 1.35 us Instruction Cycle;All Instructions 1 or 2 Cycles

Product Specification

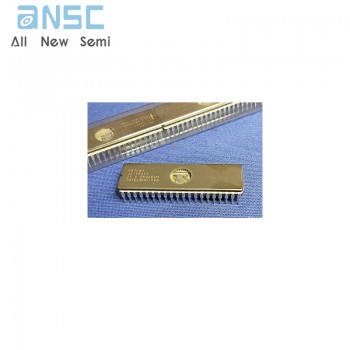

Product Photos

For more product information, please download the PDF
