Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale original AT90USB1287-AU IC MCU 8BIT FLASH 40DIP AVR ATmega Microcontroller IC 20MHz 128KB (64K x 16) FLASH 40-PDIP
Manufacturer Product Number
AT90USB1287-AU
Description
AT90USB1287-AU IC MCU 8BIT FLASH 40DIP AVR ATmega Microcontroller IC 20MHz 128KB (64K x 16) FLASH 40-PDIP
Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

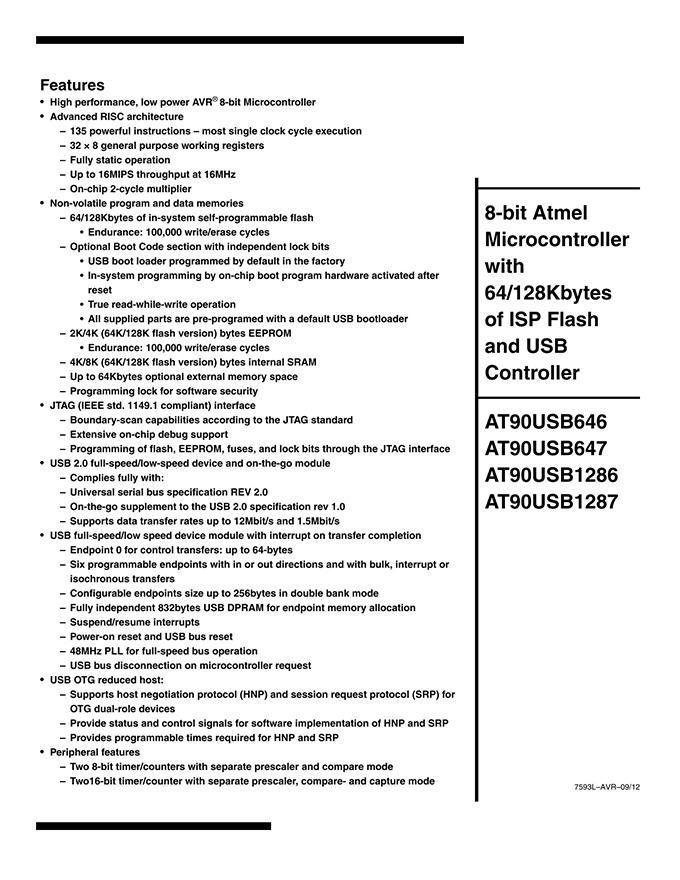

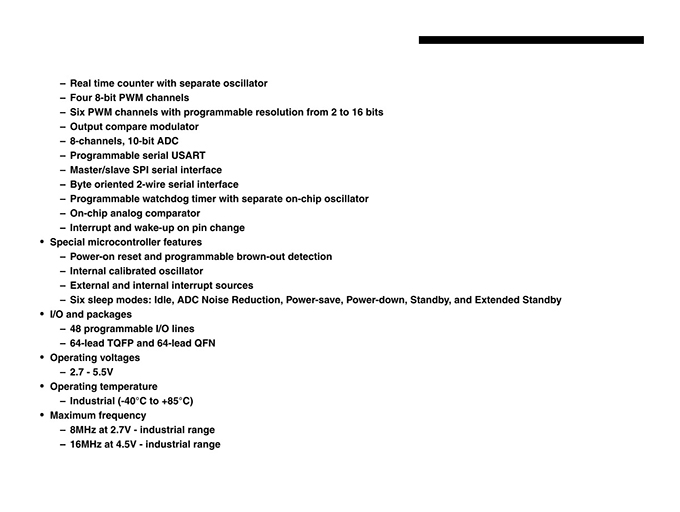

| Overview The AVR® AT90USB64/128 is a low-power CMOS 8-bit microcontroller based on the AVR® enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the AT90USB64/128 achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. Features • High performance, low power AVR® 8-bit Microcontroller • Advanced RISC architecture – 135 powerful instructions – most single clock cycle execution – 32 × 8 general purpose working registers – Fully static operation – Up to 16MIPS throughput at 16MHz – On-chip 2-cycle multiplier • Non-volatile program and data memories – 64/128Kbytes of in-system self-programmable flash • Endurance: 100,000 write/erase cycles – Optional Boot Code section with independent lock bits • USB boot loader programmed by default in the factory • In-system programming by on-chip boot program hardware activated after reset • True read-while-write operation • All supplied parts are pre-programed with a default USB bootloader – 2K/4K (64K/128K flash version) bytes EEPROM • Endurance: 100,000 write/erase cycles – 4K/8K (64K/128K flash version) bytes internal SRAM – Up to 64Kbytes optional external memory space – Programming lock for software security • JTAG (IEEE std. 1149.1 compliant) interface – Boundary-scan capabilities according to the JTAG standard – Extensive on-chip debug support – Programming of flash, EEPROM, fuses, and lock bits through the JTAG interface • USB 2.0 full-speed/low-speed device and on-the-go module – Complies fully with: – Universal serial bus specification REV 2.0 – On-the-go supplement to the USB 2.0 specification rev 1.0 – Supports data transfer rates up to 12Mbit/s and 1.5Mbit/s • USB full-speed/low speed device module with interrupt on transfer completion – Endpoint 0 for control transfers: up to 64-bytes – Six programmable endpoints with in or out directions and with bulk, interrupt or isochronous transfers – Configurable endpoints size up to 256bytes in double bank mode – Fully independent 832bytes USB DPRAM for endpoint memory allocation – Suspend/resume interrupts – Power-on reset and USB bus reset – 48MHz PLL for full-speed bus operation – USB bus disconnection on microcontroller request • USB OTG reduced host: – Supports host negotiation protocol (HNP) and session request protocol (SRP) for OTG dual-role devices – Provide status and control signals for software implementation of HNP and SRP – Provides programmable times required for HNP and SRP • Peripheral features – Two 8-bit timer/counters with separate prescaler and compare mode – Two16-bit timer/counter with separate prescaler, compare- and capture mode – Real time counter with separate oscillator – Four 8-bit PWM channels – Six PWM channels with programmable resolution from 2 to 16 bits – Output compare modulator – 8-channels, 10-bit ADC – Programmable serial USART – Master/slave SPI serial interface – Byte oriented 2-wire serial interface – Programmable watchdog timer with separate on-chip oscillator – On-chip analog comparator – Interrupt and wake-up on pin change • Special microcontroller features – Power-on reset and programmable brown-out detection – Internal calibrated oscillator – External and internal interrupt sources – Six sleep modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby • I/O and packages – 48 programmable I/O lines – 64-lead TQFP and 64-lead QFN • Operating voltages – 2.7 - 5.5V • Operating temperature – Industrial (-40°C to +85°C) • Maximum frequency – 8MHz at 2.7V - industrial range – 16MHz at 4.5V - industrial range |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- AT90USB1287-AU |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Original |
| Series | AVR® 90USB |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | AVR |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | EBI/EMI, I2C, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 48 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-TQFP (14x14) |
| Package / Case | 64-TQFP |
| Base Product Number | AT90USB1287 |

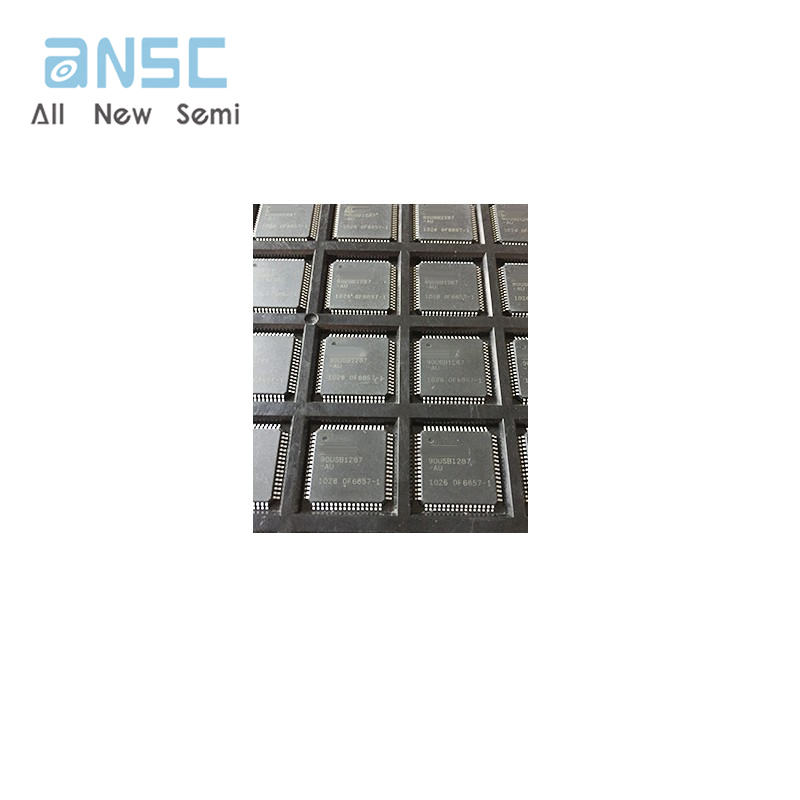

Product Photos

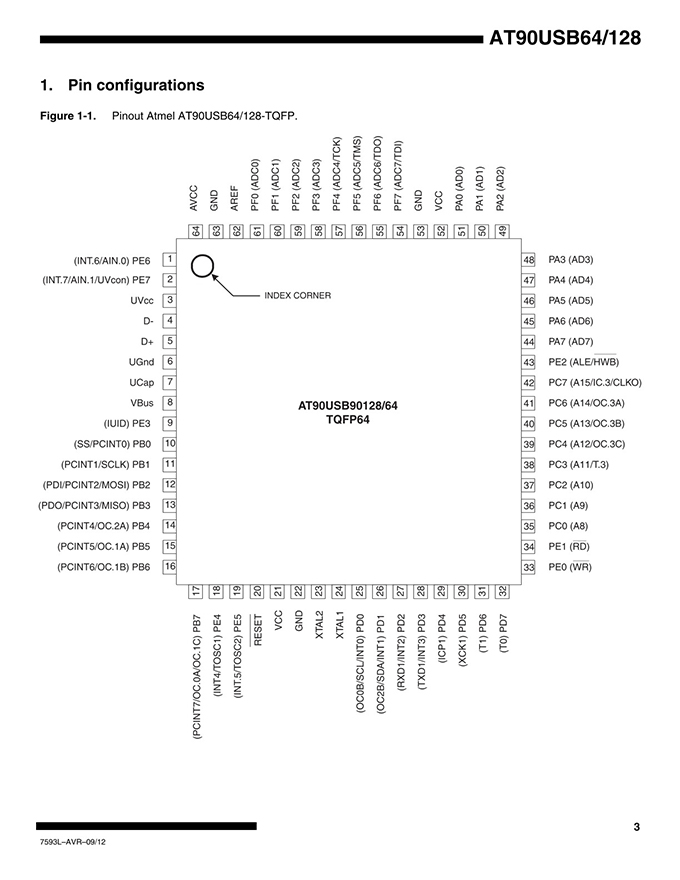

Product datasheet
For more information, please download
