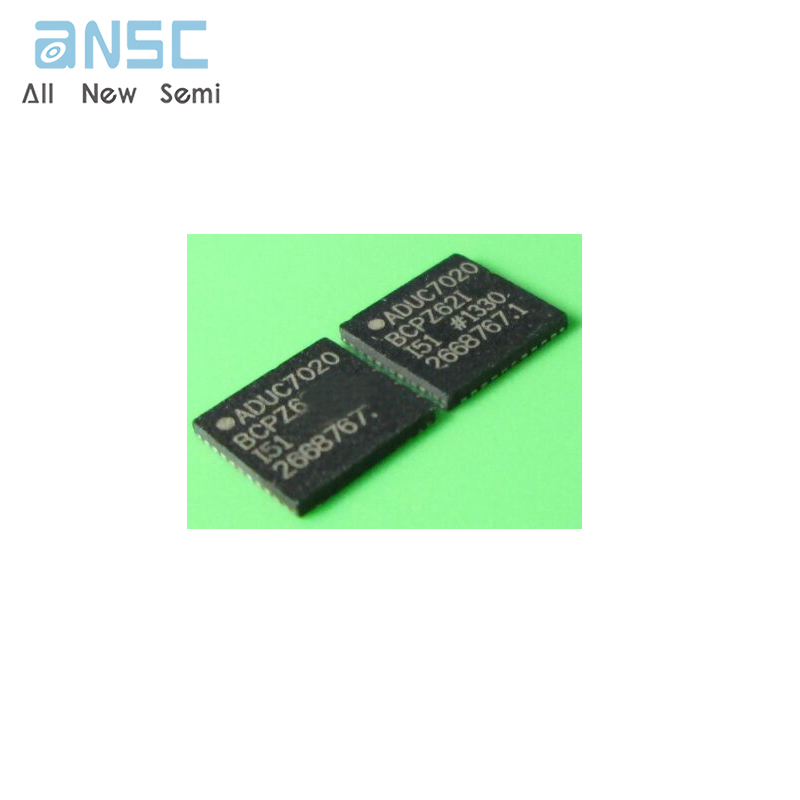

Hot-selling and scarce ADUC7020BCPZ62I Precision Analog Microcontroller 12-bitAnalog I/O LFCSP-40 spot stock

Product Descriptions

The ADuC7019/7020/7021/7022/7024/7025/7026/7027 are fullyintegrated, 1 MSPS, 12-bit data acquisition systems incorporating high performance multichannel ADCs, 16-bit/32-bit MCUsand Flash/EE memory on a single chip.

The ADC consists of up to 12 single-ended inputs . Anadditional four inputs are available but are multiplexed

with the four DAC output pins . The four DAC outputs areonly available on certain models (ADuC7020, and ADuC7026).However, in many cases where the DAC outputs are not present,these pins can still be used as additional ADC inputs, giving amaximum of 16 ADC input channels . The ADC can operate insingle-ended or differential input modes . The ADC inputvoltage is 0 to VREF. Low-drift bandgap reference, temperaturesensor, and voltage comparator complete the ADC peripheralset .

Depending on the part model, up to four buffered voltageoutput DACs are available on-chip. The DAC output range isprogrammable to one of three voltage ranges .

Product Features

Analog I/O

Multichannel, 12-bit, 1 MSPS ADC

Up to 16 ADC channels1

Fully differential and single-ended modes

0 to VREF analog input range

12-bit voltage output DACs

Up to 4 DAC outputs available1

On-chip voltage reference

On-chip temperature sensor (±3°C)

Voltage comparator

Microcontroller

ARM7TDMI core, 16-bit/32-bit RISC architecture

JTAG port supports code download and debug

Clocking options

Trimmed on-chip oscillator (±3%)

External watch crystal

External clock source up to 44 MHz

41.78 MHz PLL with programmable divider

Memory

62 kB flash/EE memory, 8 kB SRAM

In-circuit download,JTAG-based debug

Software triggered in-circuit reprogrammability

Product Applications

Industrial control and automation systems

Smart sensors, precision instrumentation

Base station systems, optical networking

Product Specification

Product Photos

For more product information, please download the PDF
