Spot sales of PIC16C73B/JW 8-Bit CMOS Microcontrollers with A/D Converter CDIP28
Manufacturer Product Number
PIC16C73B/JW
Description
PIC16C73B/JW 8-Bit CMOS Microcontrollers with A/D Converter CDIP28
Package Condition
TUBE
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Timer0: 8-bit timer/counter with 8-bit prescaler
• Timer1: 16-bit timer/counter with prescaler can be incremented during SLEEP via external crystal/clock
• Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
• Capture, Compare, PWM modules
- Capture is 16-bit, max. resolution is 200 ns
- Compare is 16-bit, max. resolution is 200 ns
- PWM max. resolution is 10-bit
• 8-bit multichannel Analog-to-Digital converter
• Synchronous Serial Port (SSP) with SPITM and I2CTM
• Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI)
• Parallel Slave Port (PSP), 8-bits wide with external RD, WR and CS controls
• Brown-out detection circuitry for Brown-out Reset (BOR)
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-PIC16C73B/JW |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | - |
| Series | PIC® 16C |
| Packaging | Tube |
| Part Status | Obsolete |
| DigiKey Programmable | Verified |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 22 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | EPROM, UV |
| EEPROM Size | - |
| RAM Size | 192 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 5.5V |
| Data Converters | A/D 5x8b |
| Oscillator Type | External |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 28-CerDip |
| Package / Case | 28-CDIP (0.300", 7.62mm) Window |
| Base Product Number | PIC16C73 |

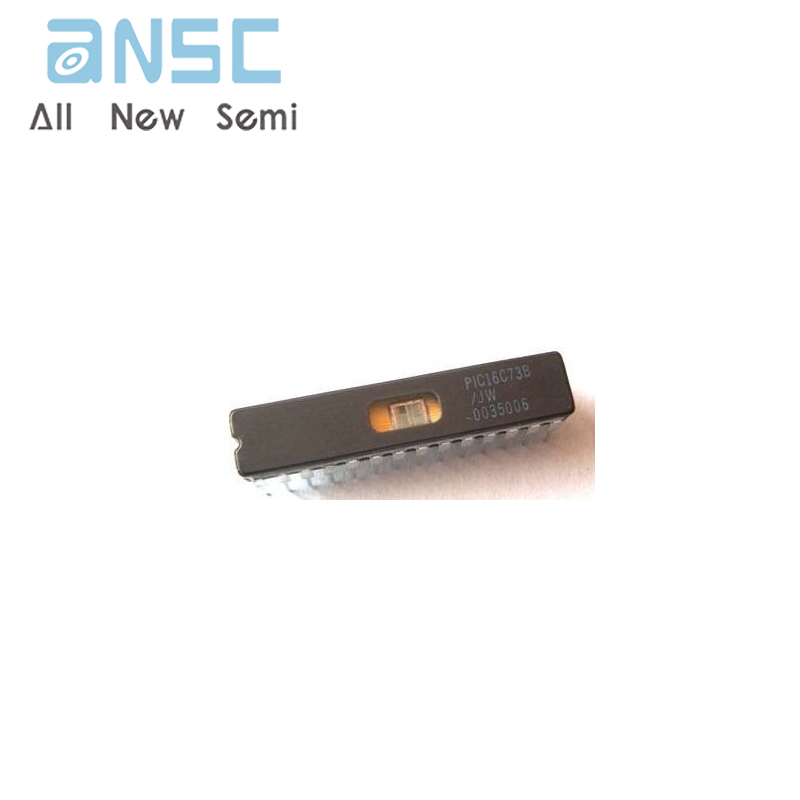

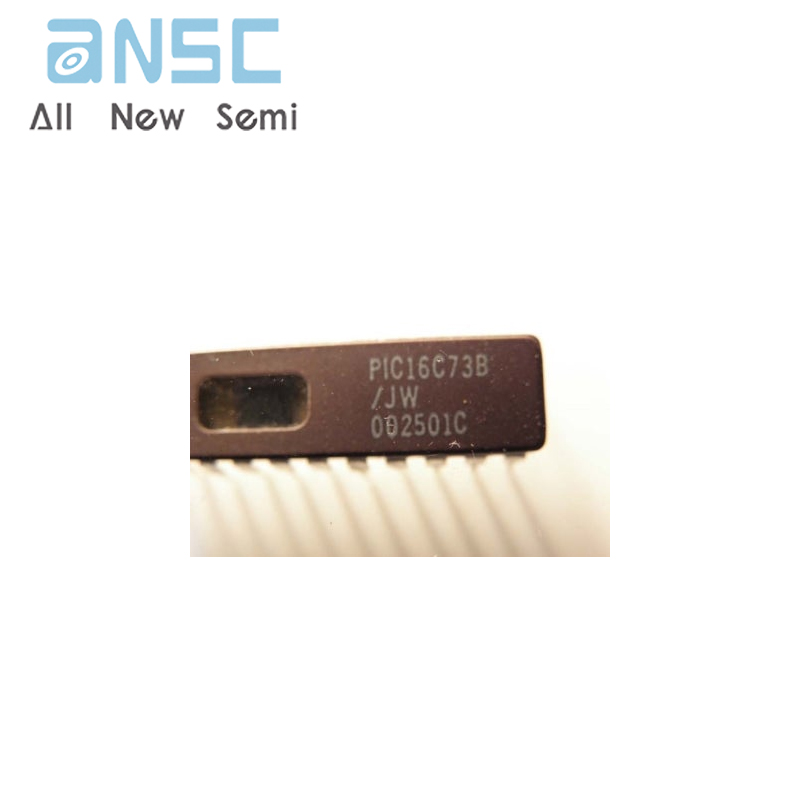

Product Photos
For more product information, please download the PDF
