Hot-selling and scarce R5F104PHAFB-V0 Microcontrollers IC LQFP spot stock

Product Features

Ultra-Low Power Consumption Technology

• VDD = single power supply voltage of 1.6 to 5.5 V which can operate a 1.8 V device at a low voltage

• HALT mode

• STOP mode

• SNOOZE mode

RL78 CPU Core

• CISC architecture with 3-stage pipeline

• Minimum instruction execution time: Can be changed

from high speed (0.03125 s: @ 32 MHz operation with

high-speed on-chip oscillator) to ultra-low speed (30 .5

s: @ 32.768 kHz operation with subsystem clock)

• Multiply/divide/multiply & accumulate instructions are supported.

• Address space: 1 MB

• General-purpose registers: (8-bit register 8) 4 banks

• On-chip RAM: 2.5 to 48 KB

Code Flash Memory

• Code flash memory: 16 to 512 KB

• Block size: 1 KB

• Prohibition of block erase and rewriting (security

function)

• On-chip debug function

• Self-programming (with boot swap function/flash shield

window function)

Data Flash Memory

• Data flash memory: 4 KB and 8 KB

• Back ground operation (BGO): Instructions can be

executed from the program memory while rewriting the

data flash memory.

• Number of rewrites: 1,000,000 times (TYP.)

• Voltage of rewrites: VDD = 1.8 to 5.5 V

High-speed On-chip Oscillator

• Select from 64 MHz,48 MHz,32 MHz,24 MHz, 16 MHz,

12 MHz, 8 MHz, 6 MHz, 4 MHz, 3 MHz, 2 MHz, and

1 MHz

• High accuracy: ±1 .0% (VDD = 1.8 to 5.5 V, TA = -20 to

+85°C)

Operating Ambient Temperature

• TA = -40 to +85°C (A: Consumer applications, D:

Industrial applications)

• TA = -40 to +105°C (G: Industrial applications)

Power Management and Reset Function

• On-chip power-on-reset (POR) circuit

• On-chip voltage detector (LVD) (Select interrupt and reset from 14 levels)

Data Transfer Controller (DTC)

• Transfer modes: Normal transfer mode, repeat transfer mode, block transfer mode

• Activation sources:Activated by interrupt sources.

• Chain transfer function

Product Specification

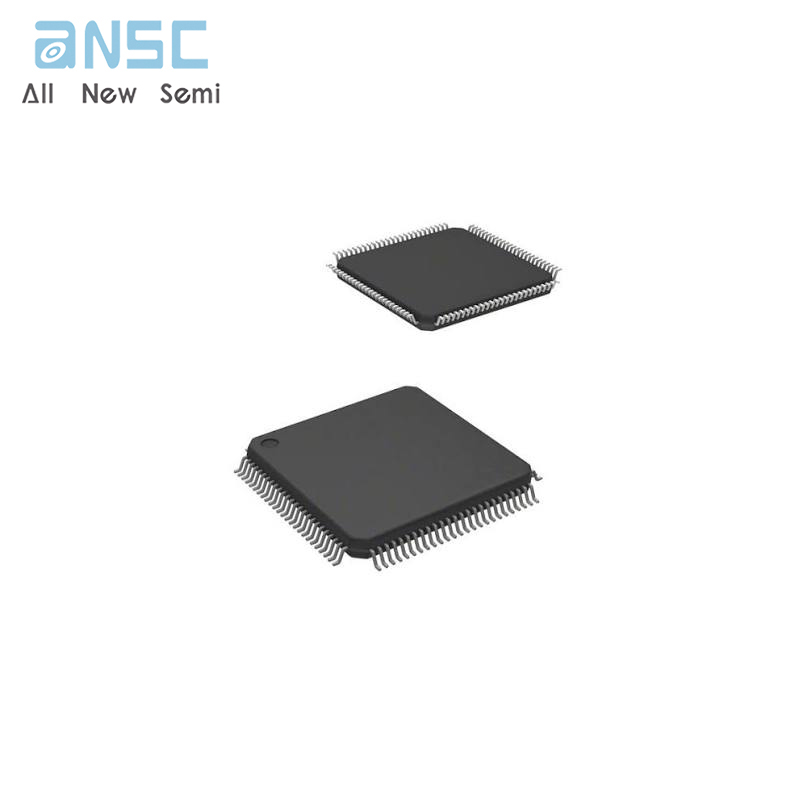

Product Photos

For more product information, please download the PDF
