Hot-selling and scarce AT91FR40162SB-CU Thumb-based Microcontrollers BGA spot stock

Product Features

• Incorporates the ARM7TDMI® ARM® Thumb® Processor Core

– High-performance 32-bit RISC Architecture

– High-density 16-bit Instruction Set

– Leader in MIPS/Watt

– EmbeddedICE™ (In-circuit Emulation)

• 256K Bytes of On-chip SRAM

– 32-bit Data Bus, Single-clock Cycle Access

• 1024K Words 16-bit Flash Memory (2M bytes)

– Single Voltage Read/Write,

– Sector Erase Architecture

– Erase Suspend Capability

– Low-power Operation

– Data Polling, Toggle Bit and Ready/Busy End of Program Cycle Detection

– Reset Input for Device Initialization

– Sector Program Unlock Command

– 128-bit Protection Register

– Factory-programmed AT91 Flash Memory Uploader Software

• Fully Programmable External Bus Interface (EBI)

– Up to 8 Chip Selects, Maximum External Address Space of 64M Bytes

– Software Programmable 8/16-bit External Data Bus

• 8-level Priority, Individually Maskable, Vectored Interrupt Controller

– 4 External Interrupts, Including a High-priority Low-latency Interrupt Request

• 32 Programmable I/O Lines

• 3-channel 16-bit Timer/Counter

– 3 External Clock Inputs, 2 Multi-purpose I/O Pins per Channel

• 2 USARTs

– Two Dedicated Peripheral Data Controller (PDC) Channels per USART

• Programmable Watchdog Timer

• Advanced Power-saving Features

– CPU and Peripherals Can be De-activated Individually

• Fully Static Operation:

– 0 Hz to 75 MHz Internal Frequency Range at VDDCORE = 1.8V, 85°C

• 2.7V to 3.6V I/O Operating Range, 1.65V to 1.95V Core Operating Range

• -40°C to 85°C Temperature Range

• Available in a 121-ball 10 x 10 x 1.26 mm BGA Package with 0.8 mm Ball Pitch

Product Specification

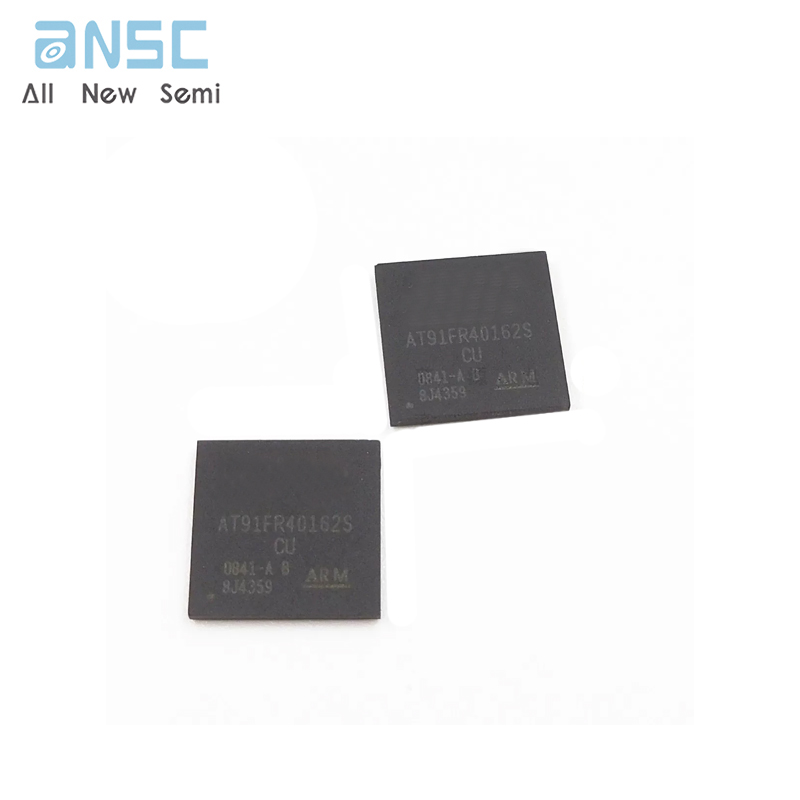

Product Photos

For more product information, please download the PDF
