Product Descriptions

The P80C652/83C652 Single-Chip 8-Bit Microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. The80C652/83C652 has the same instruction set as the 80C51 . Three versions of the derivative exist:

83C652 — 8k bytes mask programmable ROM

80C652 — ROMless version

87C652 — EPROM version (described in a separate chapter)

This device provides architectural enhancements that make it applicable in a variety of applications for general control systems. The 8XC652 contains a non-volatile8k ×8 read-only program memory, a volatile256 ×8 read/write data memory,four 8-bit I/O ports, two 16-bit timer/event counters(identical to the timers of the 80C51), a multi-source,two-priority-level, nested interrupt structure, an I2 C interface, UART and on-chip oscillator and timing circuits. For systems that require extra capability, the8XC652 can be expanded using standard TTL compatible memories and logic.​

The device also functions as an arithmetic processor having facilities for both binary and BCD arithmetic plus bit-handling capabilities. The instruction set consists of over 100 instructions:49 one-byte,45 two-byte and 17 three-byte. With a 16(24)MHz crystal, 58% of the instructions are executed in 0.75(0.5)µs and 40% in 1.5(1)µs. Multiply and divide instructions require 3(2)µs.

Product Features

•80C51 central processing unit

•8k × 8 ROM expandable externally to 64k bytes

•256 × 8 RAM, expandable externally to 64k bytes

•Two standard 16-bit timer/counters

•Four 8-bit I/O ports

•I2 C-bus serial I/O port with byte oriented master and slave functions

•Full-duplex UART facilities

•Power control modes

–  Idle mode

–  Power-down mode

•ROM code protection

•Extended frequency range: 3.5 to 24 MHz

•Three operating ambient temperature ranges:

0 to   +70°C

–40 to  +85°C

–40 to +125°C

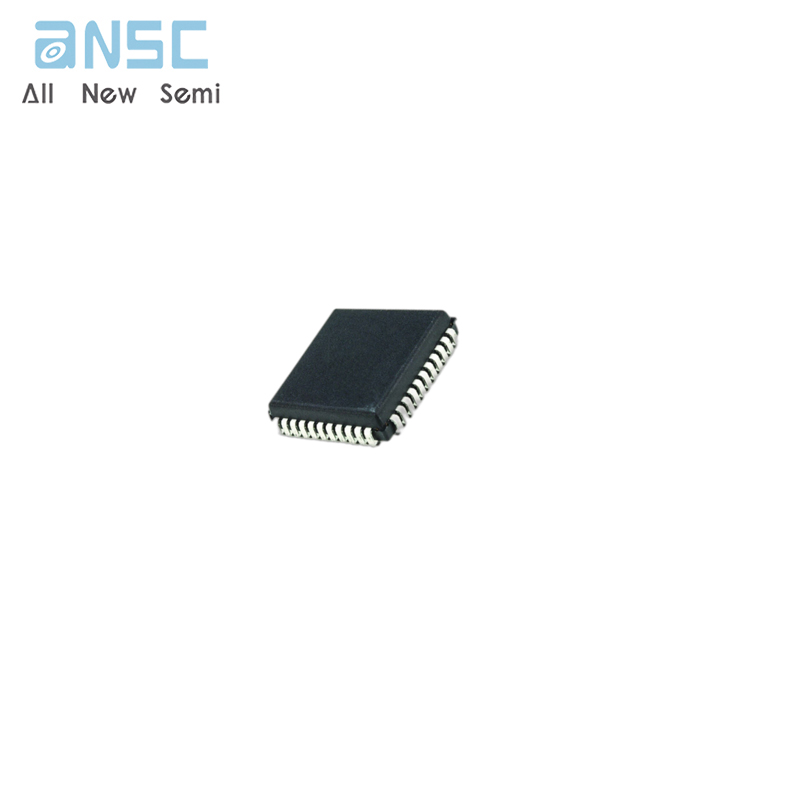

Product Photos

For more product information, please download the PDF
