You can contact me for the best price P80C32 IC CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER Hot sale Original

Manufacturer Product Number
P80C32
Description

P80C32 IC CHMOS SINGLE-CHIP 8-BIT MICROCONTROLLER Hot sale Original

Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

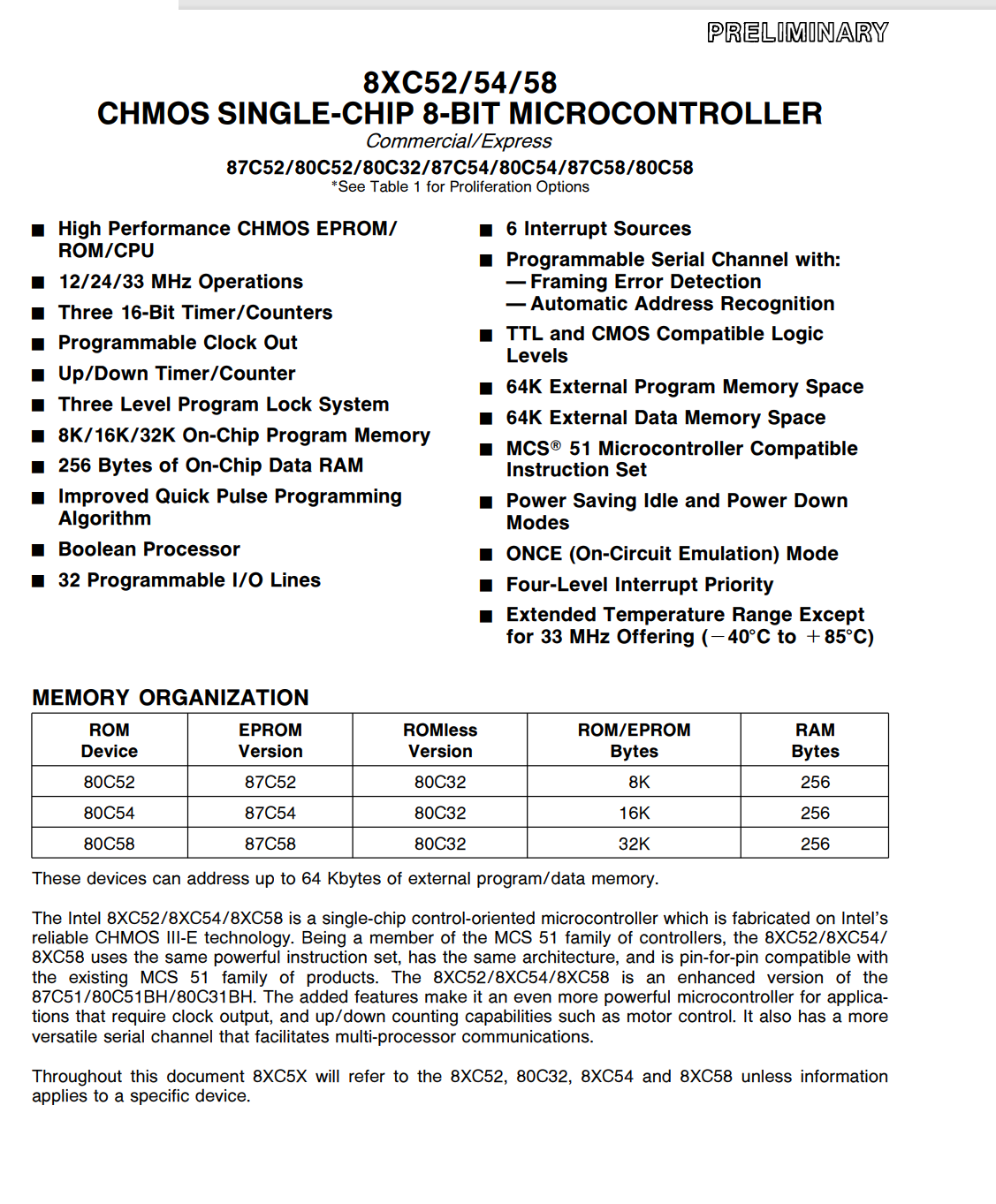

The 8XC52/8XC54/8XC58 is a single-chip control-oriented microcontroller which is fabricated on Intel’s reliable CHMOS III-E technology. Being a member of the MCS 51 family of controllers, the 8XC52/8XC54/ 8XC58 uses the same powerful instruction set, has the same architecture, and is pin-for-pin compatible with the existing MCS 51 family of products. The 8XC52/8XC54/8XC58 is an enhanced version of the 87C51/80C51BH/80C31BH. The added features make it an even more powerful microcontroller for applica tions that require clock output, and up/down counting capabilities such as motor control. It also has a more versatile serial channel that facilitates multi-processor communications.
Throughout this document 8XC5X will refer to the 8XC52, 80C32, 8XC54 and 8XC58 unless information applies to a specific device.

■ High Performance CHMOS EPROM/ROM/CPU
■ 12/24/33 MHz Operations
■ Three 16-Bit Timer/Counters
■ Programmable Clock Out
■ Up/Down Timer/Counter
■ Three Level Program Lock System
■ 8K/16K/32K On-Chip Program Memory
■ 256 Bytes of On-Chip Data RAM
■ Improved Quick Pulse Programming Algorithm
■ Boolean Processor
■ 32 Programmable I/O Lines
■ 6 Interrupt Sources
■ Programmable Serial Channel with:
   — Framing Error Detection
   — Automatic Address Recognition
■ TTL and CMOS Compatible Logic Levels
■ 64K External Program Memory Space
■ 64K External Data Memory Space
■ MCSÉ 51 Microcontroller Compatible Instruction Set
■ Power Saving Idle and Power Down Modes
■ ONCE (On-Circuit Emulation) Mode
■ Four-Level Interrupt Priority
■ Extended Temperature Range Except
   for 33 MHz Offering (-40°C to +85°C)

Product Description

Type# Description
ANSC PART# ANSC - P80C32
Part Package Code DIP
Package Description Dip, Dip40,.6
Pin Count 40
Has ADC No
Additional Feature Boolean Processor; On-Circuit Emulation
Address Bus Width 16
Bit Size 8
Boundary Scan No
CPU Family 8051
Clock Frequency-Max 12 Mhz
DAC Channels No
DMA Channels No
External Data Bus Width 8
Format Fixed Point
Integrated Cache No
JESD-30 Code R-PDIP-T40
JESD-609 Code e0
Length 52.26 Mm
Low Power Mode Yes
Number of DMA Channels
Number of External Interrupts 2
Number of I/O Lines 32
Number of Serial I/Os 1
Number of Terminals 40
Number of Timers 3
On Chip Data RAM Width 8
Operating Temperature-Max 70 °C
Operating Temperature-Min
PWM Channels No
Package Body Material Plastic/Epoxy
Package Code DIP
Package Equivalence Code DIP40,.6
Package Shape Rectangular
Package Style In-Line
Qualification Status Not Qualified
RAM (bytes) 256
RAM (words) 256
ROM (words) 0
ROM Programmability Rom Less
Seated Height-Max 5.08 Mm
Speed 12 Mhz
Supply Current-Max 30 Ma
Supply Voltage-Max 6 V
Supply Voltage-Min 4 V
Supply Voltage-Nom 5 V
Surface Mount No
Technology Cmos
Temperature Grade Commercial
Terminal Finish Tin Lead
Terminal Form Through-Hole
Terminal Pitch 2.54 Mm
Terminal Position Dual
Width 15.24 Mm
uPs/uCs/Peripheral ICs Type Microcontroller

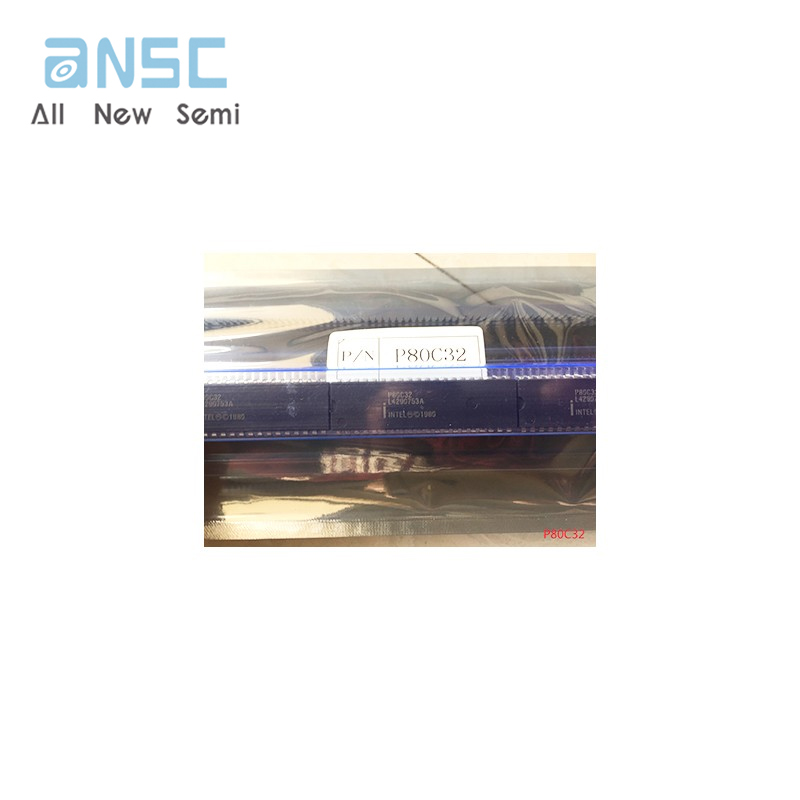

Actual image of the product

P80C32

Product datasheet
