Hot-selling and scarce AT89S51-24JI 8-bit Microcontroller with 4K Bytes In-System Programmable Flash PLCC44 spot stock

Product Descriptions

The AT89S51 is a low-power, high-performance CMOS 8-bit microcontroller with 4K  bytes of In-System Programmable Flash memory. The device is manufactured using  Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout. The on-chip Flash allows the program  memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with In-System Programmable Flash on  a monolithic chip, the Atmel AT89S51 is a powerful microcontroller which provides a  highly-flexible and cost-effective solution to many embedded control applications.

The AT89S51 provides the following standard features: 4K bytes of Flash, 128 bytes  of RAM, 32 I/O lines, Watchdog timer, two data pointers, two 16-bit timer/counters, a  five-vector two-level interrupt architecture, a full duplex serial port, on-chip oscillator,  and clock circuitry. In addition, the AT89S51 is designed with static logic for operation  down to zero frequency and supports two software selectable power saving modes.  The Idle Mode stops the CPU while allowing the RAM, timer/counters, serial port, and  interrupt system to continue functioning. The Power-down mode saves the RAM contents but freezes the oscillator, disabling all other chip functions until the next external  interrupt or hardware reset.

Product Features

• Compatible with MCS®-51 Products

• 4K Bytes of In-System Programmable (ISP) Flash Memory

– Endurance: 10,000 Write/Erase Cycles

• 4.0V to 5.5V Operating Range

• Fully Static Operation: 0 Hz to 33 MHz

• Three-level Program Memory Lock

• 128 x 8-bit Internal RAM

• 32 Programmable I/O Lines

• Two 16-bit Timer/Counters

• Six Interrupt Sources

• Full Duplex UART Serial Channel

• Low-power Idle and Power-down Modes

• Interrupt Recovery from Power-down Mode

• Watchdog Timer

• Dual Data Pointer

• Power-off Flag

• Fast Programming Time

• Flexible ISP Programming (Byte and Page Mode)

• Green (Pb/Halide-free) Packaging Option

Product Specification

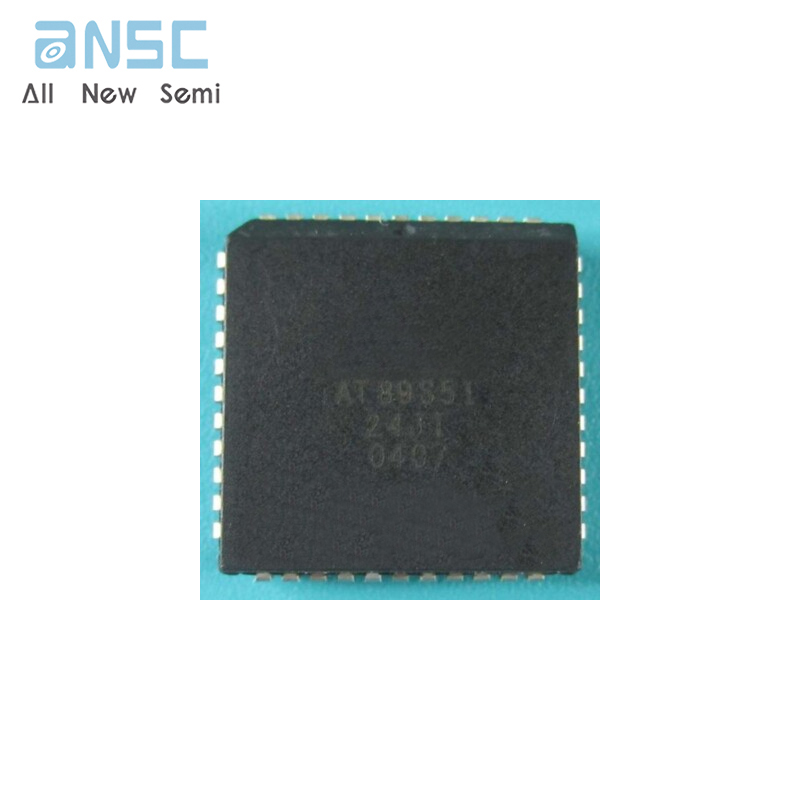

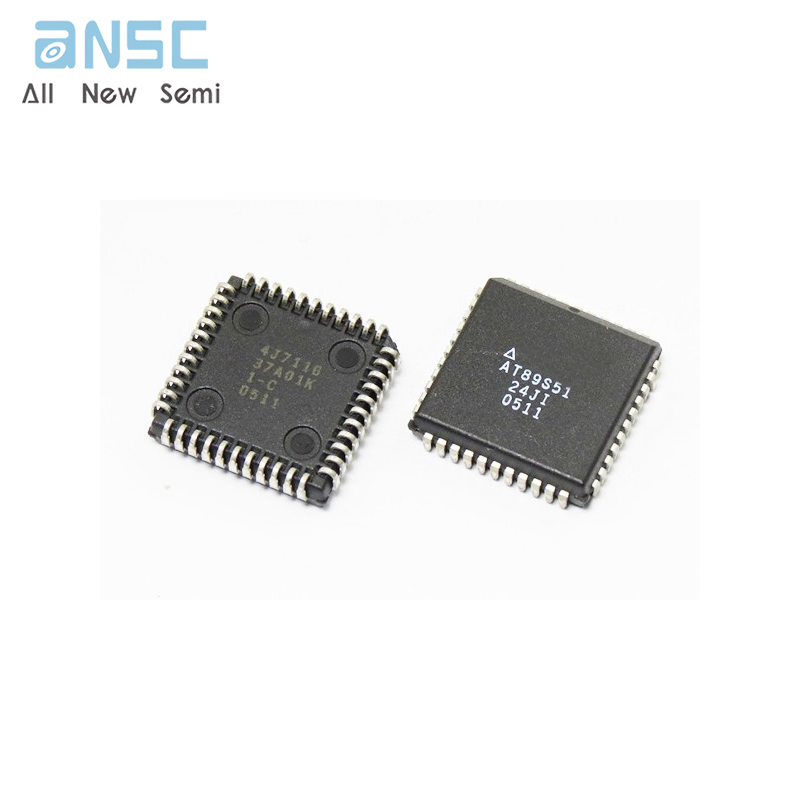

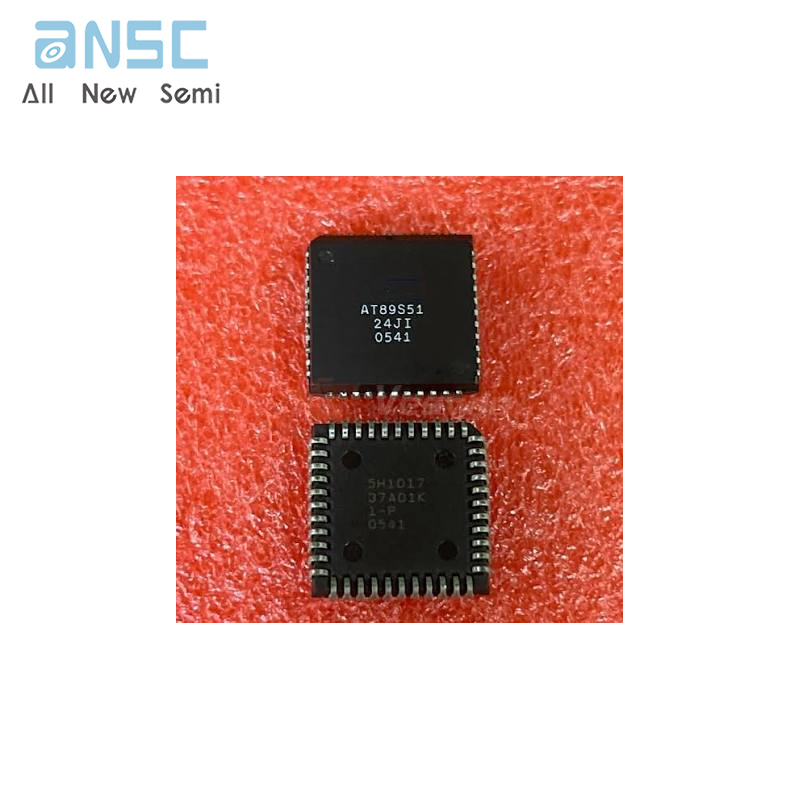

Product Photos

For more product information, please download the PDF
