Hot-selling and scarce EP2C5F256I8N Field Programmable Gate Array IC BGA spot stock

Product Features

■ High-density architecture with 4,608 to 68,416 LEs

● M4K embedded memory blocks

● Up to 1.1 Mbits of RAM available without reducing available logic

● 4,096 memory bits per block (4,608 bits per block including 512 parity bits)

● Variable port configurations of ×1, ×2, ×4, ×8, ×9, ×16, ×18, ×32, and ×36

● True dual-port (one read and one write, two reads, or two writes) operation for ×1, ×2, ×4, ×8, ×9, ×16, and ×18 modes

● Byte enables for data input masking during writes

● Up to 260-MHz operation

■ Embedded multipliers

● Up to 150 18- × 18-bit multipliers are each configurable as two independent 9- × 9-bit multipliers with up to 250-MHz performance

● Optional input and output registers

Product Specification

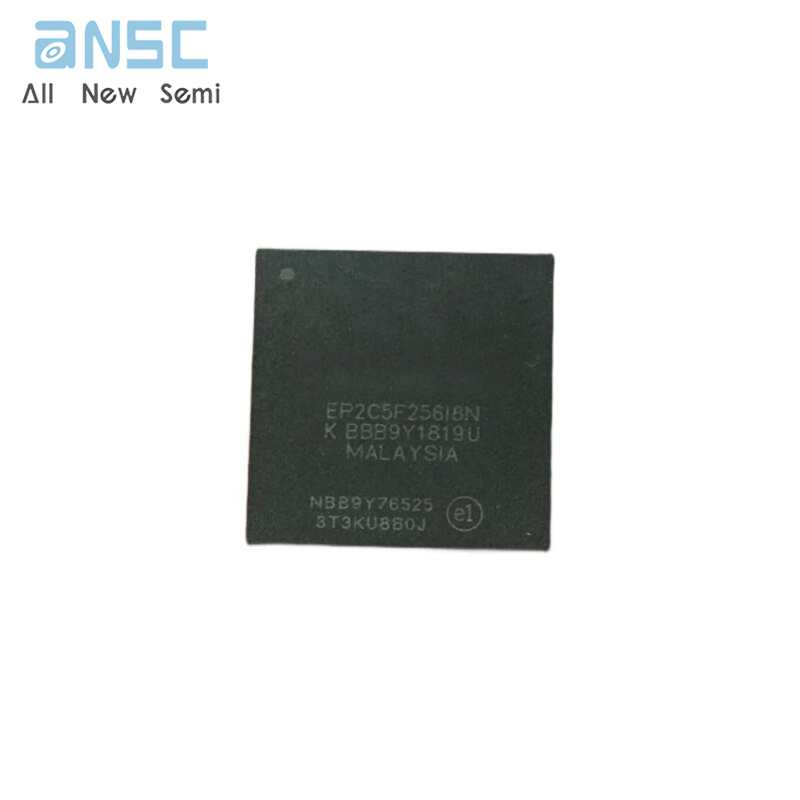

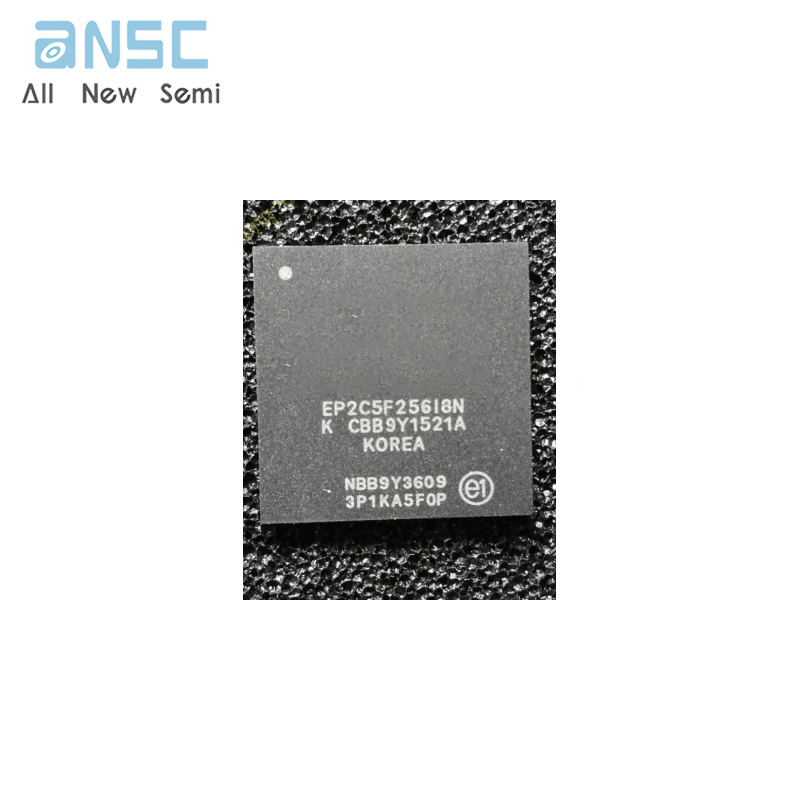

Product Photos

For more product information, please download the PDF
